Slitter Mounting Chassis Asm - Duplo DocuCutter CC-229 Service And Parts Manual

883-180-000A
NO P/N
1 883-180-010A
2 881-S02-000A
3 00M-000-0002
4 883-180-040A
5 881-111-010A
6 00E-M08-000E
7 00W-M05-000F

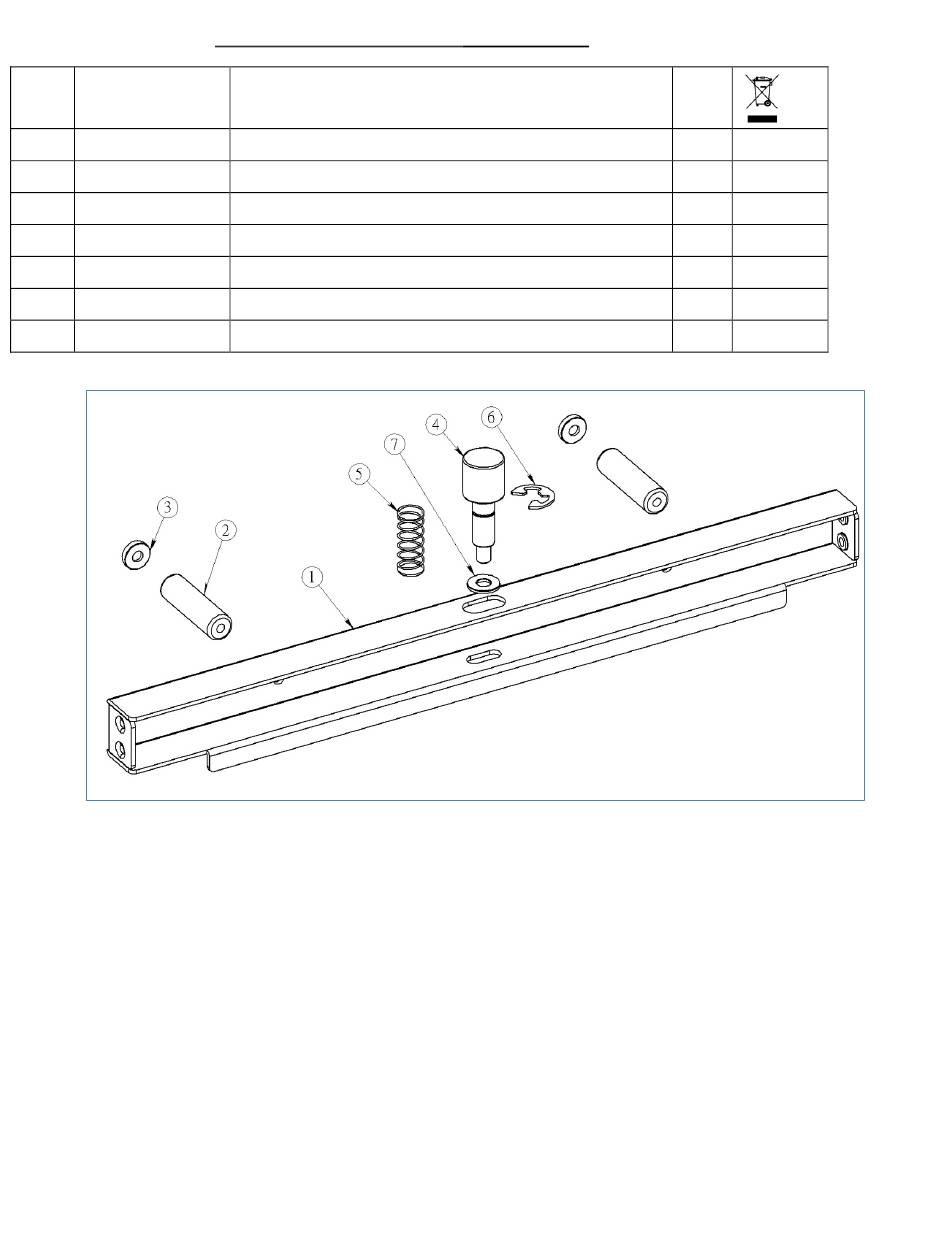

Fig. 17
Slitter Mounting Chassis
Chassis, Slitting Module Mounting , CC-229
Stud, Rear Safety Cover
Magnet, Rear Cover Position
Thumb Screw, Slitting Module Fastening
Spring, Compression, Slitting Module Fastening
E-Ring, 8mm
FLAT WASHER M5
Asm (Fig. 17)
Name
CC-229
- 47 -
Q'TY
1
2
2
1
1
1
1
