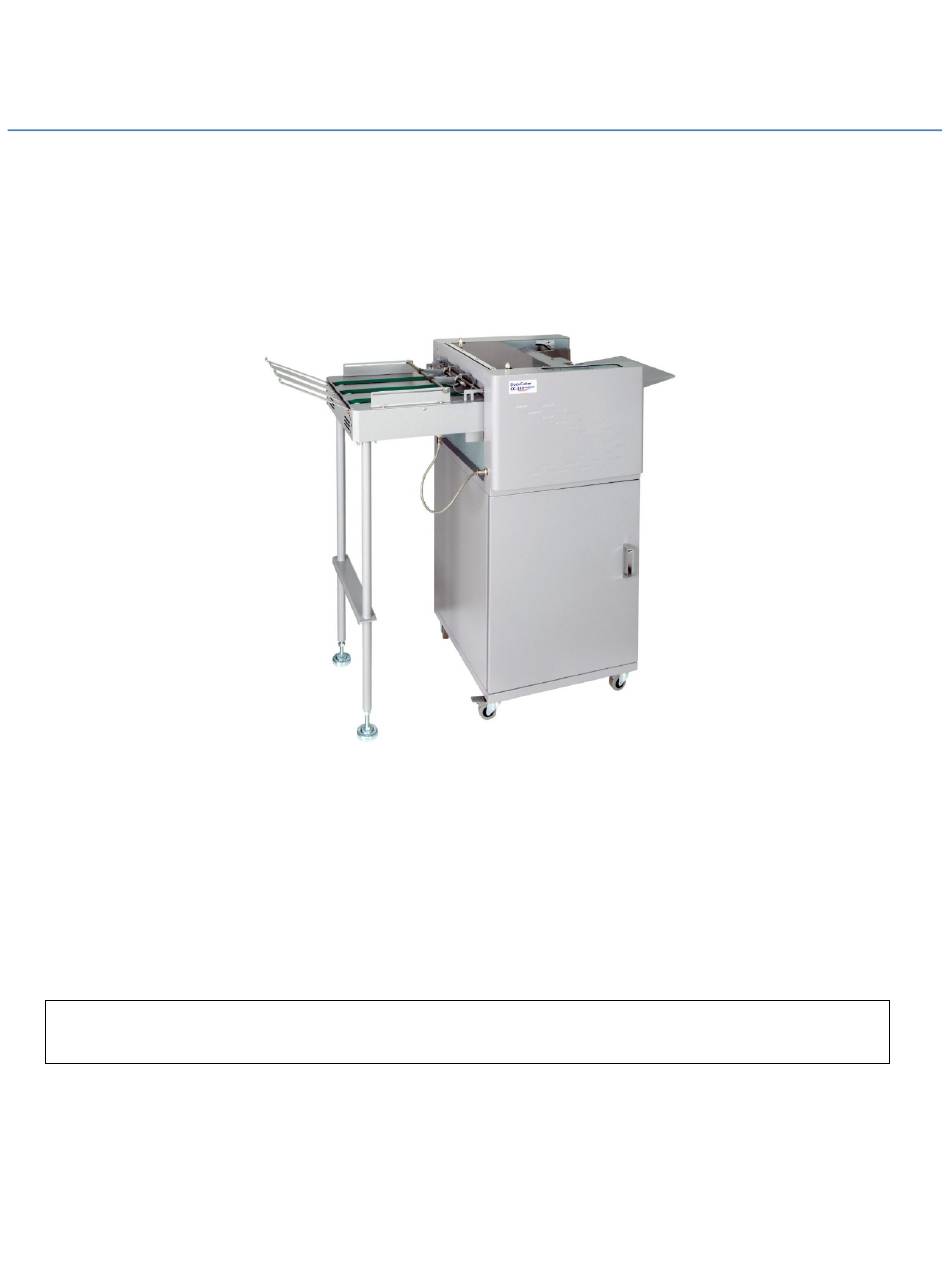

Ver. 20121121-A10
DocuCutterCC-330
Operational Manual
Before operating the machine, read this manual. Follow all safety precautions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DocuCutter CC-330 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Duplo DocuCutter CC-330

  • Page 1 Ver. 20121121-A10 DocuCutterCC-330 Operational Manual Before operating the machine, read this manual. Follow all safety precautions.
  • Page 2: Table Of Contents

    Table of Contents SAFETY PRECAUTIONS ................................ 3 Introduction ..................................4 Specifications ..................................4 Accessories ..................................4 Major Components and Assemblies ........................... 5 Control Panel ..................................7 Installation ..................................8 Setting Up Procedure ................................. 9 The Job selection ................................11 Registration Mark Position ............................... 15 Selecting a job ...................................
  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Always observe the cautions and warnings given below to prevent personal injury or property damage. Always pull the power supply plug out of its outlet before removing jammed paper. Do not use supply voltage other than the specified voltage. Do not insert pins, wire or other foreign objects into the machine.
  • Page 4: Introduction

    INTRODUCTION The Docucutter CC-330 is designed to simplify business card, photo and post card cutting in letter size which printed by digital press, color laser printer or inkjet image printer in one pass. SPECIFICATIONS Paper Size LT, LG, LD, 12 x 18 and 13 x 19...
  • Page 5: Major Components And Assemblies

    MAJOR COMPONENTS AND ASSEMBLIES Power Switch Control Panel Extended Tray Top Cover Waste Compartment Door Machine Stand Page 5...
  • Page 6 Stack Tray Auxiliary Roller Side Guide Adjustment Knob 10 Feed Tray Pressure Adjustment 11 Feed Rollers Adjustment Knob 12 Feed Rollers 13 Slitter Cassette 14 Slitting Registration Adjustment 15 Stacking Guides Page 6...
  • Page 7: Control Panel

    CONTROL PANEL Keys Function • Start and Stop the cutter • Change job • Toggle between “Normal Mode” and “Turbo Mode” (Paper Weight Setting Mode) • Select batch count • Pre-feed (Mark Reader Calibration Mode) • Jog forward • Increment settings by 0.1 mm when press. •...
  • Page 8: Installation

    INSTALLATION 1. CUTTER INSTALLATION Stands Pins Place the machine on the stands. Make sure to align the pins on the stand to the holes on the base plate of the machine. The door of the stands should face the operator side. Safety Switch •...
  • Page 9: Setting Up Procedure

    SETTING UP PROCEDURE Thumbscrew knob To set the width of paper, loosen thumbscrew Scales knob on the side guide and slide to position. Use scales as reference point. Paper feed guide Fan paper before loading. This will reduce static and toner adhesion due to printing. For best result, the paper stack should be flat.
  • Page 10 Adjust feed rollers so they are about 0.5” away from the edge on each side of the paper. Page 10...
  • Page 11: The Job Selection

    THE JOB SELECTION DocuCutter CC-330 offers 7 different types predefined job selection from #01 to # 07 and 6 programmable job #08 to #13. The standard cassette has a slit size of 3.5” x 3 rows for business card. Optional cassettes are available. See below to select the proper slitter and program for your application.
  • Page 12 Job Layout Page 12...
  • Page 13 Page 13...
  • Page 14 Page 14...
  • Page 15: Registration Mark Position

    REGISTRATION MARK POSITION Registration mark will compensate for print shifting. See below for registration mark position. Margin Feed Center SELECTING A JOB Actions Display Example #01BUSINESS CARD NM 2”x3.5” W/G 23 Turn on the power. Previous job will appear. #04 PHOTO Press until the desire job is displayed.
  • Page 16: Batch Count Function

    BATCH COUNT FUNCTION Batch count function is use to automatically stop the machine after a set count of paper has been fed. Actions Display Example #04 PHOTO Press until the desire batch count number NM 8”x10 W/G 23 appears. The batch count will increment by 10 every time the button is pressed.
  • Page 17: Turbo And Normal Mode

    #10L000.0M00.0G00.0 Hold for 4 seconds. “Edit” will appear indicating machine in “Program Mode”. #10L127.0M00.0G00.0 Hold and press to increment or to decrement change finished length in mm. #10L127.0M12.7G00.0 Hold and press to increment or to decrement change top margin in mm #10L127.0M12.7G06.0 Hold and press...
  • Page 18: Reset Counter

    Setting Paper Weight 1, 2 120 – 210 (gsm) 211 – 300 (gsm) 4, 5 301 – 350 (gsm) (Normal Mode) RESET COUNTER Hold simultaneously to reset counter to 0. CLEAR JAM Incase jam occurs in the machine follow these steps to clear jam. 1.
  • Page 19: Troubleshooting

    TROUBLESHOOTING Error Troubleshooting Out of paper Feed tray empty miss feed 1. Adjust the feed tray tension 2. Side guide too tight. Adjust side guide. 3. Fan the paper and re load the paper into hopper jam sensor 2 1. Remove the paper jam by pulling toward stacking tray. 2.
  • Page 20: Optional Conveyor

    OPTIONAL CONVEYOR Items List 1 x Conveyor 1 x Ramp 1 x Stacking Rollers Assembly 1 x Interface Cable 1 x Stand Support 4 x Studs 4 x Socket Cap Screws (M6x12) 6 x Lock Washers (M6) 4 X Shoulder Washers 2 x Spacer 4 x Machine Screws (M4 x 12) 2 x Machine Screws (M5 x 35)
  • Page 21 1. Remove the side covers. Side Cover 2. Install the 4 studs as shown using Socket 4 Cap Screws (M6x12) and 4 Lock Washers (M6). 3. Hook the conveyor onto the studs. 4. Use 2 spacers and Machine Screws (M5 x 35) Right Side Spacer to secure the conveyor on the left and right side located below the conveyor.
  • Page 22 7. Install the ramp using the key holes. 8. Install Stack Rollers assembly using 2 thumbscrews as shown onto conveyor rails. Adjust roller distance depending on paper finish size for better stacking. Thumbscrews Conveyor Rails 9. Install stand support using 2 Hex Bolt (M6 x 30), 4 washers (M6), 2 Lock Washer (M6) and 2 Nuts (M6) and secure stand support to the stand.
  • Page 23 Duplo USA Corporation 3050 S. Daimler St, Santa Ana, CA 92705 www.duplousa.com Page 23...
