Sensor Trouble Shooting Procedure; Sensor Location And Trouble Shooting - Duplo DocuCutter CC-229 Service And Parts Manual

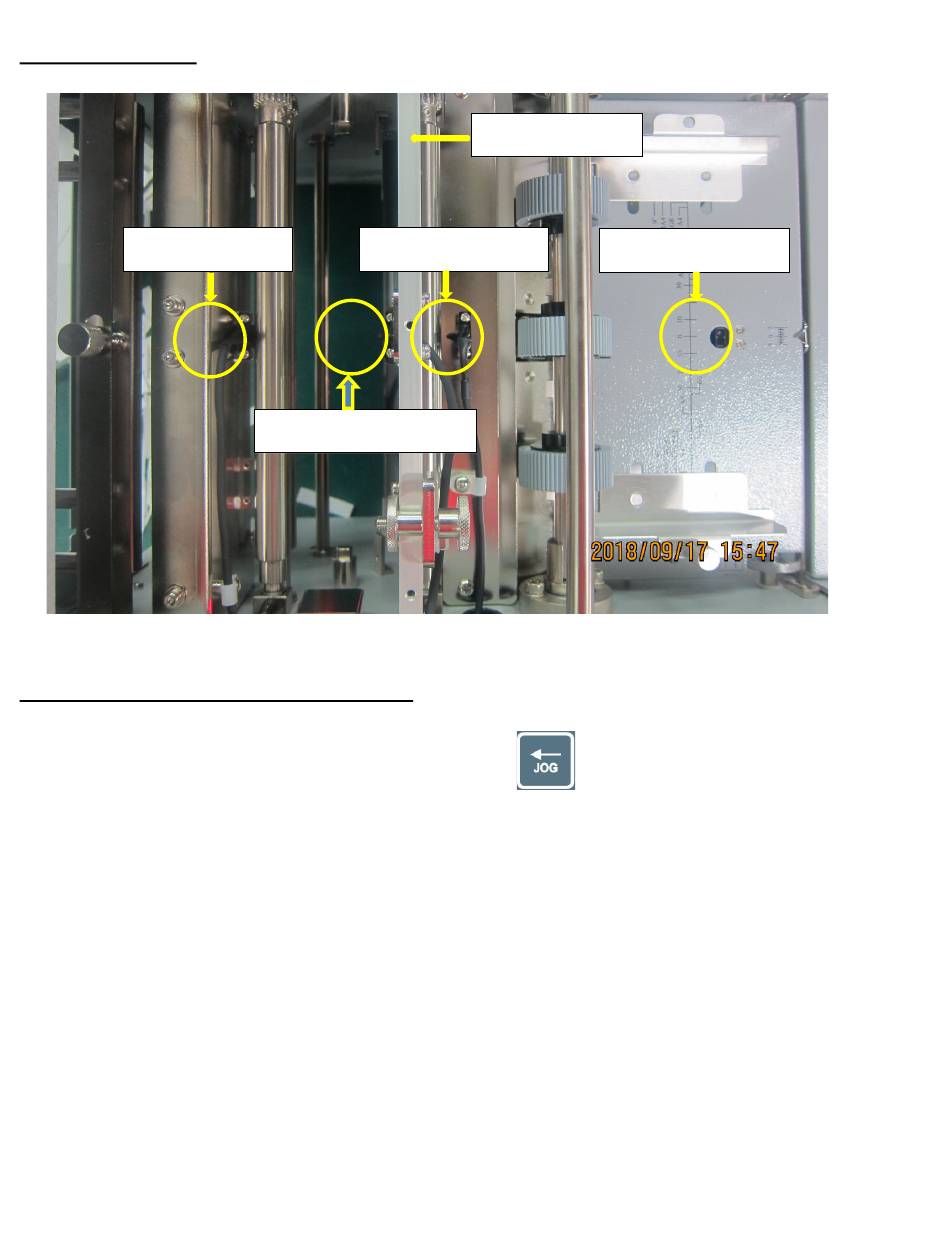

Sensor Location
S5 Cutter Sensor

Sensor Trouble Shooting Procedure

1. Insert a piece of paper into 1
reaches to S2, S3 and S5, the sensor LED will be on; if not, the sensor is faulty.
2. S4 is die module home position index sensor, if it is faulty, "Round Corner Sensor Error" will be showing
on display
3. S6 is cutter home position index sensor, if it is faulty, "Cutter Error" will be showing on display.
S2 Transport Sensor
S3 Mark/Margin Sensor
st
pick-up roller, press
st
1 Pick Up Roller
S1 Feed Tray Sensor
to move the paper forward, while paper
- 10 -
