Die Module Fine Tuning Asm - Duplo DocuCutter CC-229 Service And Parts Manual

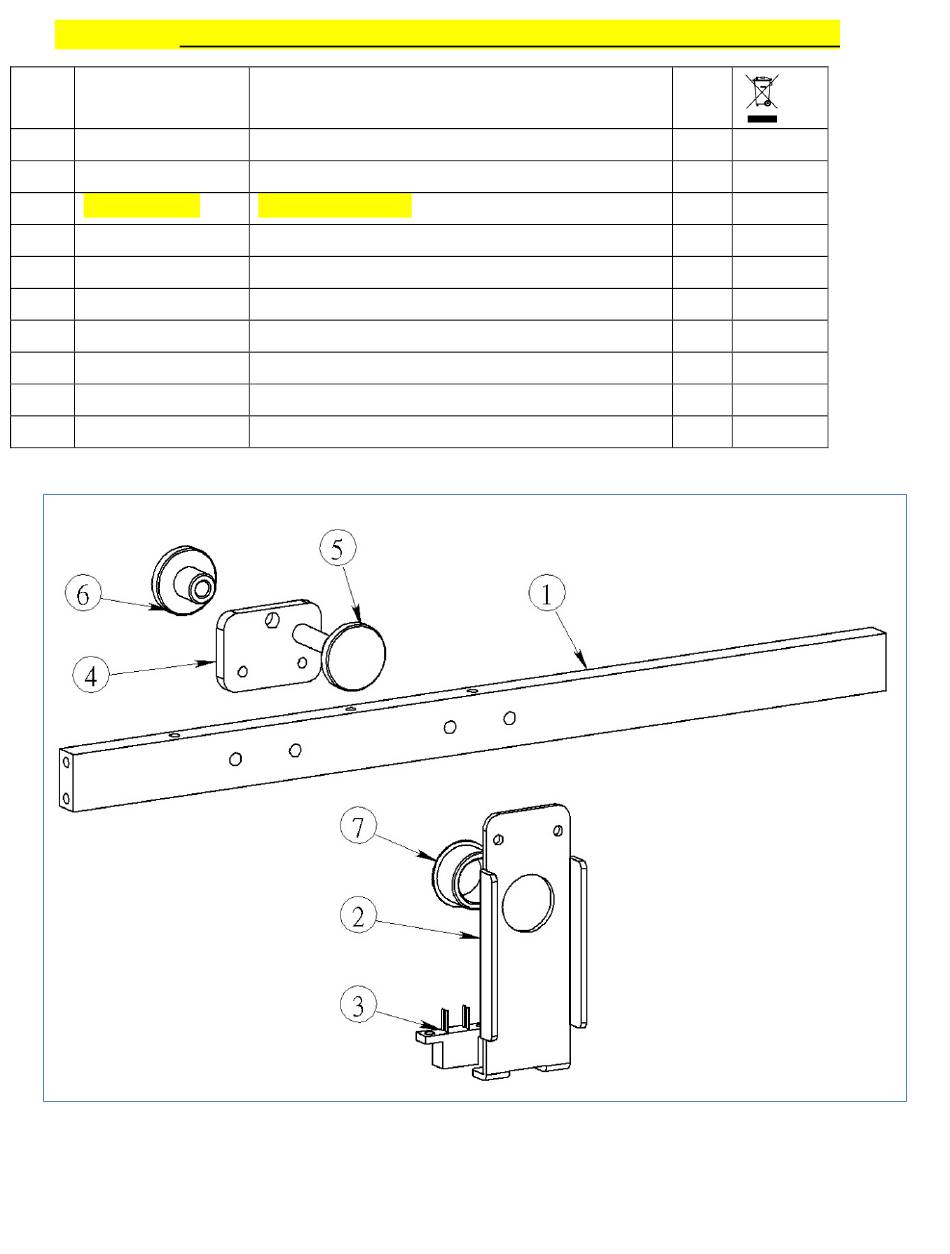

883-140-000A Die Module Fine Tuning Asm (Fig. 13) {Need to add a Mark Reader}
NO P/N
1 883-140-010A
2 883-140-020A
883-070-060A
3
00S-00E-ESB5
00W-883-2463
2PH-716-102F
4 883-140-040A
5 883-140-050A
6 883-14—060A
7 00B-0NB-1419
Fig. 13
Name
Bar, Die Module Fine Tuning
Bracket, Die Module Sensor Mounting
Asm, Paper Sensor
Sensor, EE-SB5
Wire, 63cm, 24 AWG
Housing, Female, 2-pin
Bracket, Die Skew Adjustment
Thumb Screw,
Nut, Thumb Screw, Skew Adjustment
Bushing, NB-1419
- 41 -
Q'TY
1
1
1
1
1
1
1
1
1
1
