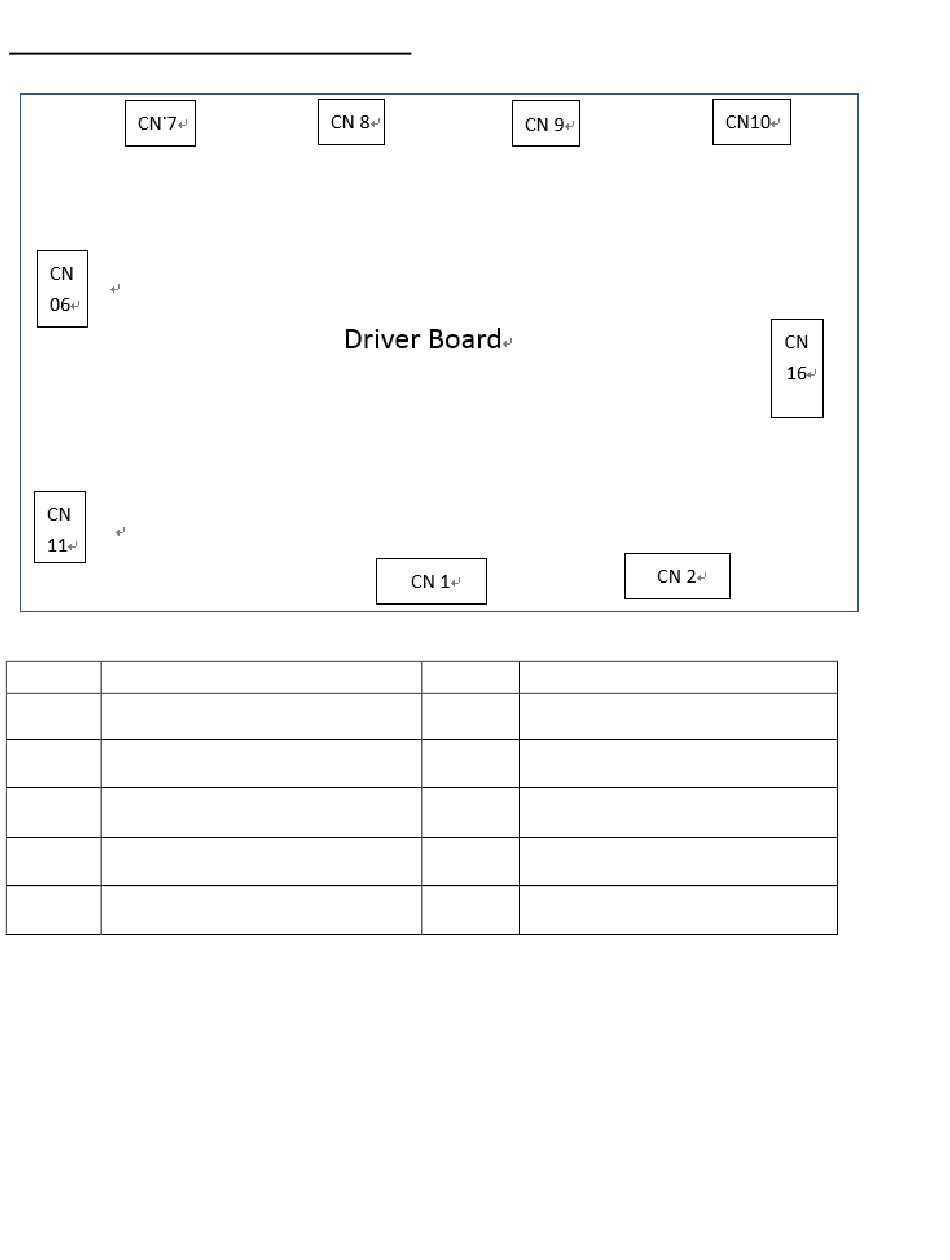

Electric Connections – Driver Board
Connector
CN1
16-pin, Main Board CN2
CN2
10-pin, Main Board CN6
CN6
4-pin, 24V DC Power Supply
CN7
4-pin, Feed Motor
CN8
4-pin, Transport Motor
Connects to
Connector
CN9
4-pin, Die Module Motor
CN10
4-pin, Cutter Motor
CN11
16-pin, LCD Display
CN16
10-pin, Control Panel Board
- 11 -
Connects to
