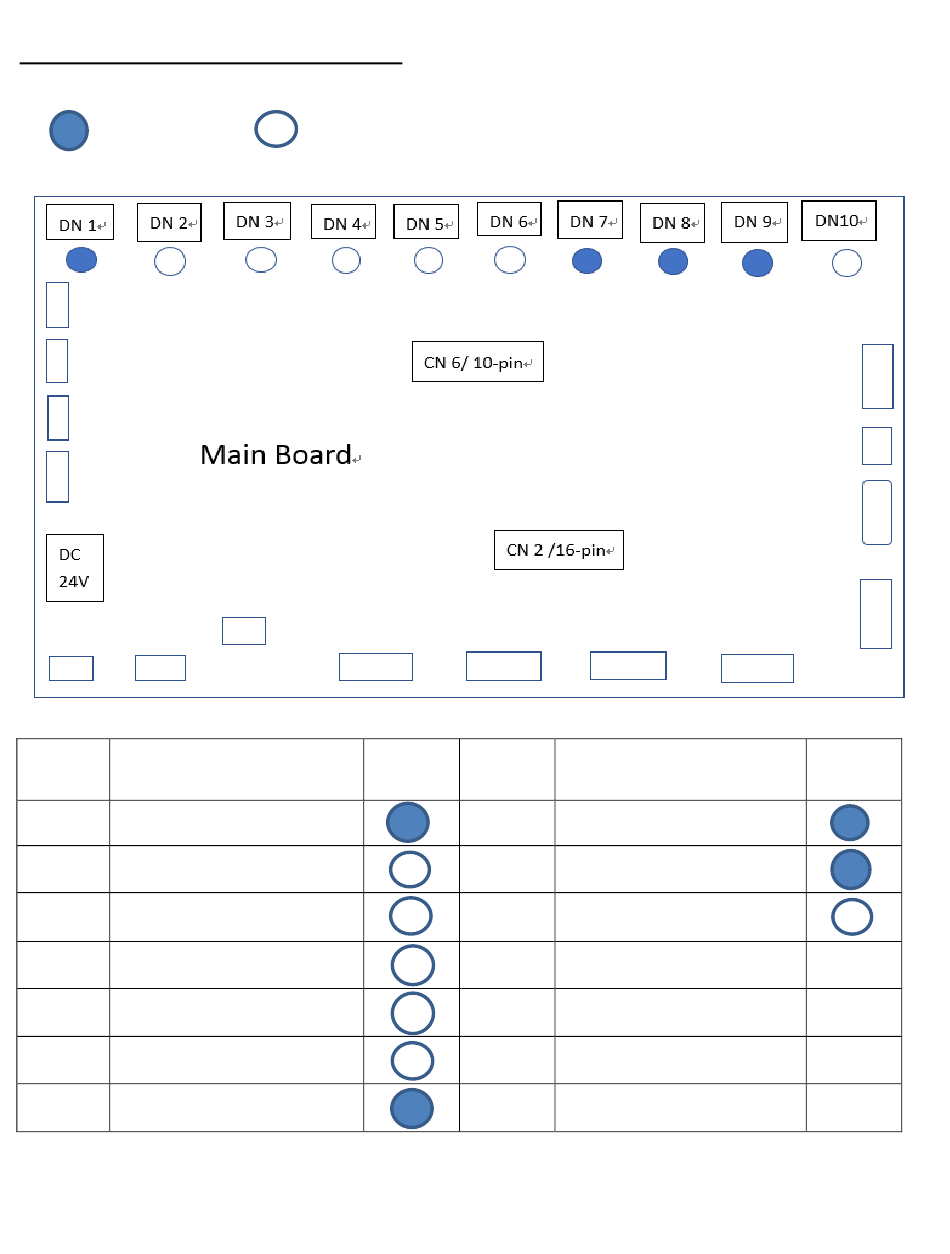

Electric Connections – Main Board
LED On
Connector Connects to
DN1 Feed Tray Sensor S1
DN2 Transport Sensor S2
DN3 Top Margin/Mark Reader S3
DN4 Die Home Position Sensor S4
DN5 Cutter Sensor S5
DN6 Cutter Index S6
DN7 Top Cover Switch S7
LED Off while power is on and feed tray has paper
LED Connector
On/OFF
- 9 -
Connects to
DN8 Waste Bin Switch S8
DN9 Rear Cover Switch S9
DN10 Not in use
CN2 Driver Board CN1
CN6 Driver Board CN2
CN4 24V Power Supply
LED
On/OFF
