Rear Upper Transnsport Roller Asm - Duplo DocuCutter CC-229 Service And Parts Manual

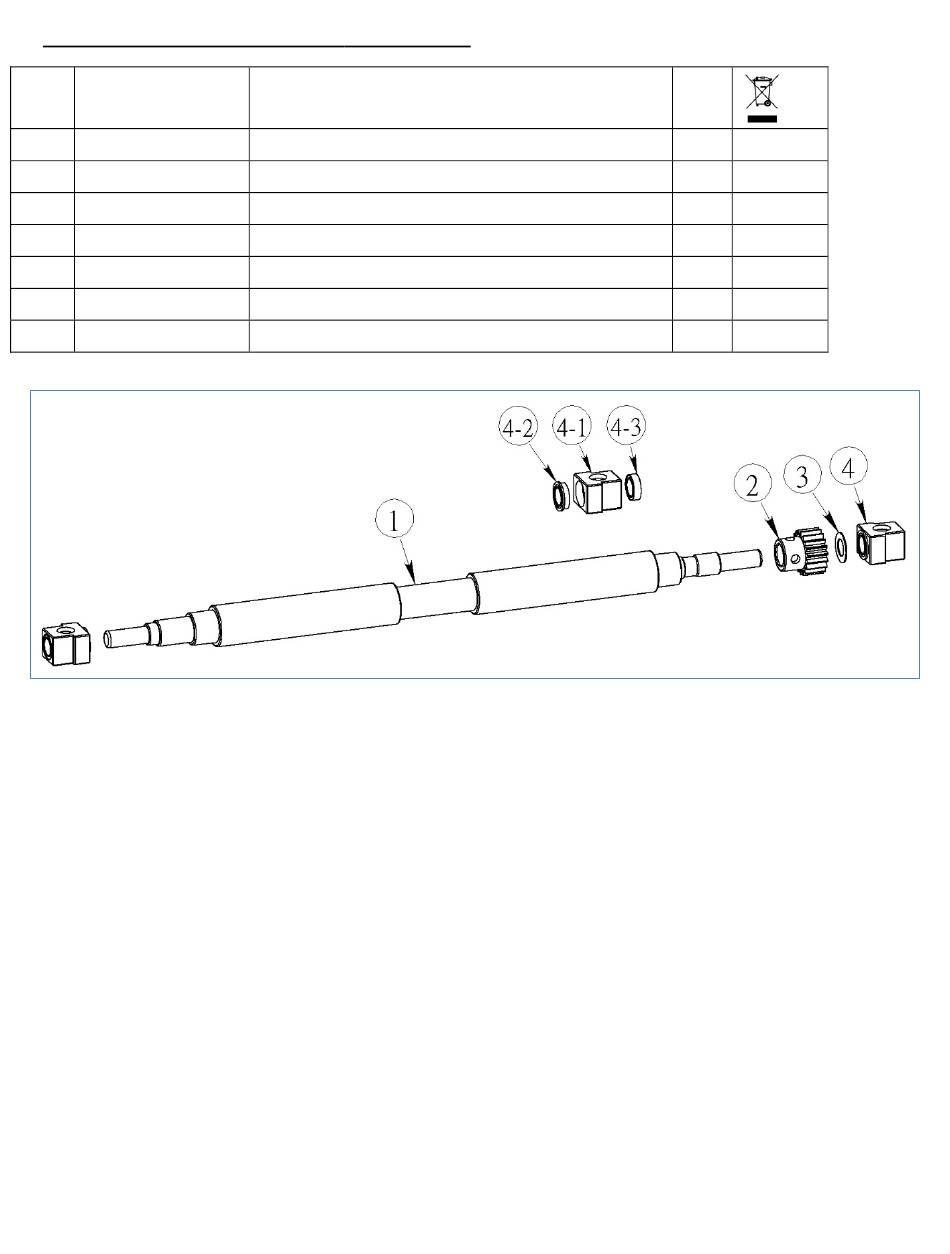

Rear Upper Transnsport Roller Asm (Fig. 12)
NO P/N
1 881-M01-000B
2 00G-M10-1910
3 881-L03-000A
4 883-120-040A
00H-000-1280
00B-00F-1280
00B-000-1280
Fig. 12
Name
Roller, Transport
Gear, M1.0, 19T, ID10
Nylon Graphite Gasket, OD14, ID8.2
Rocker Asm
Housing, 1280 Ball Bearing, Transport Rocker
Ball Bearing, LF-1280ZZ
Ball Bearing, L-1280ZZ
- 40 -
Q'TY
1
1
1 Nylon
2
1
1
1
