6.4 Adjustment of the XENO-
SENSIV sensor
For the adjustment of the XENOSENSIV-
sensor a master sensor is necessary.
Procedure:
1. Fix the sensors to the adapters
(chapt.6.3).
2. Insert the two sensors on to the mountings
next to the coupler socket in the test
chamber.
3. Connect the sensors to the XENOSENSIV
sensor sockets (1,2) of the calibration ad-
apter (fig. 35).
Please take care that the XENOSENSIV
sensor sockets of the calibration adap-
ter are assigned to the corresponding
sensors.
4. Then connect the calibration adapter with
the plug-type connector (3) to the coupler
socket in the test chamber.
5. Set switch on the calibration adapter to posi-
tion "SST" to calibrate the black standard
temperature or to E for the irradiance.
6. Start calibration program.

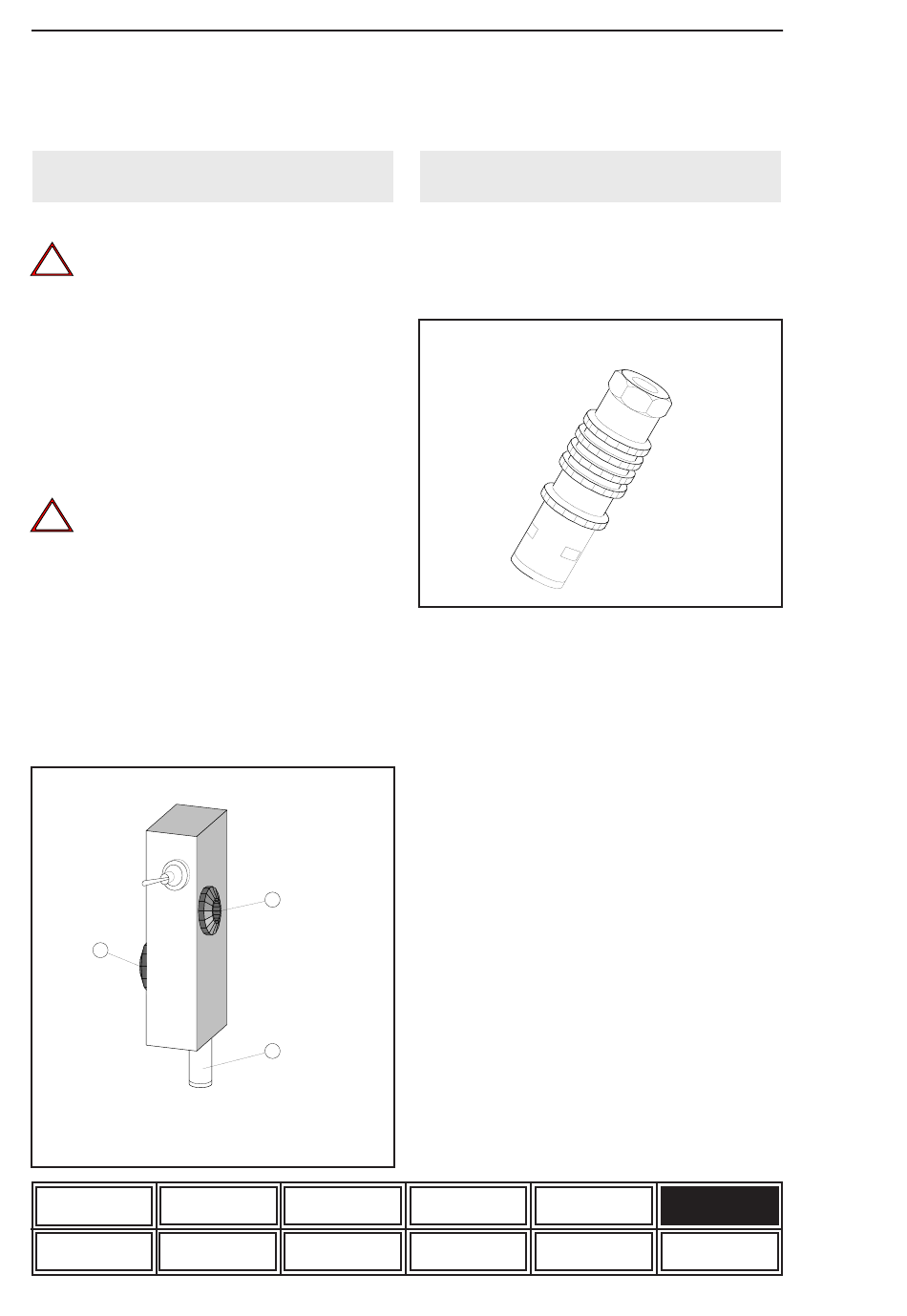

Figure 35: Calibration adapter
S S T
E
1
1 Master sensor socket
2 XENOSENSIV sensor socket
3 Plug-type connector
ALPHA and HIGH
Safety instructions
ENERGY features
Function Program example
Page 44
6.4.1
If no XENOSENSIV sensor is fitted, the coupler
socket in the test chamber is to be secured with an
adapter plug.
2
3
Unit set-up Unit description
Setting up tests Care and cleaning
Insertion of the end plug
(fig. 36)
Figure 36: End plug
