5.1.2 Printer (fig. 13)
The stored programs and the measured data for
the running program can be printed out by the ther-
mal printer. By pressing the „PRINT"-key during
the running program the printer parameters are
indicated on the display:
Equipment data
Program parameter
Current parameter

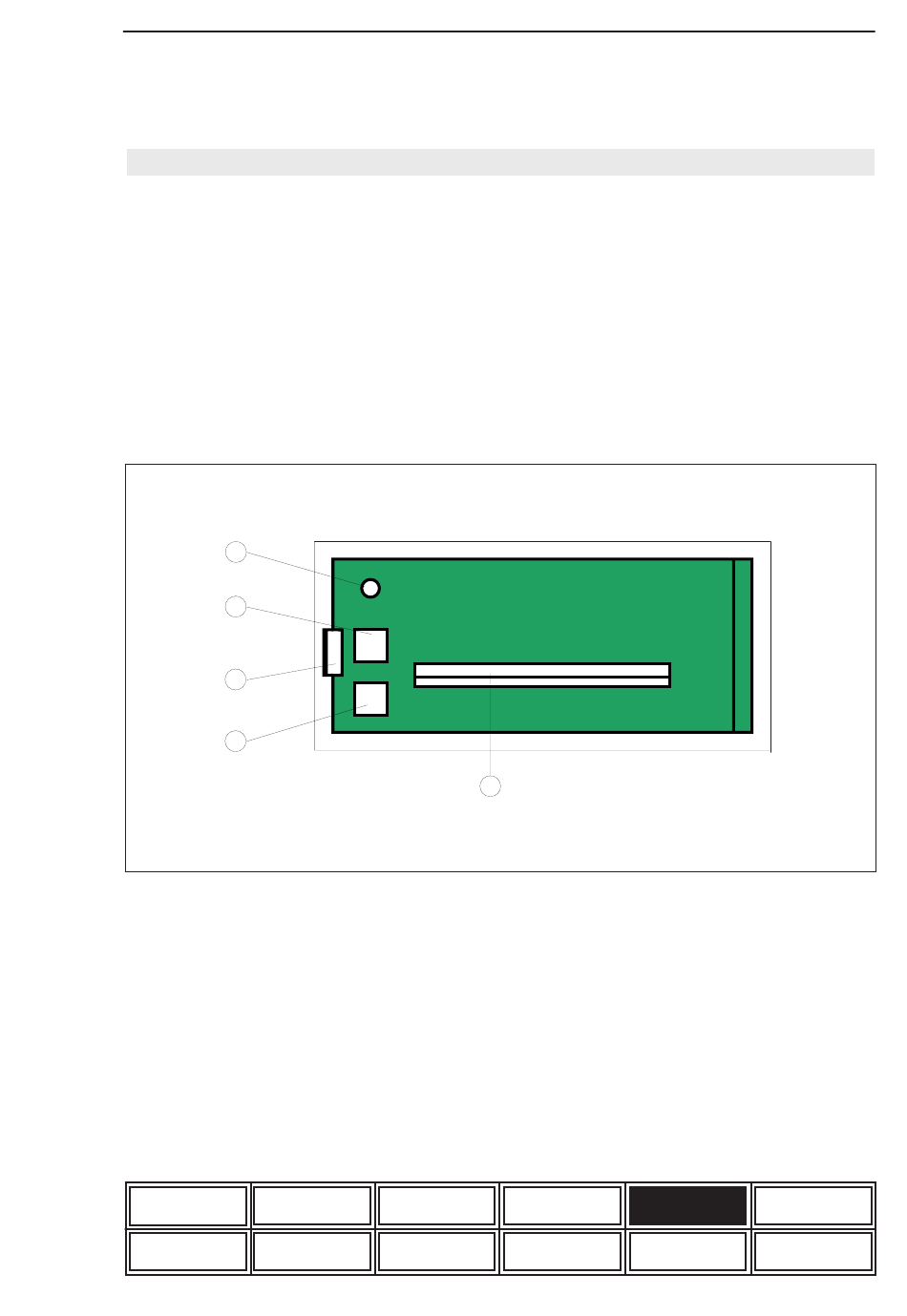

Figure 13: Printer
1
2
3
4
1 LED „ALARM"
2 Key LINE FEED/ENTER
3 Locking latch
LED-Alarm:
Lighting up of the LED signals the end of the
printing paper.
Line Feed/Enter:
This key has two functions. During operation „Line
Feed" is used for manual paper transport, in the
menu program, „Enter" is used to take over and
store the parameters chosen with „Select".
By pressing the locking latch to the right the
frontplate swings out. This provides access to the
paper roll for exchange.
ALPHA and HIGH
Safety instructions
ENERGY features
Function Program example
Operating manual XENOTEST ALPHA / ALPHA HIGH ENERGY
The requested parameters are entered via the
keyboard of the control panel. When selecting
menu item 3 „Current parameters" the printout
interval in minutes can be entered via the keyboard.
= 1
= 2
= 3
5
4
5
Menu/Select
This key has two functions. If this key is depressed
for more than 3 seconds during operation the
printer will change to the menu program allowing
modification of the printer parameters. In the menu
program "Select" is used to chose the various
equipment parameters.
Paper tear-off bar :
To tear off the paper strap, pull paper quickly
upwards from one side to the other.
