Operating manual XENOTEST ALPHA / ALPHA HIGH ENERGY
3.2.6 Space requirement (fig. 1)
Dimensions:
(Width x depth x height):
900mm x 780mm x 1800mm
For operating,- maintenance,- and repair work
please observe the necessary space requirements.

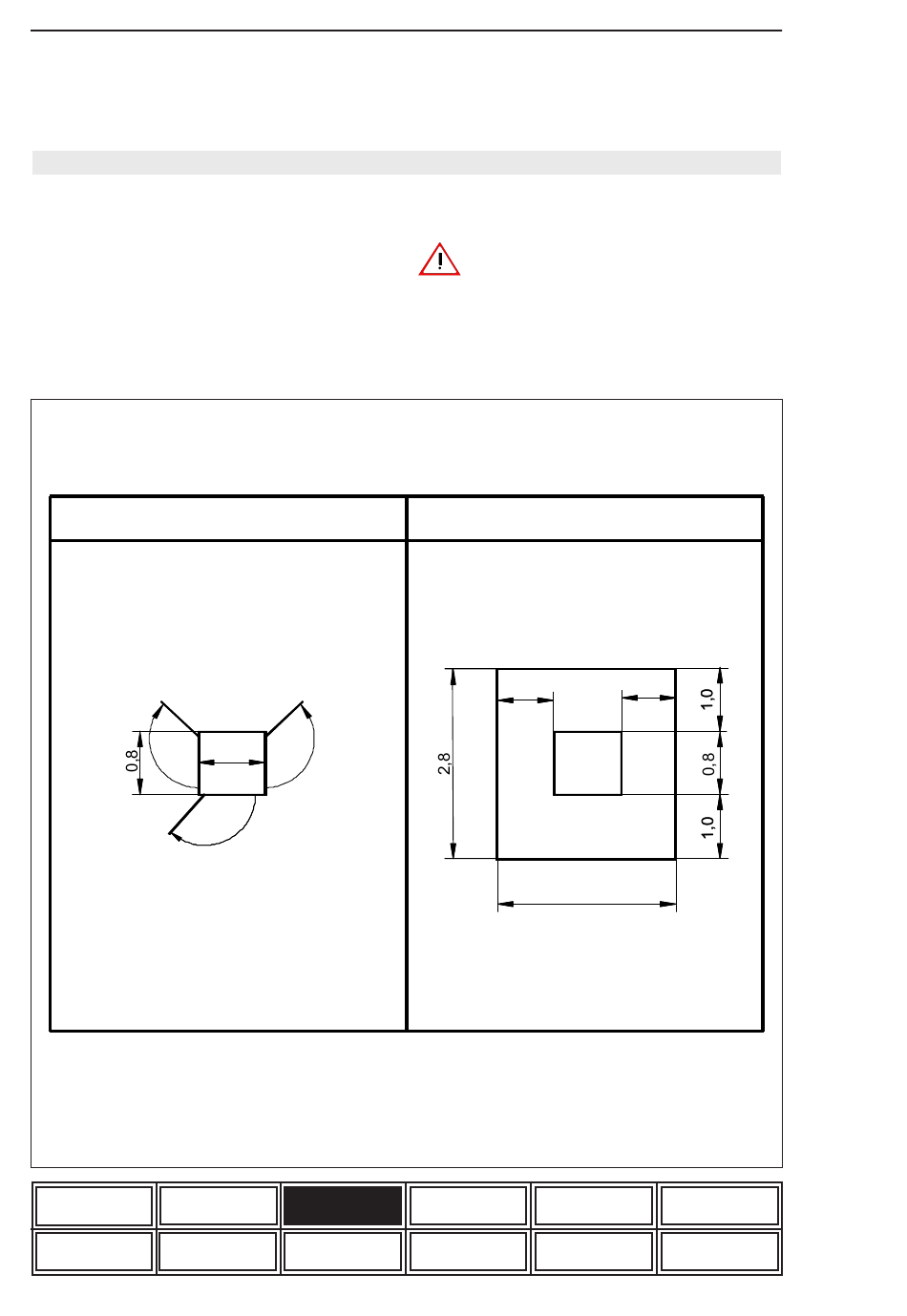

Figure 1: Space requirement
Set-up area
H
H
x x
X = XENOTEST ALPHA LM and ALPHA HIGH ENERGY
H
= unit height
x
ALPHA and HIGH
Safety instructions
ENERGY features
Function Program example
Page 14
=1,8
0,9
0,9
x
x
H
= minimum laboratory height
R min
Unit set-up
Setting up tests
For adequate cooling of the xenon lamp,
take care that the air inlets and outlets at
the top and back side of the equipment
are not obstructed. Allow for the neces-
sary space for operation, maintenance
and repair of the equipment.
Service area
H R min =2,5
H R min =2,5
1,0
1,0
x
x
2,9 2,9
Unit description Options und accessory
Care and cleaning Maintenance
ATLAS
1,0 1,0
Dimensions in m
