5.1.1 Rain and humidity function (fig. 12)
The water tank (1) is filled through a water inlet
socket (2). The overflow is regulated by a level
switch (3), water shortage is indicated on the
display by a solenoid switch (4). A diving pump
(5) is located in the water tank which supplies the
two humidifiers (6). The supply amount is
adjustable by a valve (7).

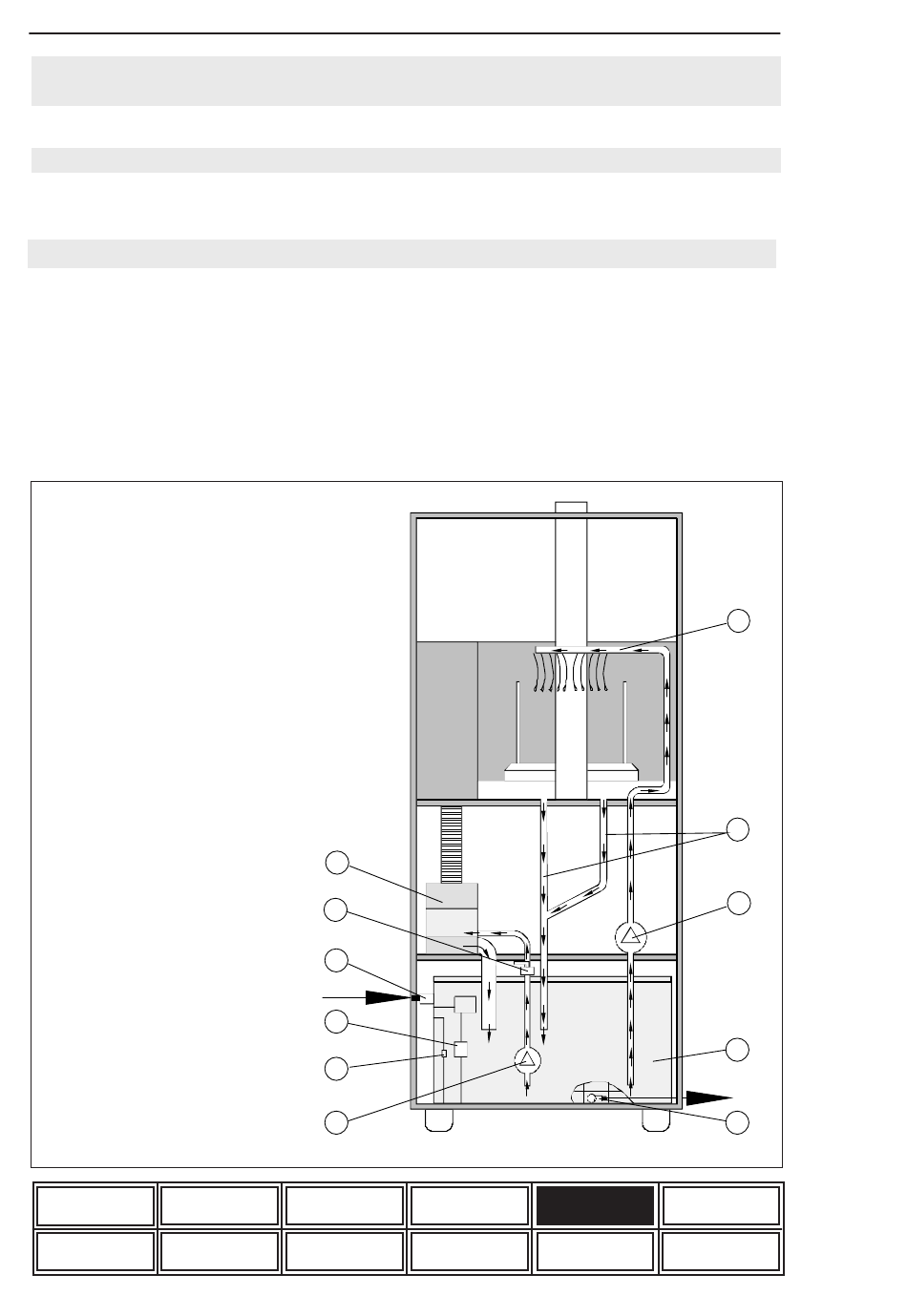

Figure 12: Water circuit
1 Water tank
2 Water inlet socket
3 Level switch
4 Solenoid switch
5 Diving pump
6 Humidifier
7 Valve
8 Rain pump
9 Rain ring bar
10 Test chamber return pipe
11 Water outlet socket
ALPHA and HIGH
Safety instructions
ENERGY features
Function Program example
Page 26
The rain pump (8) supplies water to the rain ring
bar (9). Excess water is returned to the water
tank via a return pipe (10) or evacuated outside.
The water tank can be emptied through the water
outlet socket (11).
