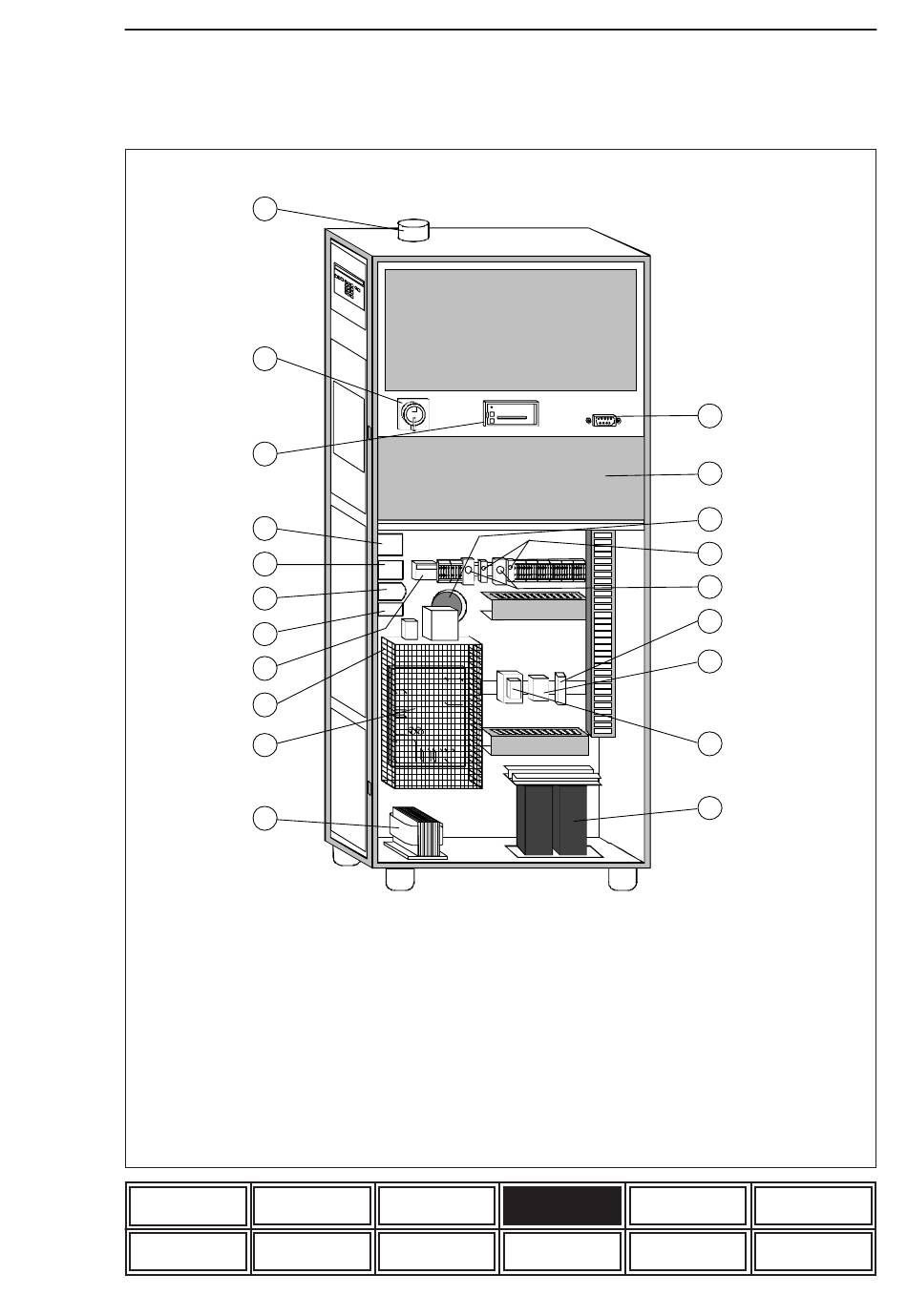

Figure 8: Right hand apparatus side
20
1
2
5
6
7
8
18
9
10
11
Before opening the lateral two-leaf doors disconnect unit from the mains.
Unplug the connection socket and secure against replugging!
1 Main switch
2 Thermo printer
3 Interface RS 232 / RS485
4 Test chamber
5 Transformer humidifier
6 Control transformer
7 Mains voltage interference filter
8 Fuse base of the control voltage
9 Protective wire mesh
10 Power supply unit for lamp
ALPHA and HIGH
Safety instructions
ENERGY features
Function Program example
Operating manual XENOTEST ALPHA / ALPHA HIGH ENERGY
0
12 3 45 6
11 Mains transformer
12 Lamp choke (not HIGH ENERGY)
13 Main contactor
14 Heating relay
15 Control test chamber fan
16 Lamp fuse (2 pcs.), 25A
17 Heating fues (2 pcs.), 10A
18 Operating hours meter
19 Air intake for lamp cooling
20 Exhaust air socket lamp cooling
