Operating manual XENOTEST ALPHA / ALPHA HIGH ENERGY
4.2 Right-hand apparatus side ALPHA and HIGH ENERGY (fig. 8)
The lateral two-leaf doors of the unit
must only be opened by XENOTEST, or
an authorized customer service engineer
or an electrical specialist.
Contact with live parts of a unit connec-
ted to the mains may involve electrical
shock.
Before opening the lateral two-leaf doors
disconnect unit from the mains. Unplug
the connection socket and secure
against replugging!
The main switch (1) (fig.7) is located on the upper
left of the unit. Use this switch to disconnect the
unit from the mains in case of trouble.

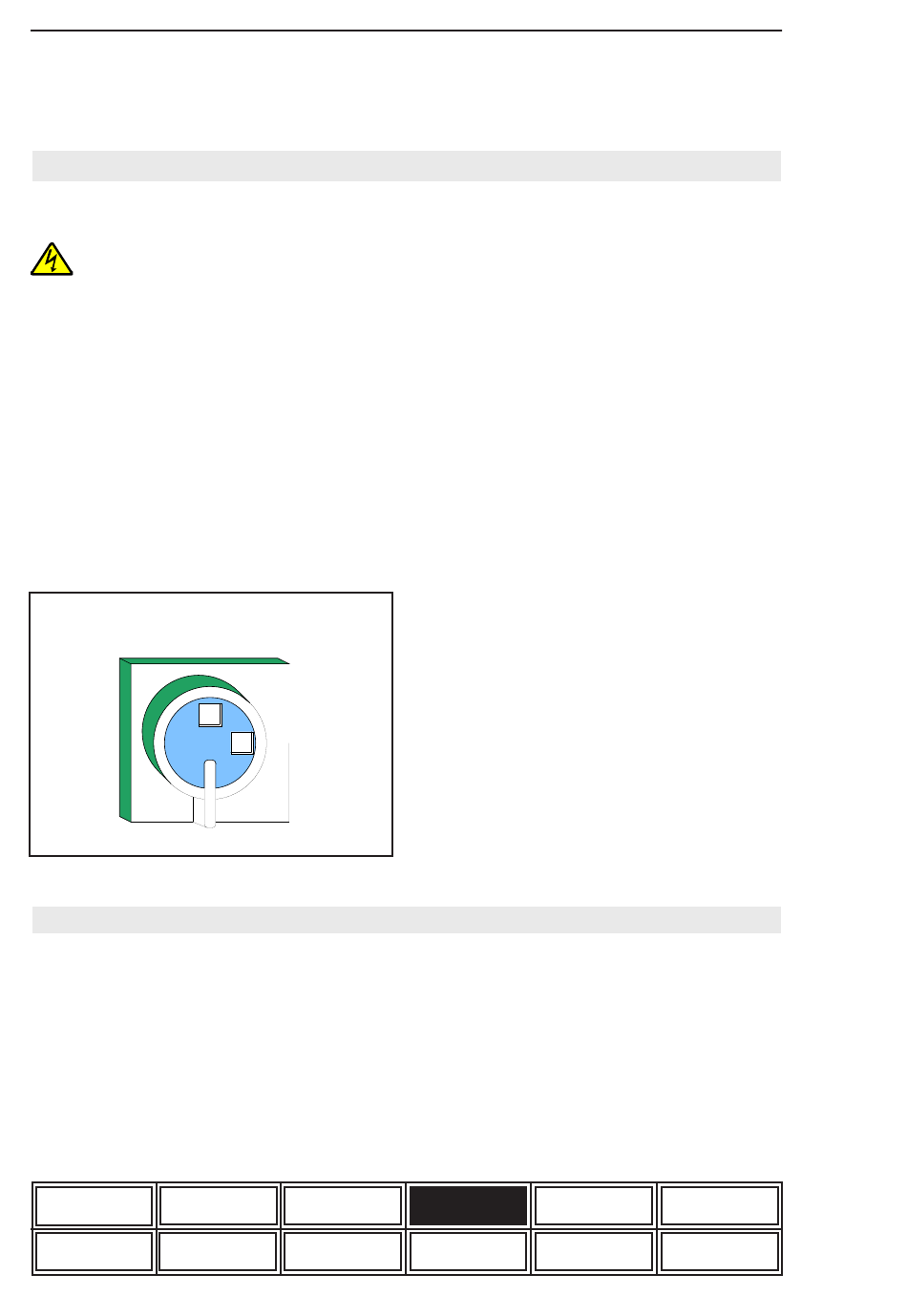

Figure 7: Main switch
4.3 Apparatus top ALPHA and HIGH ENERGY (fig. 8)
The exhaust air flow of the lamp is evacuated at
the top of the unit via an exhaust air socket
ALPHA and HIGH
Safety instructions
ENERGY features
Function Program example
Page 20
0
1
Unit set-up
Setting up tests
Data output:
Data of stored programs as well as current measu-
ring values can be printed-out by a thermoprinter
(2). The interface (3) on the right-hand side of the
main switch provides for the data output and ex-
ternal computer control.
Electrical components:
The mains transformer of the humidifier (5), the
control transformer (6), a mains voltage inter-
ference filter (7) and the fuse base of the con-
trol voltage (8) are located below the test cham-
ber (4).
The power supply unit (10) of the lamp is moun-
ted below a protective wire mesh (9).
The mains transformer (11) and the lamp choke
(12) (not HIGH ENERGY unit) are located below
the power supply unit. The heating relay (14) is
seated next to the main contactor (13) and the
control of the test chamber fan (15). There is a
25 amps lamp fuse (16) protection and a 10 amps
heating fuse (17) protection. The operating hour
counter (18) records the operating time of the
equipment.
Ventilation:
The air intake for the lamp cooling (19) passes
through a filter pad in the equipment door.
(20) to the open. (note figure 10 and 11,
ventilation schemes).
