Operating manual XENOTEST ALPHA / ALPHA HIGH ENERGY

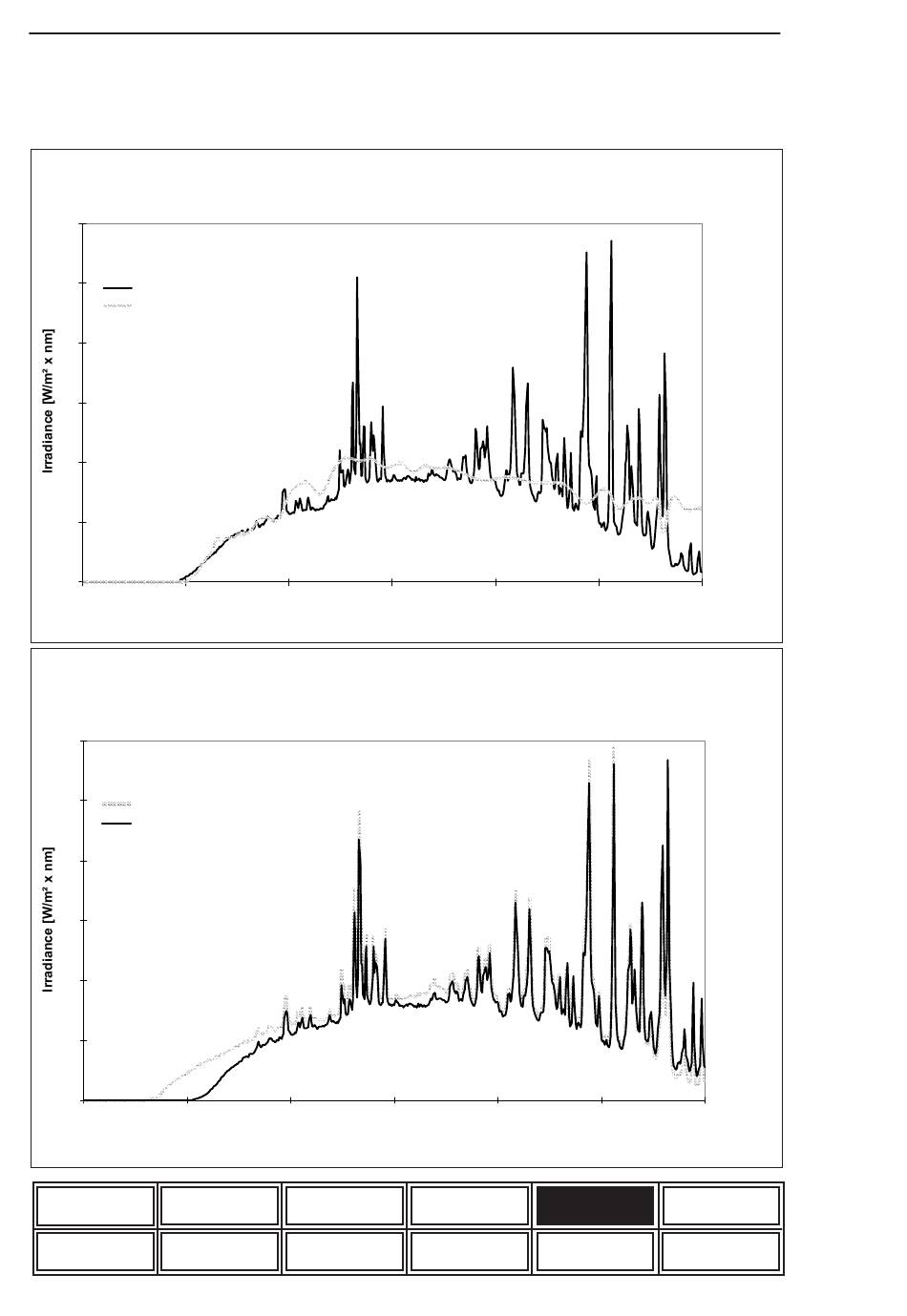

Figure 18: ALPHA
Spectral energy distribution in the wavelength range 200-800 nm
XENOCHROME 300 filter system with Suprax outer cylinder and CIE 85
12
XENOTEST ALPHA
XENOCHROME filter variations:
10
XENOCHROME 300
CIE 85
8
6
4
2
0
200 300
Figure 19: ALPHA
Spectral energy distribution in the wavelength range 200-800 nm
XENOCHROME 270 filter system with quartz outer cylinder
XENOCHROME 320 filter system with Suprax outer cylinder
12
XENOTEST ALPHA
XENOCHROME filter variations:
10
XENOCHROME 270
XENOCHROME 320
8
6
4
2
0
200 300
