Operating manual XENOTEST ALPHA / ALPHA HIGH ENERGY
5.2.7

XENOSENSIV sensor

(fig. 30)
The XENOSENSIV sensor (No. 56076841) collects
the values of irradiation in a wavelength range of
300-400 nm as well as the values of the black stan-
dard temperature in a surface temperature range
up to 130 °C at specimen level.
The XENOSENSIV sensor enables constant re-
gulation of chosen irradiation and black standard
temperature values.

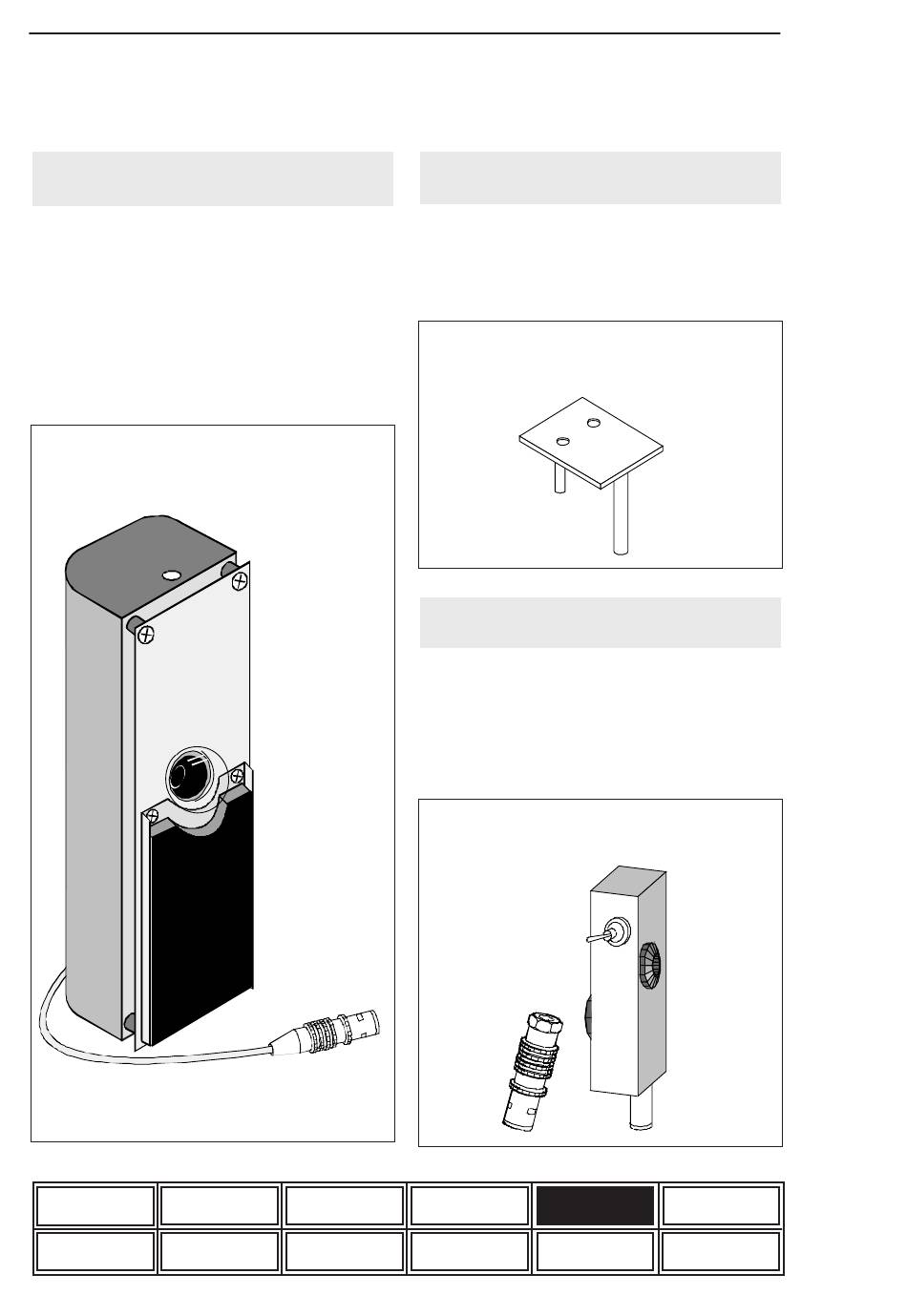

Figure 30: XENOSENSIV sensor
ALPHA and HIGH
Safety instructions
ENERGY features
Function Program example
Page 38
5.2.8
The adapter (No. 56075643) is used to fix the
XENOSENSIV sensor in the test chamber.
Figure 31: Adapter for XENOSENSIV sensor
5.2.9
To calibrate the XENOSENSIV sensor on a se-
cond XENOSENSIV master sensor (Software
documentation chapt. 1.3 A) a calibration adapter
(No. 56075992) is used. If no sensor is inserted,
the contact plug in the test chamber is protected
by an end plug.
Figure 32: Calibration adapter and
Unit set-up Unit description
Setting up tests Care and cleaning
Adapter for XENO-
SENSIV sensor (fig. 31)
Calibration adapter and
end plug (fig. 32)
end plug
S S T
E
Options und accessory
List of options and
Maintenance
ATLAS
Start-up
accessories
