5.2.2 Standard set of sample
holders (fig. 26)
The standard set of sample holders (Id.-No.
56075142) consists of 11 sample holders with the
dimensions 135mm x 45mm x 3mm maximum
sample thickness.
Fitting:
1. Insert the specimen into the sample holder.
2. Fix the specimen with the two screws.

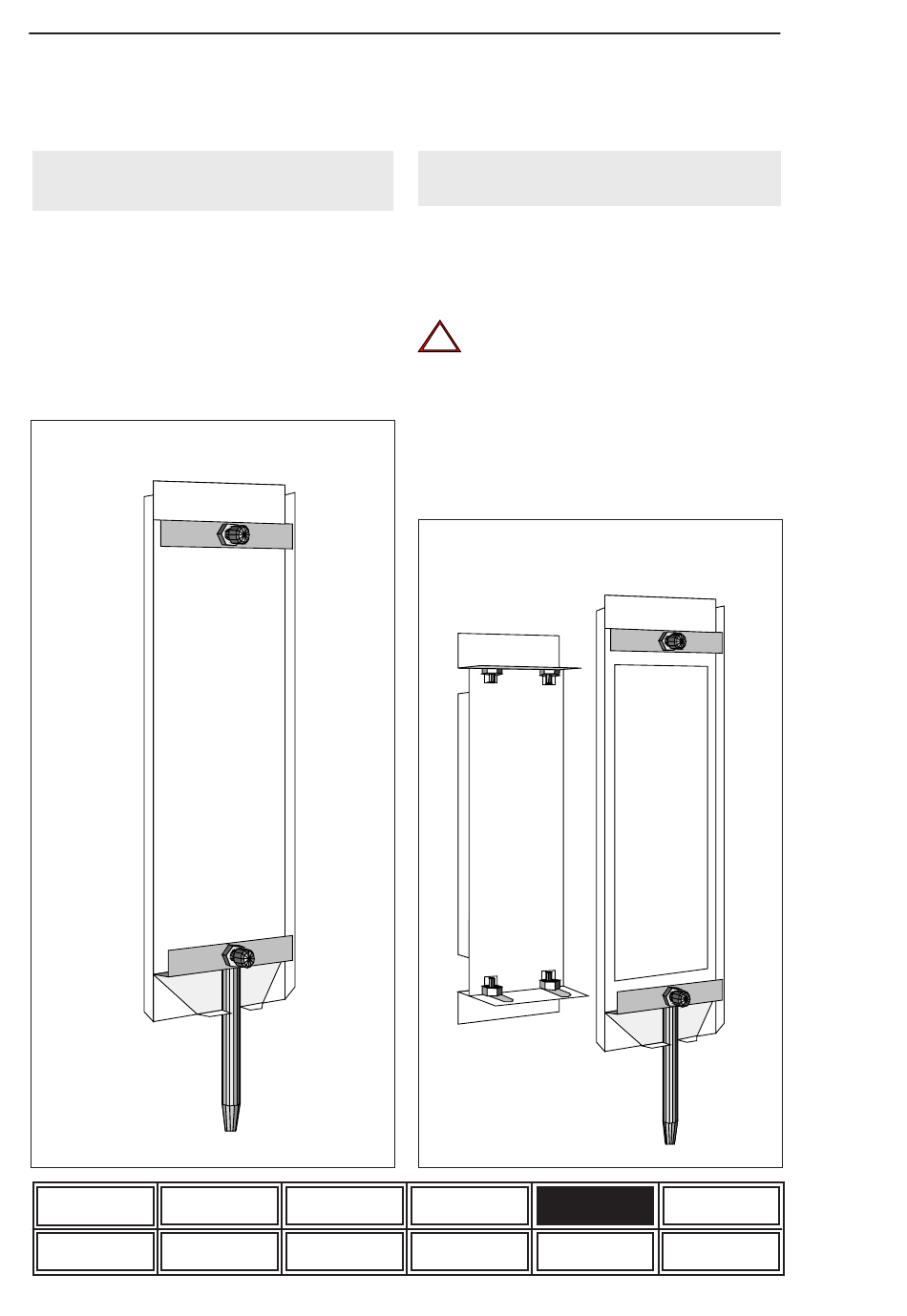

Figure 26: Standard sample holder
ALPHA and HIGH
Safety instructions
ENERGY features
Function Program example
Page 36
5.2.3
The special sample holder set (No. 56075143 =
11 pieces) is used for samples with the dimensions
135mm x 45mm up to max.15mm thickness.
The special sample holder may only be
used in non-turning mode.
Fitting:
1. Adjust the special sample holder with a
screw driver to the required specimen
thickness.
2. Fit the sample between the two plates and
tighten with the knurled screws.
Figure 27: Special holder for thick
Unit set-up Unit description
Setting up tests Care and cleaning
Special sample holder for
thick specimens (fig. 27)
specimens
