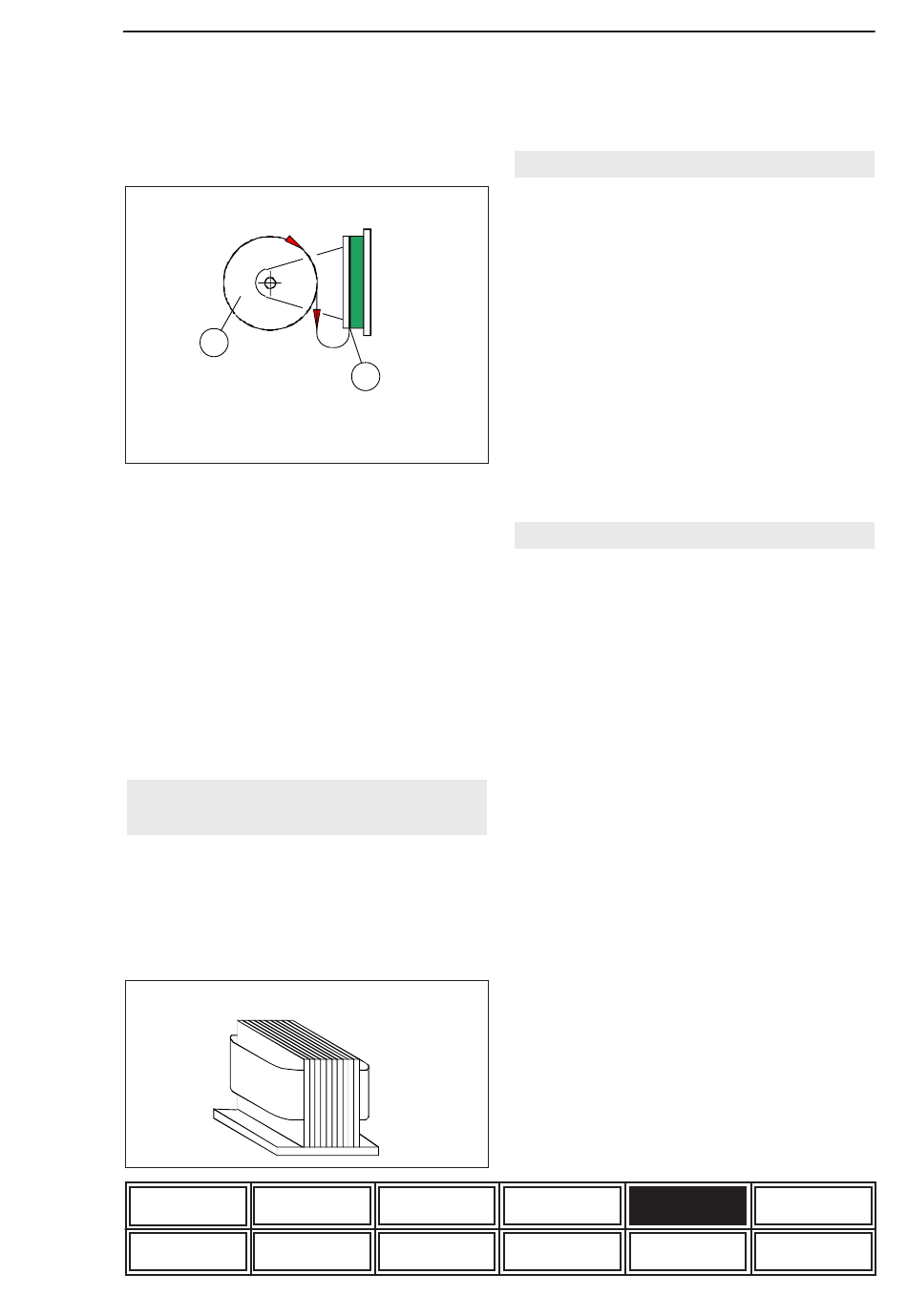

Change of paper roll: (fig.15)
Figure 15
1
1 Paper roll
2 Paper inlet slot
1. Press locking latch to the right and swing
front panel open.
2. Remove old paper roll.
3. Fit new paper roll in such way that it turns
clockwise when unwinding.
4. Cut edges of the paper and insert paper-
roll (note fig. 15).
5. Keep „LINE FEED/ENTER" key
depressed until the beginning of the paper
appears below the tear-off edge.
6. Close front door (locking latch must
engage), the LED "ALARM" will go out,
and the printer is ready for operation.
5.1.3 Mains matching
transformer
The mains transformer is needed for specific mains
adaptations in the various countries and is fitted to
the bottom right side of the unit (note fig. 8 Point
11).
Figure 16
ALPHA and HIGH
Safety instructions
ENERGY features
Function Program example
Operating manual XENOTEST ALPHA / ALPHA HIGH ENERGY
5.1.4
The unit supports alternatively an RS 232 or RS
485 interface to transmit measurement data to a
computer whilst a program is in progress.
With the accessory-package XENOVIEW consi-
sting of:
-
-
-
2
the interface can be driven.
(serial 9-pole Id. No. 56076813)
(serial 25-pole Id.-No. 56076812)
Connect the interface of the unit with the serial
interface of the computer.
5.1.5
In turning mode operation the samples are moved
continuously around the lamp being permanently
exposed to the light source.
The turning mode gear is used to turn the samples,
each sample holder being turned by 180° after each
caroussel revolution. As a consequence, the sample
is exposed in a light/dark phase.
The average irradiance and black standard
temperature is calculated from the values measured
by the XENOSENSIV sensor running in the non-
turning mode and from factors and formulas stored
in the program control to then be shown in the
display.
(fig.16)
Unit set-up Unit description
Setting up tests Care and cleaning

Interface

connection cable
software
operating manual

Turning mode gear

Options und accessory
Maintenance
Start-up
List of options and
accessories
Page 29
