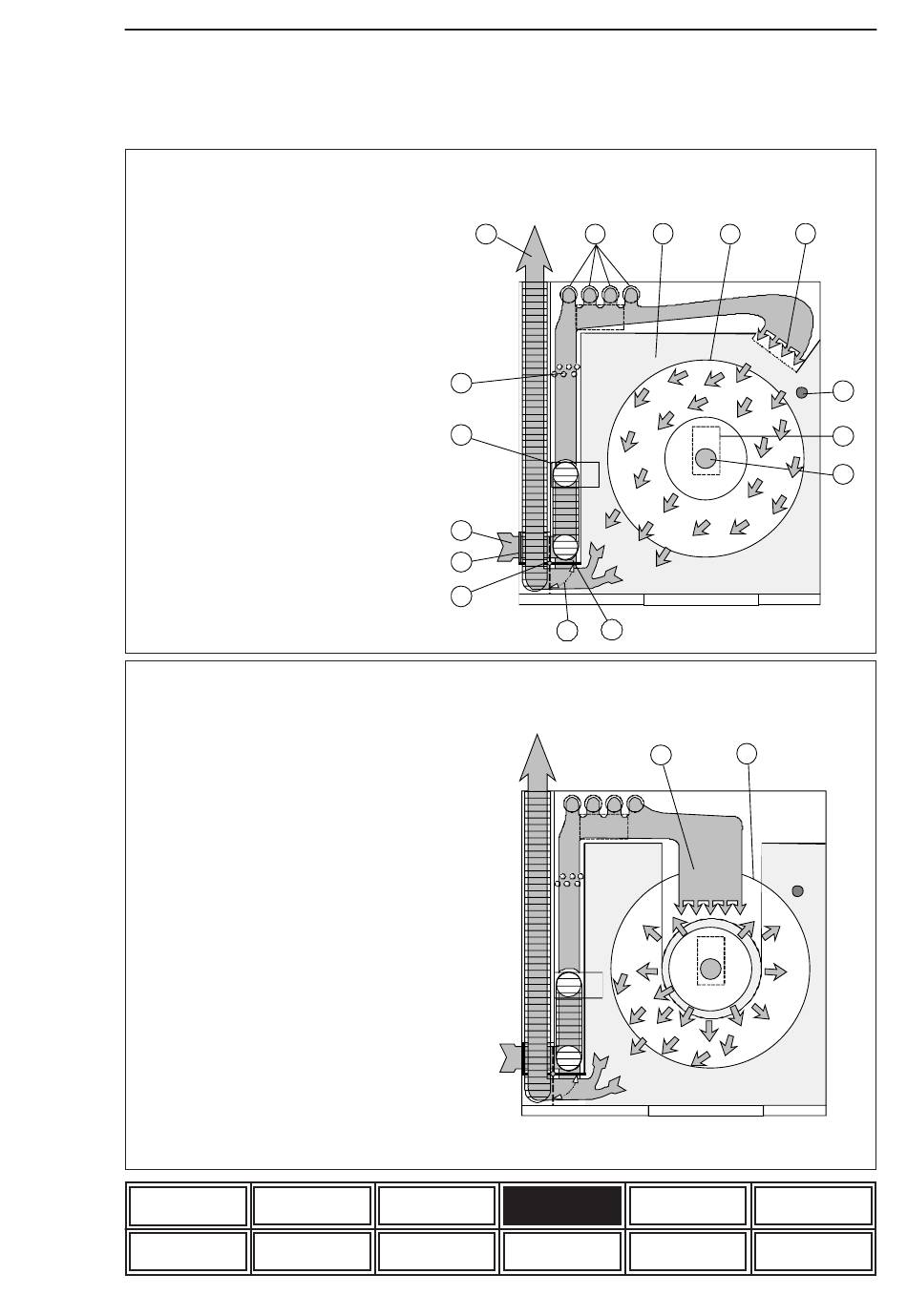

Figure 10: Ventilation scheme ALPHA
(seen from top of the unit)
1 Fan lamp cooling
2 Lamp exhaust air flow
3 Fresh air inlet
4 Filter mat
5 Flap air inlet
6 Heating
7 Climatic fan
8 Air intake tubes from humidifier
9 Test chamber
10 Samples
11 Test chamber air
12 Sensor for test chamber temperature and
rel. humidity
13 Exhaust air hose
14 Flap adjusting range
15 Circulated air
Figure 11: Ventilation scheme HIGH ENERGY
(seen from top of the unit)
1 Air duct
2 Samples
ALPHA and HIGH
