2. Absorption filter system (fig. 22, 23 and 24)
The absorption filter system (fig. 22) consists of a
filter lantern (2) with 7 optical filters (3), which
are inserted next to each other, and an outer
cylinder of special UV glass (Suprax) (4).
Different spectral energy distribution va-
lues can be obtained by varying the op-
tical filters and the outer cylinder (see
fig. 25 as an example).

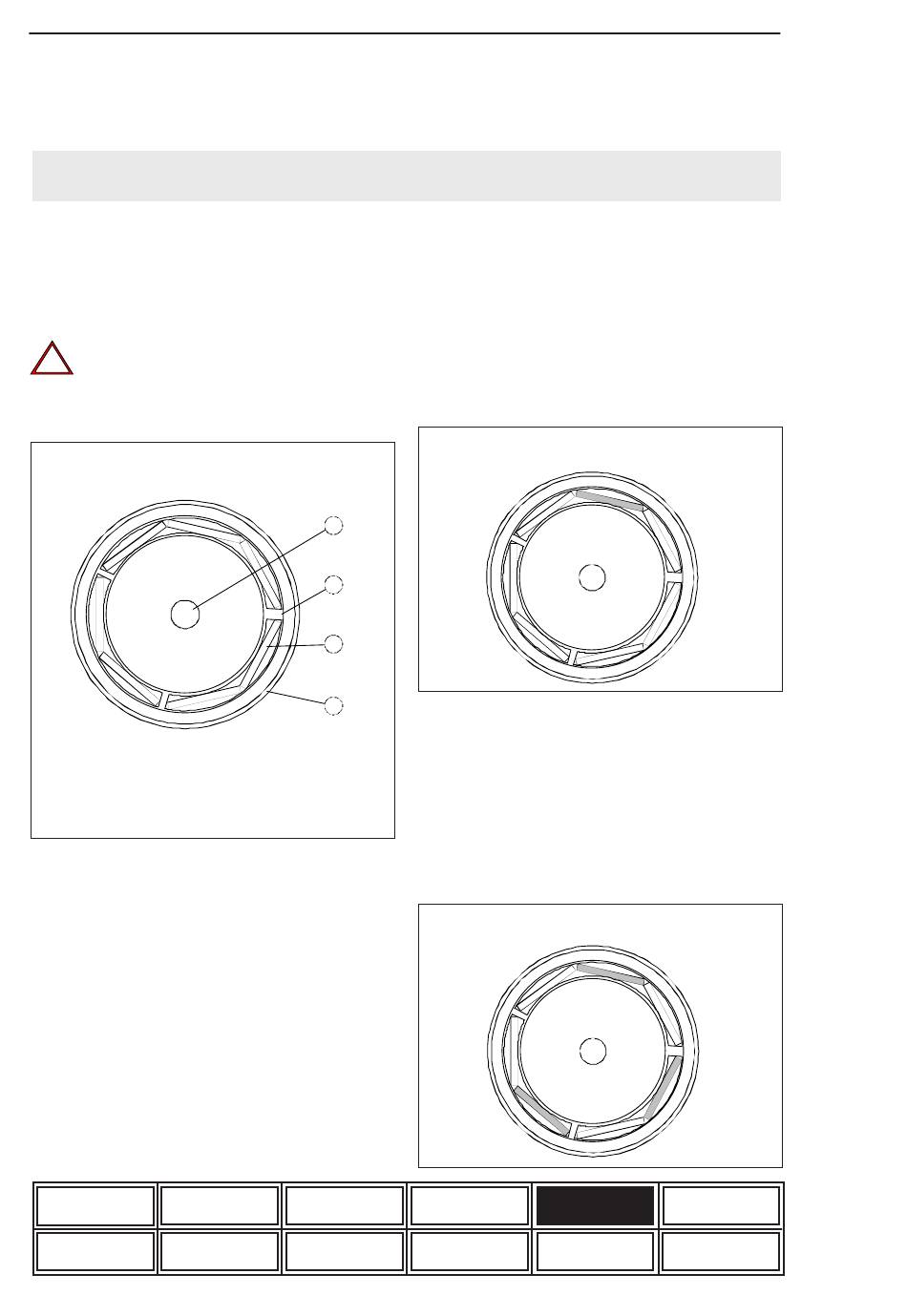

Figure 22: Absorption filter system
1 Xenon lamp
2 Filter lantern
3 Filter segments (7x)
4 Out Suprax cylinder
Variants of the Absorption filter system:
(Not for HIGH ENERGY models)
A) Sunlight behind window glass (fig. 22):
To simulate the exposure „sunlight behind
window glass" (requirement for the testing of
light fastness of textiles and leather according to
ISO 105 B02 and corresponding to national
standards (such as DIN 54004) 7 IR filters are
inserted into the filter lantern.
ALPHA and HIGH
Safety instructions
ENERGY features
Function Program example
Page 34
B) Sunlight outdoors (fig. 23):
To simulate the exposure „sunlight outdoors"
(requirement for the testing of weather fastness
of textiles and leather according to ISO 105 B04
and corresponding to national standards such as
DIN 54071) one of the 7 IR filters is replaced by
a black glass filter.
Figure 23
1
2
3
4
C) Light fastness of car interior fittings:
(fig. 24)
For a special test method according to ISO 105-
B06 resp. DIN 75202 (light fastness of car
interiors) a mixture of 4 IR- and 3 window glass
filters can be inserted into the lantern.
