5.2.4 Sample holder for blue
scale (fig. 28)
The sample holder for blue scales (No. 56001452)
can be fitted into the ALPHA and HIGH ENERGY
unit.
Fitting:
1. Pull the two clamps (1) slightly aside and
remove the inner blue scale mounting (2)
towards the bottom.
2. Fix specimens and secure with the little
clamps.
3. Insert mounting, secure it and slip on top
part (3) from above sliding it towards the
bottom.
4. Insert sample holder into the machine and
push top part upwards until the holding
clamps (4) snap into position.
5.2.5 Cover plates (fig. 29)
To make contrast between the irradiated and non-
irradiated sections of the specimens clearly visi-
ble, the set of cover plates with 11 pieces ea. (id.
no. 56075155) is available with 3 differently sized
apertures of 9mm, 18mm and 27mm.
Fitting:
1. Insert specimen into the cover plate. For a
lighttight fitting insert cover plates with the
U-bent edges facing the sample holder.
2. Screw on the cover plates with the two knur-
led screws.
Figure 29: cover plate
ALPHA and HIGH
Safety instructions
ENERGY features
Function Program example
Operating manual XENOTEST ALPHA / ALPHA HIGH ENERGY

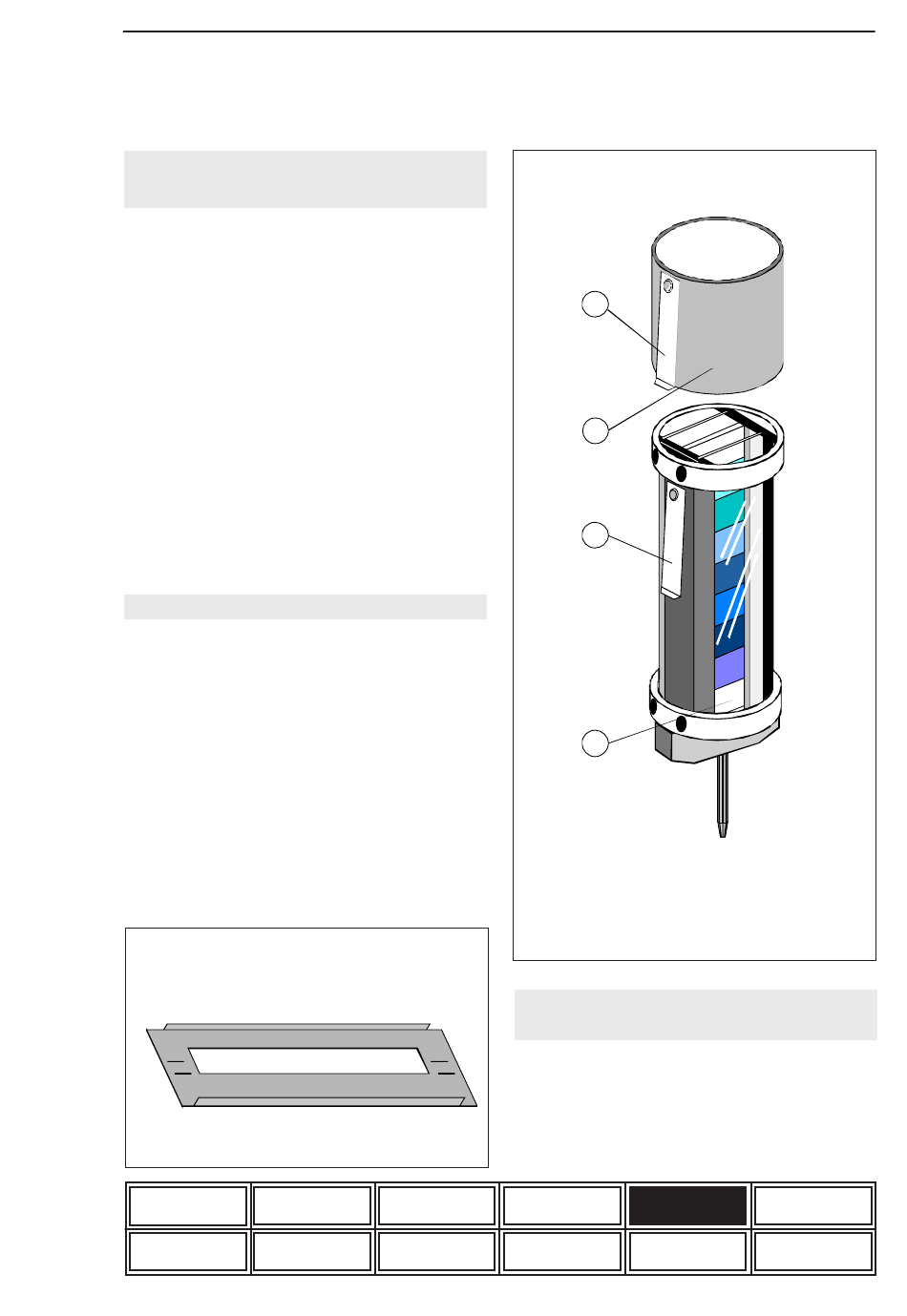

Figure 28: sample holder for blue scale
1
2
3
4
5.2.6
Software for transfer of measuring data to a PC.
- XENOVIEW, serial 9-pole (No. 56076813)
- XENOVIEW, serial 25-pole (No. 56076812)
