4.3 Control Examples

4.3.1 Improved Control

Using a drive to control flow or pressure of a system
improves control.
A drive can vary the speed of the fan or pump, obtaining
variable control of flow and pressure.
Furthermore, a drive can quickly adapt the speed of the
fan or pump to new flow or pressure conditions in the
system.
Achieve simple control of process (flow, level, or pressure)
using the built-in PI control.

4.3.2 Smart Logic Control

A useful facility in the drive is the smart logic control (SLC).
In applications where a PLC generates a simple sequence,
the SLC can take over elementary tasks from the main
control.
SLC is designed to act from events sent to or generated in
the drive. The drive then performs the pre-programmed
action.
44
®
VLT
Valve regulation Drive control
Power Consump- Power Consump-
tion
A –B [kWh] A –C
1 1 1 1
42.5 18.615 42.5
38.5 50.589 29.0
35.0 61.320 18.5
31.5 55.188 11.5
28.0 49.056 6.5
23.0 40.296 3.5
– 275.064 –
Danfoss A/S © 12/2018 All rights reserved.
DriveMotor FCP 106

4.3.3 Smart Logic Control Programming

tion The smart logic control (SLC) comprises a sequence of
user-defined actions (see parameter 13-52 SL Controller
[kWh]
Action) executed by the SLC when the SLC evaluates the
18.615
associated user-defined event (see parameter 13-51 SL
38.106
Controller Event) as TRUE.
32.412
Events and actions are each numbered and are linked in
20.148
pairs called states. When event [1] is fulfilled (attains the
11.388
value TRUE), action [1] is executed. After this execution, the
6.132
conditions of event [2] is evaluated, and if evaluated TRUE,
26.801
action [2] is executed, and so on. Events and actions are
placed in array parameters.
Only 1 event is evaluated at any time. If an event is
evaluated as FALSE, nothing happens (in the SLC) during
the present scan interval and no other events are
evaluated. This means that when the SLC starts, it
evaluates event [1] (and only event [1]) each scan interval.
Only when event [1] is evaluated TRUE, the SLC executes
action [1] and starts evaluating event [2].
It is possible to program 0–20 events and actions. When
the last event/action has been executed, the sequence

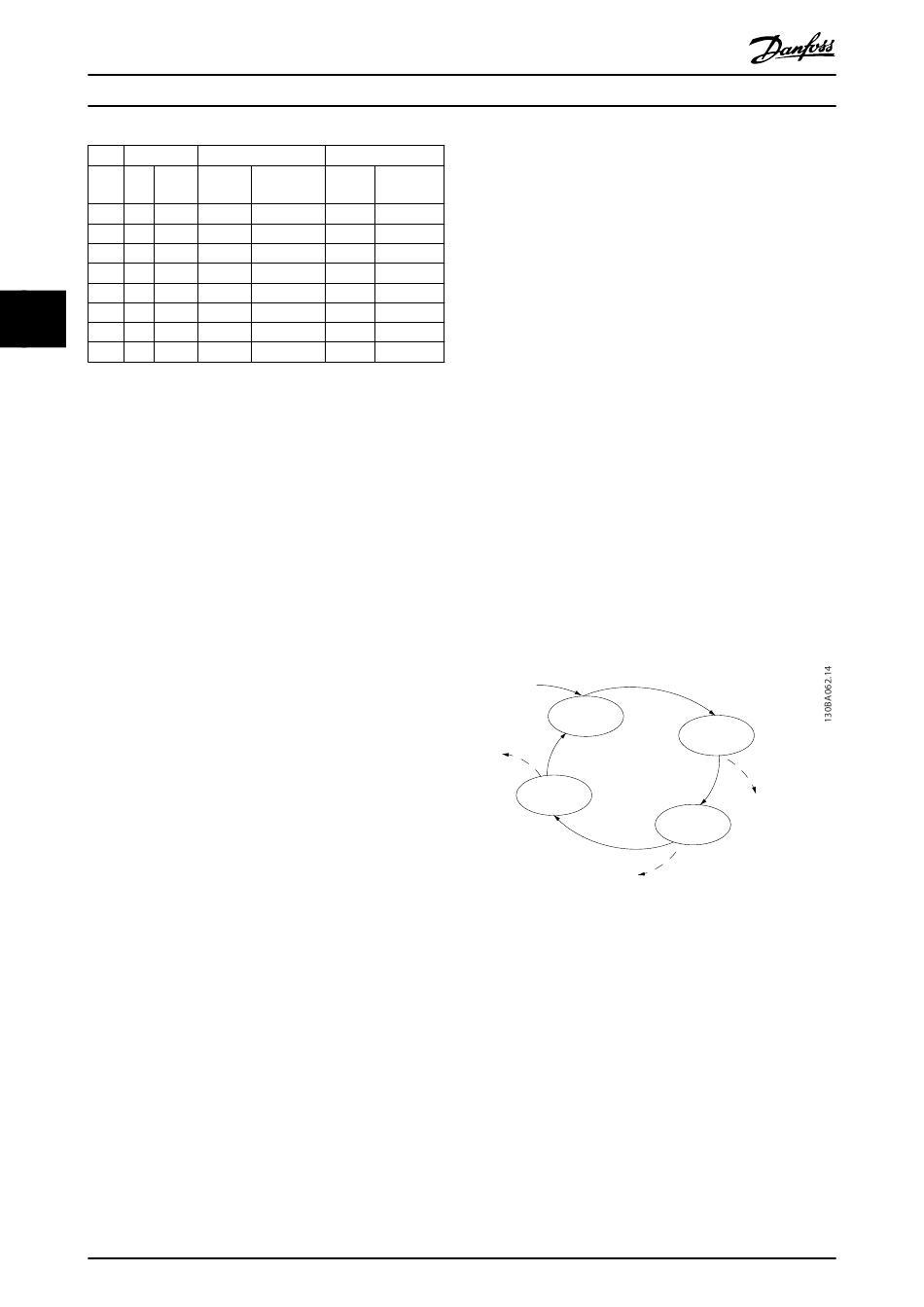

starts over again from event [1]/action [1]. Illustration 4.11
shows an example with 3 events/actions:
Start
event P13-01
Stop
event P13-02
State 4
13-51.3
13-52.3
Illustration 4.11 Example with 3 Events/Actions
State 1
13-51.0
13-52.0
State 2
13-51.1
13-52.1
State 3
13-51.2
13-52.2
Stop
event P13-02
Stop
event P13-02
