2.5 Feedback and Reference Handling

2.5.1 Reference Handling
2 2
Details for open loop and closed loop operation.
Internal resource
P 3-14 Preset relative
reference
±100%
Preset reference 0 ±100%
Preset reference 1 ±100%
Preset reference 2 ±100%
Preset reference 3 ±100%
Preset reference 4 ±100%
Preset reference 5 ±100%
Preset reference 6 ±100%
Preset reference 7 ±100%
P 3-15 Reference 1
resource
No function
Analog reference
±200%
Pulse reference
±200%
Local bus reference
±200%
P 3-16 Reference 2
resource
No function
Analog reference
±200%
Pulse reference
±200%
Local bus reference
±200%
P 3-17 Reference 3
resource
No function
Analog reference
±200%
Pulse reference
±200%
Local bus reference
±200%

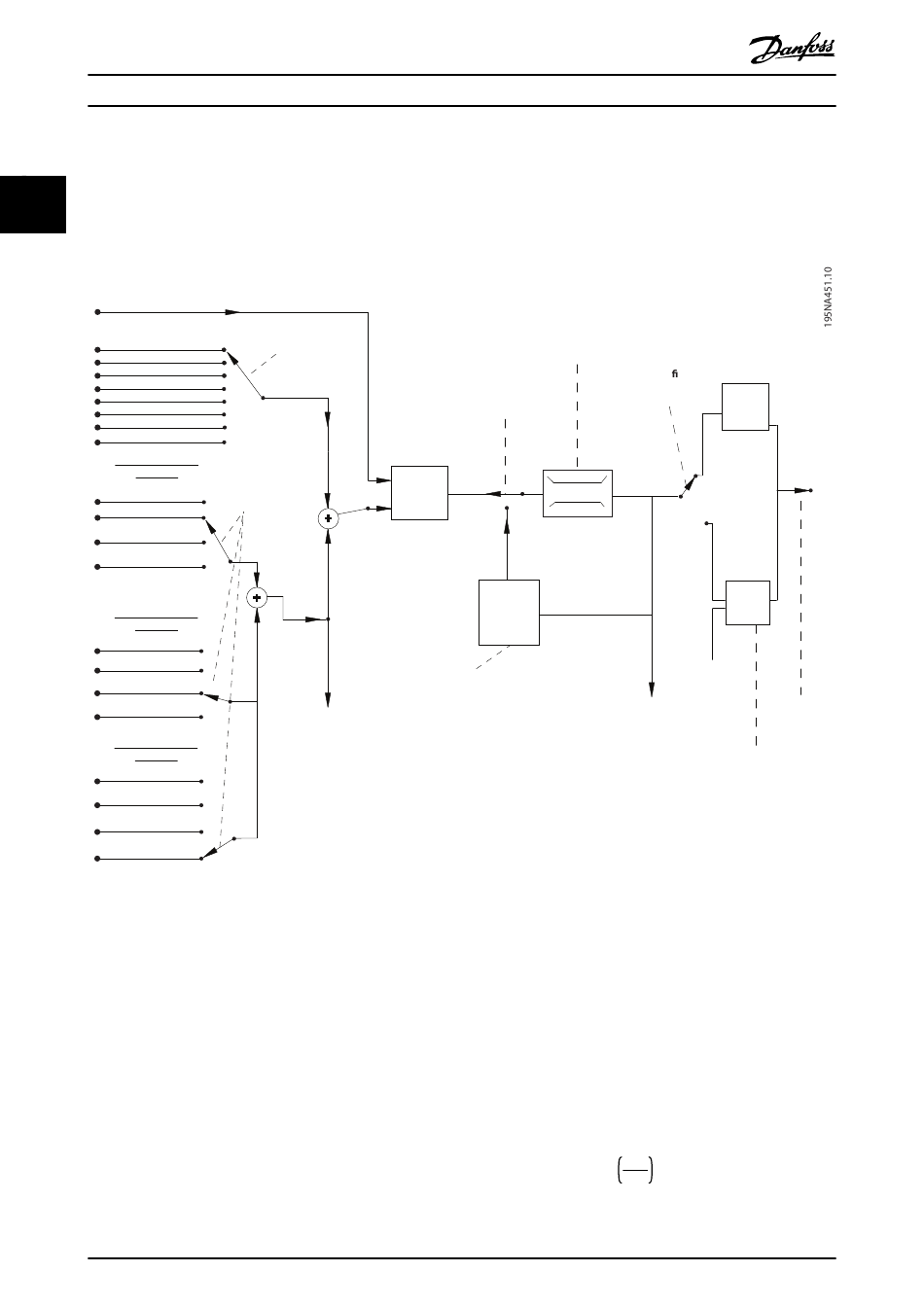

Illustration 2.16 Block Diagram Showing Remote Reference
The remote reference comprises:
•
Preset references
•
External references (analog inputs and serial
communication bus references)
•
The preset relative reference
•
Feedback-controlled setpoint
Up to 8 preset references can be programmed in the drive.
Select the active preset reference using digital inputs or
the serial communications bus. The reference can also be
supplied externally, most commonly from an analog input.
Select this external source via the 3 reference source
parameters:
18
®
VLT DriveMotor FCP 106
Relative scaling reference
Input command:
preset ref bit0, bit1, bit2
P 3-10 Preset
reference
±100%
Y
Parameter choice:
X
Reference resource 1,2,3
+
±200%
+
±200%
P 16-50 External reference in %
