Product Overview
Terminal Function Configuration
number
12 +24 V output –
18 Digital input *PNP/NPN
19 Digital input *PNP/NPN
20 Com D in –
27 Digital input/ *PNP/NPN
output
29 Digital input/ *PNP/NPN
output/pulse
input
50 +10 V output –
53 Analog input *0–10 V/0–20 mA/
4–20 mA
54 Analog input *0–10 V/0–20 mA/
4–20 mA
55 Com A in/out –
42 10 bit *0–20 mA/4–20 mA/DO Analog
45 10 bit *0–20 mA/4–20 mA/DO Analog
1, 2, 3 Relay 1 1, 2 NO 1, 3 NC
4, 5, 6 Relay 2 4, 5 NO 4, 6 NC
Table 2.1 Control Terminal Functions
* Indicates default setting.
NOTICE
PNP/NPN is common for terminals 18, 19, 27, and 29.
2.1.5 Serial Communication (Fieldbus)
Networks
These protocols are embedded in the drive:
•
BACnet MSTP
•
Modbus RTU
•
FC Protocol
2.2 VLT ®
Memory Module MCM 101
®
The VLT Memory Module MCM 101 is a small memory
plug containing data such as:
•
Firmware
•
SIVP file
•
Pump table
•
Motor database
•
Parameter lists
The drive comes with the module installed from the
factory.
MG03M302
Design Guide
Factory
setting
–
Start
No operation
–
Coast inverse
Jog
–
Ref1
Ref2
–
1 ®
VLT

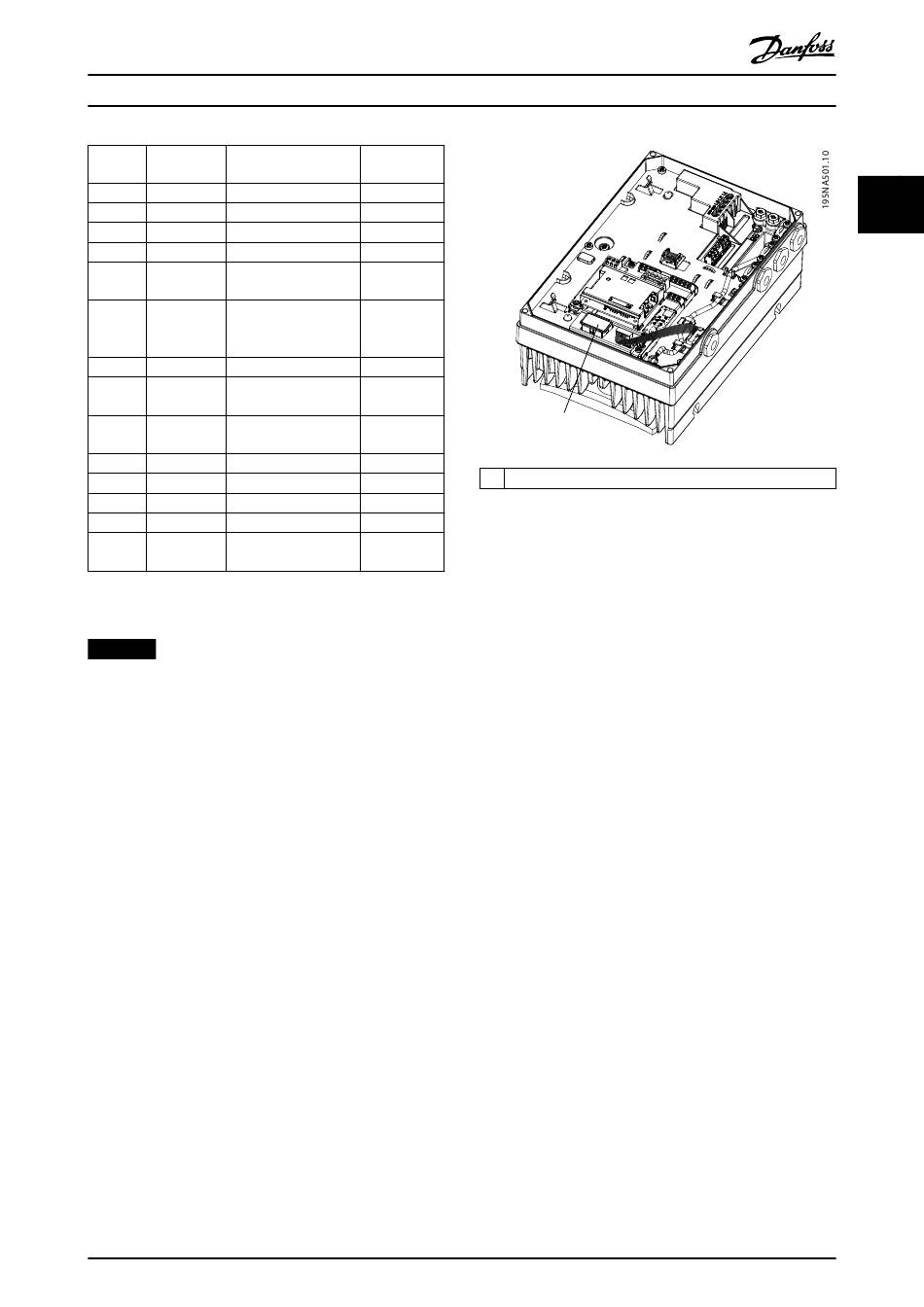

Illustration 2.8 Location of Memory Module
[9] Alarm
[5] Drive
running
If the memory module becomes defect, it does not prevent
the drive from working. The warning LED on the lid
flashes, and a warning shows in the LCP (if installed).
Warning 206, Memory module indicates that either a drive
runs without a memory module, or that the memory
module is defect. To see the exact reason for the warning,
refer to parameter 18-51 Memory Module Warning Reason.
A new memory module can be ordered as a spare part.
The order number is: 134B0791.
