Danfoss VLT DriveMotor FCP 106 Design Manual page 24

Product Overview
2 2
1
1 PLC
2 Drive motor-mounted
3 Minimum 200 mm (7.87 in) clearance between control cable and mains cable.

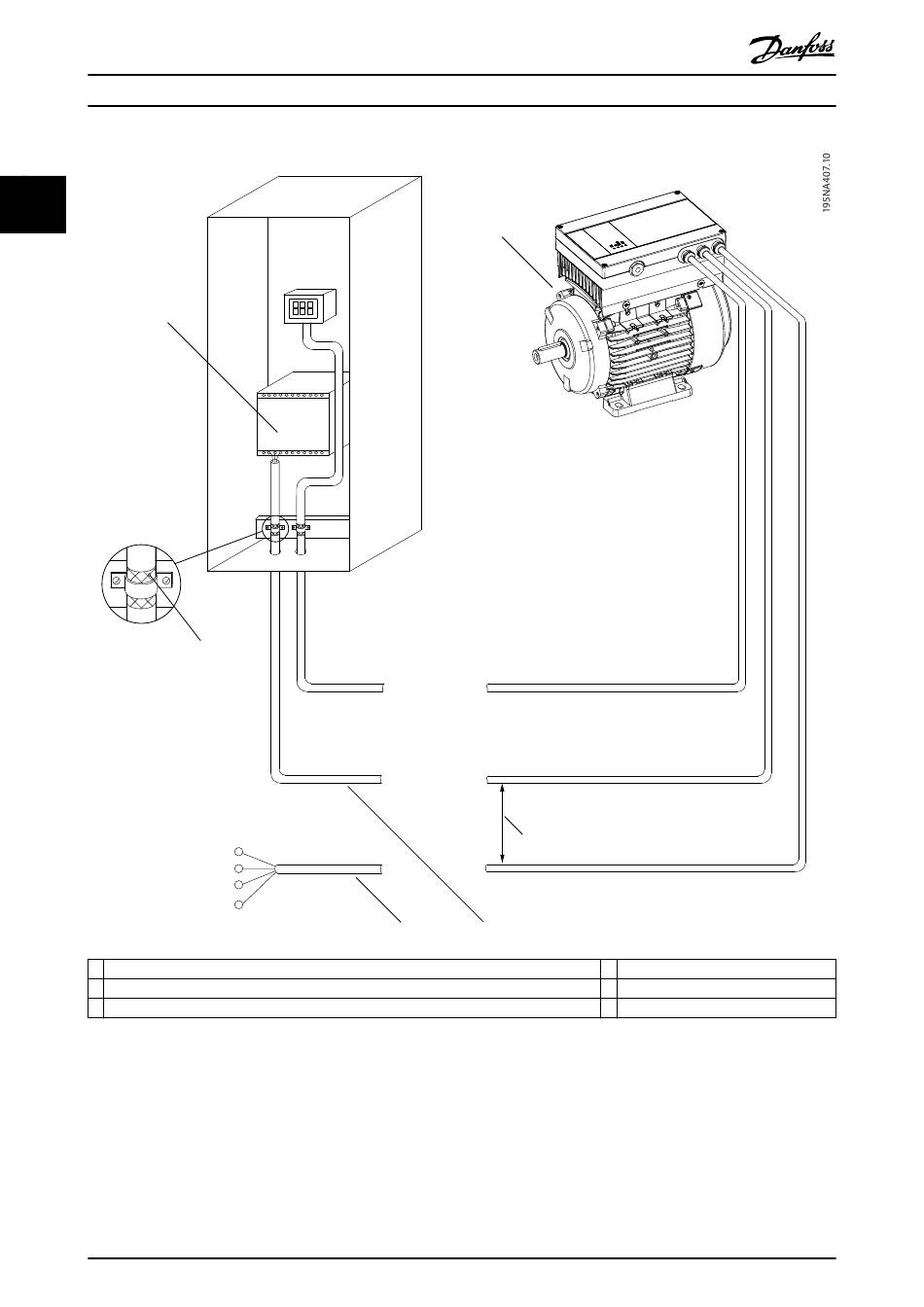

Illustration 2.20 EMC-compliant Electrical Installation, FCP 106 Motor-mounted
To ensure EMC-compliant electrical installation, observe
these general points:
•
Use only shielded motor cables and shielded
control cables.
•
Connect the shield to ground at both ends.
22
®
VLT
6
L1
L2
L3
PE
Danfoss A/S © 12/2018 All rights reserved.
DriveMotor FCP 106
2
3
5 4
•
Avoid installation with twisted shield ends
(pigtails), since this type of installation ruins the
shield effect at high frequencies. Use the cable
clamps provided instead.
•
Ensure the same potential between drive and
ground potential of the PLC.
4 Control cables
5 Mains, 3-phase, and reinforced PE
6 Cable insulation (stripped)
MG03M302
