Product Overview

2 Product Overview

2.1 Introduction

The delivery comprises the drive only. A wall-mounted
adapter plate, or motor adapter plate and power crimp
terminals are also required for installation. Order the wall-
mounted kit, or adapter plate and power crimp terminals
separately.
®

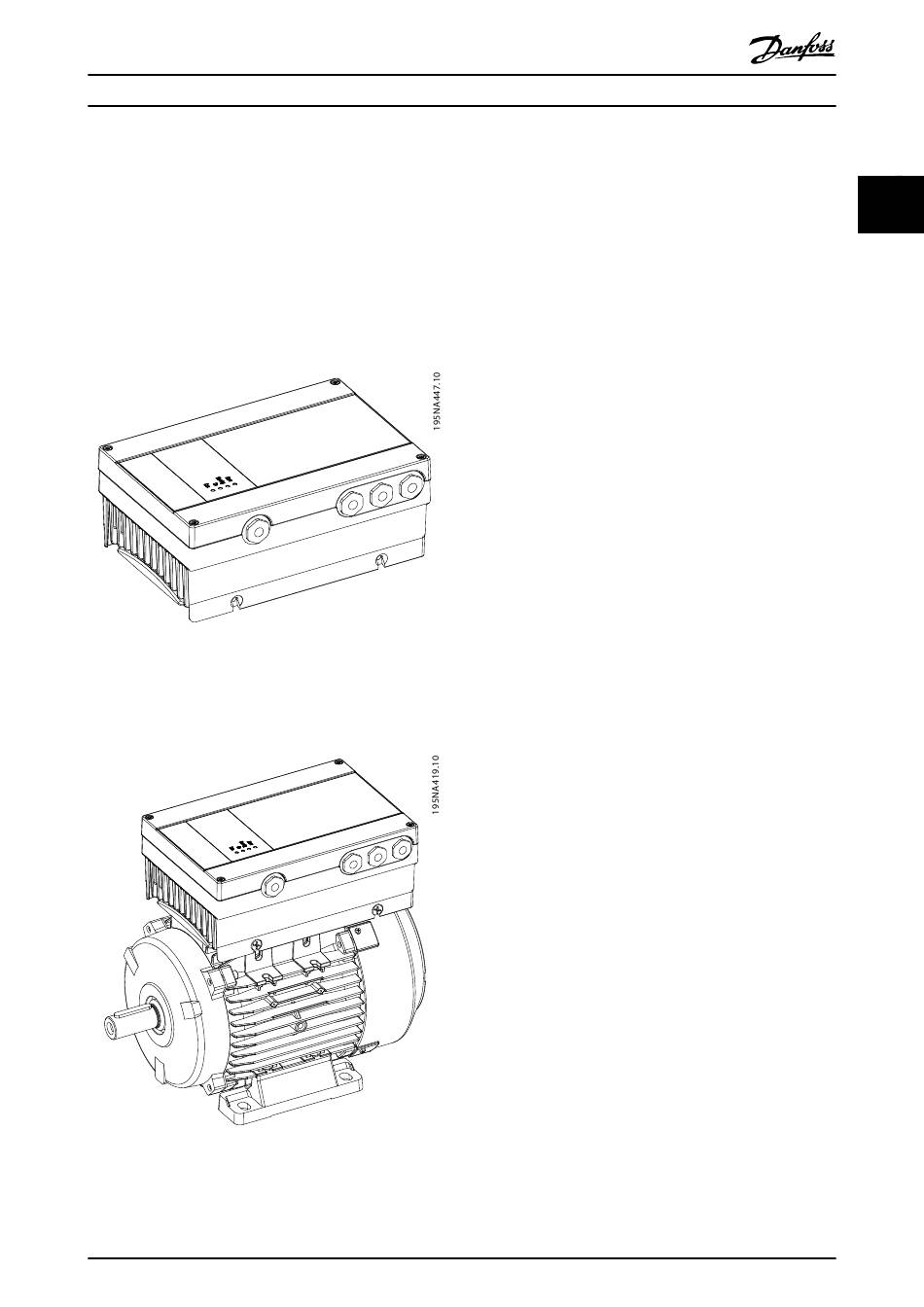

Illustration 2.1 VLT DriveMotor FCP 106
The drive is designed for both motor- and wall-mounting.
The motor is not included in delivery.
Illustration 2.2 FCP 106 Motor-mounted
MG03M302
Design Guide

2.1.1 Gasket

Mounting of the VLT
requires fitting a customized gasket. The gasket fits
between the motor adapter plate and the motor.
No gasket is supplied with the FCP 106 drive.
Therefore, before installation, design and test a gasket to
fulfill the ingress protection requirement (for example IP55,
IP66, or Type 4X).
Requirements for gasket:
•
•
•
Danfoss A/S © 12/2018 All rights reserved.
®
DriveMotor FCP 106 onto a motor
Maintain the ground connection between the
drive and the motor. The drive is grounded to the
motor adapter plate. Use a wire connection
between the motor and the drive.
Use a UL-approved material for the gasket, when
UL listing or recognition is required for the
assembled product.
The ingress of water or humidity by the motor
connector must be avoided by suitable measures.
