5. 6-11 Terminal 53 High Voltage. Set maximum
external voltage reference on Terminal 53 at 10 V.
(This sets the maximum input signal at 10 V.)

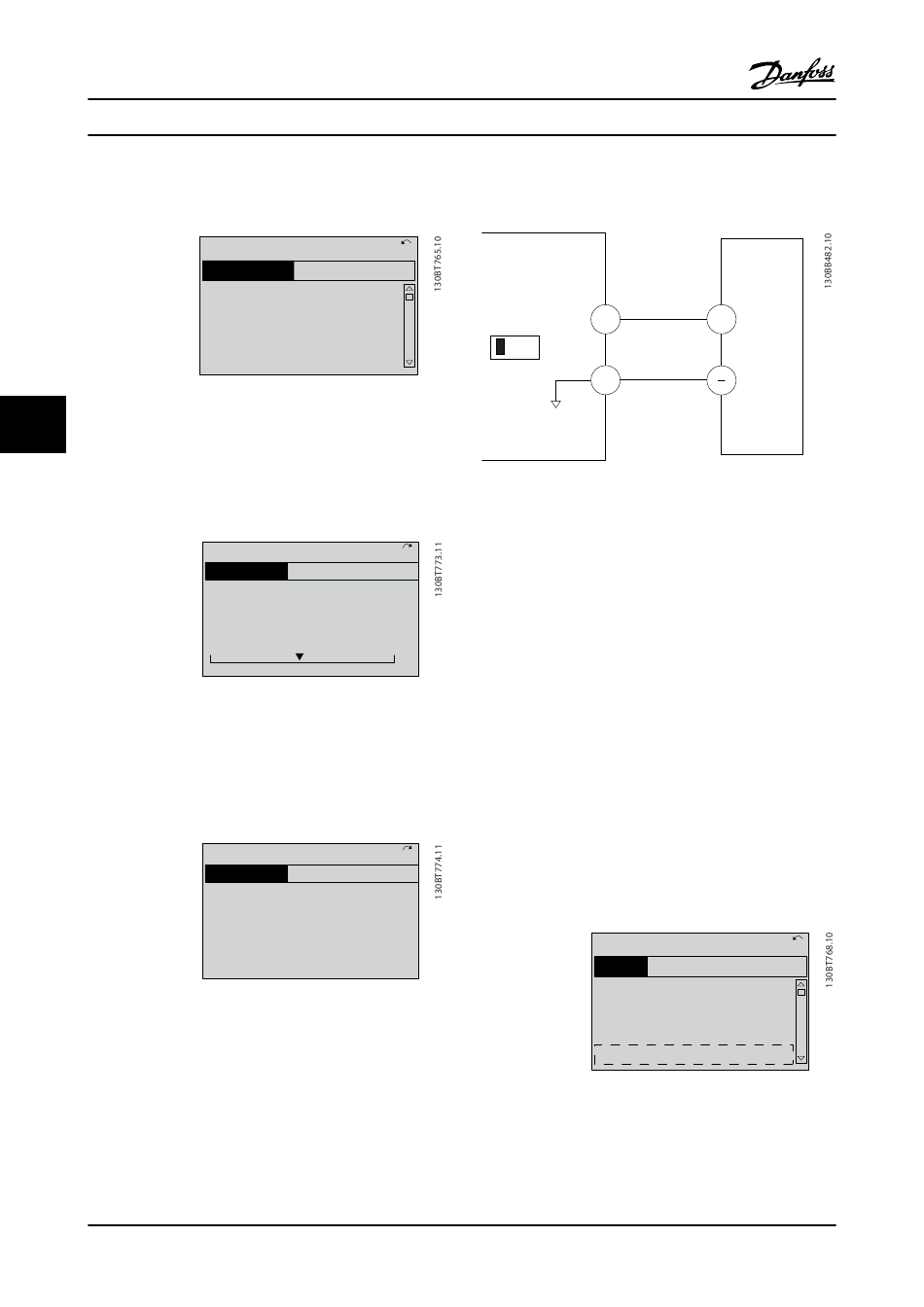

Figure 5.5
5 5
6. 6-14 Terminal 53 Low Ref./Feedb. Value. Set
minimum speed reference on Terminal 53 at 6
Hz. (This tells the adjustable frequency drive that
the minimum voltage received on Terminal 53 (0
V) equals 6 Hz output.)
Figure 5.6
7. 6-15 Terminal 53 High Ref./Feedb. Value. Set
maximum speed reference on Terminal 53 at 60
Hz. (This tells the adjustable frequency drive that
the maximum voltage received on Terminal 53
(10 V) equals 60 Hz output.)
Figure 5.7
With an external device providing a 0–10 V control signal
connected to adjustable frequency drive terminal 53, the
system is now ready for operation. Note that the scroll bar
on the right in the last figure of the display is at the
bottom, indicating the procedure is complete.
5-2
VLT ® AutomationDrive Instruction
Manual
14.7% 0.00A
Analog Reference
6-11 Terminal 53 High
Voltage
10.00 V
14.7 % 0.00 A
Analog Reference
6 - 14 Terminal 53 Low
Ref./Feedb. Value
000020.000
14.7 % 0.00 A
Analog Reference
6 - 15 Terminal 53 High
Ref./Feedb. Value
50.000
MG33AL22 - VLT
Figure 5.8 shows the wiring connections used to enable
this set-up.
1(1)
Q3-21
6-1*
U - I
A53
Figure 5.8 Wiring Example for External Device Providing 0–10 V
Control Signal (adjustable frequency drive left, external device
right)
1(1)
5.3 Control Terminal Programming
Q3-21
Examples
Control terminals can be programmed.
•
Each terminal has specified functions it is capable
of performing.
•
Parameters associated with the terminal enable
the function.
See Table 2.5 for control terminal parameter number and
default setting. (Default setting can change based on the
selection in 0-03 Regional Settings.)
The following example shows accessing Terminal 18 to see
the default setting.
1(1)
Q3-21
1. Press [Main Menu] twice, scroll to parameter
group 5-** Digital In/Out and press [OK].
Figure 5.9
®
is a registered Danfoss trademark
53
+
0-10V
55
14.6% 0.00A
Main Menu
2-** Brakes
3-** Reference / Ramps
4-** Limits / Warnings
5-** Digital In/Out
1(1)
