Ensure that the short circuit power of the supply S
greater than or equal to:
S 3 × R
=
SC SCE
at the interface point between the user's supply and the
3 3
public system (R
The installer or user of the equipment must ensure that
the equipment is connected only to a supply with a short
circuit power S
consult the distribution network operator.
Other power sizes can be connected to the public supply
network by consultation with the distribution network
operator.
Compliance with various system level guidelines:
The harmonic current data in Table 3.3 to Table 3.5 are
listed in accordance with IEC/EN 61000-3-12 regarding the
power drive systems product standard. These data may be
used:
•
As the basis for calculation of the influence of
harmonic currents on the supply system.
•
For the documentation of compliance with
relevant regional guidelines: IEEE 519 -1992; G5/4.

3.4 Drive/Options Selections

3.4.1 Remote Mounting Kit

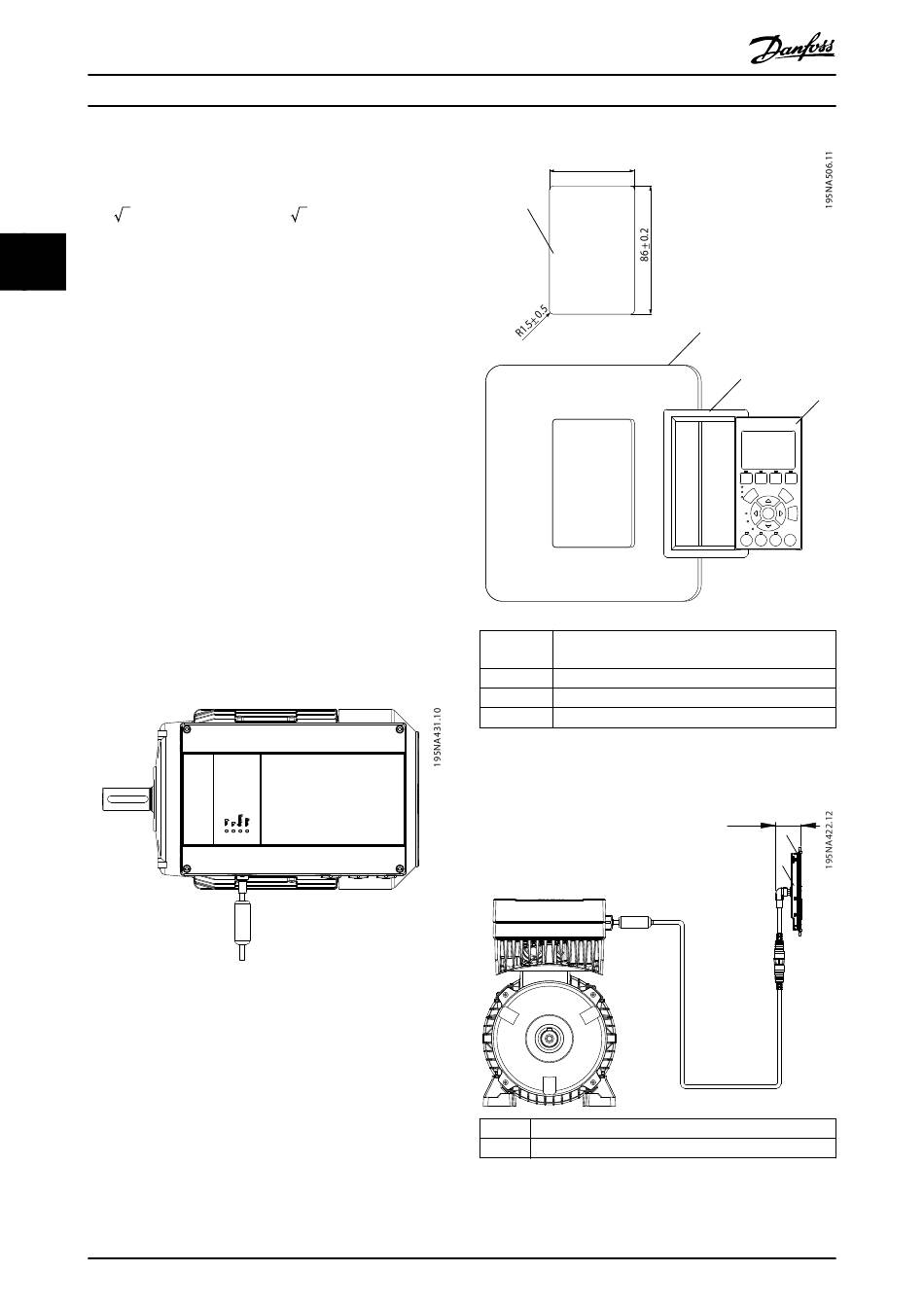

Illustration 3.3 Remote Mounting Kit Connections
30
× U × I = 3 × 120 × 400 × I
mains equ
).
sce
≥ the value specified above. If necessary,
sc
Danfoss A/S © 12/2018 All rights reserved.
®
VLT DriveMotor FCP 106
is
sc
1
equ
1
2
3
4
Illustration 3.4 Remote Mounting Kit Connector
1
2
Illustration 3.5 LCP Remote Mounting
62.5 + _ 0.2
2
Panel cutout. Panel thickness 1–3 mm (0.04–
0.12 in)
Panel
Gasket
LCP
Control panel
Panel door
3
4
42 mm
2
1
