Instructions for use
HealOzone 2130 C
Always be on the safe side.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HealOzone 2130 C and is the answer not in the manual?

Questions and answers

Dr. Frank Berlinghoff
March 10, 2025

how to change language at KaVo HealOzone 2130c

0
1 comments:
Mr. Anderson
March 10, 2025

To change the language on a KaVo HealOzone 2130 C:
1. Press and hold the designated button (for 2 seconds) in the main menu to switch to the user menu.
2. Use the PLUS and MINUS buttons to navigate language settings.
3. Select the desired language.
4. Confirm the selection.

This answer is automatically generated

0

Related Manuals for KaVo HealOzone 2130 C

Summary of Contents for KaVo HealOzone 2130 C

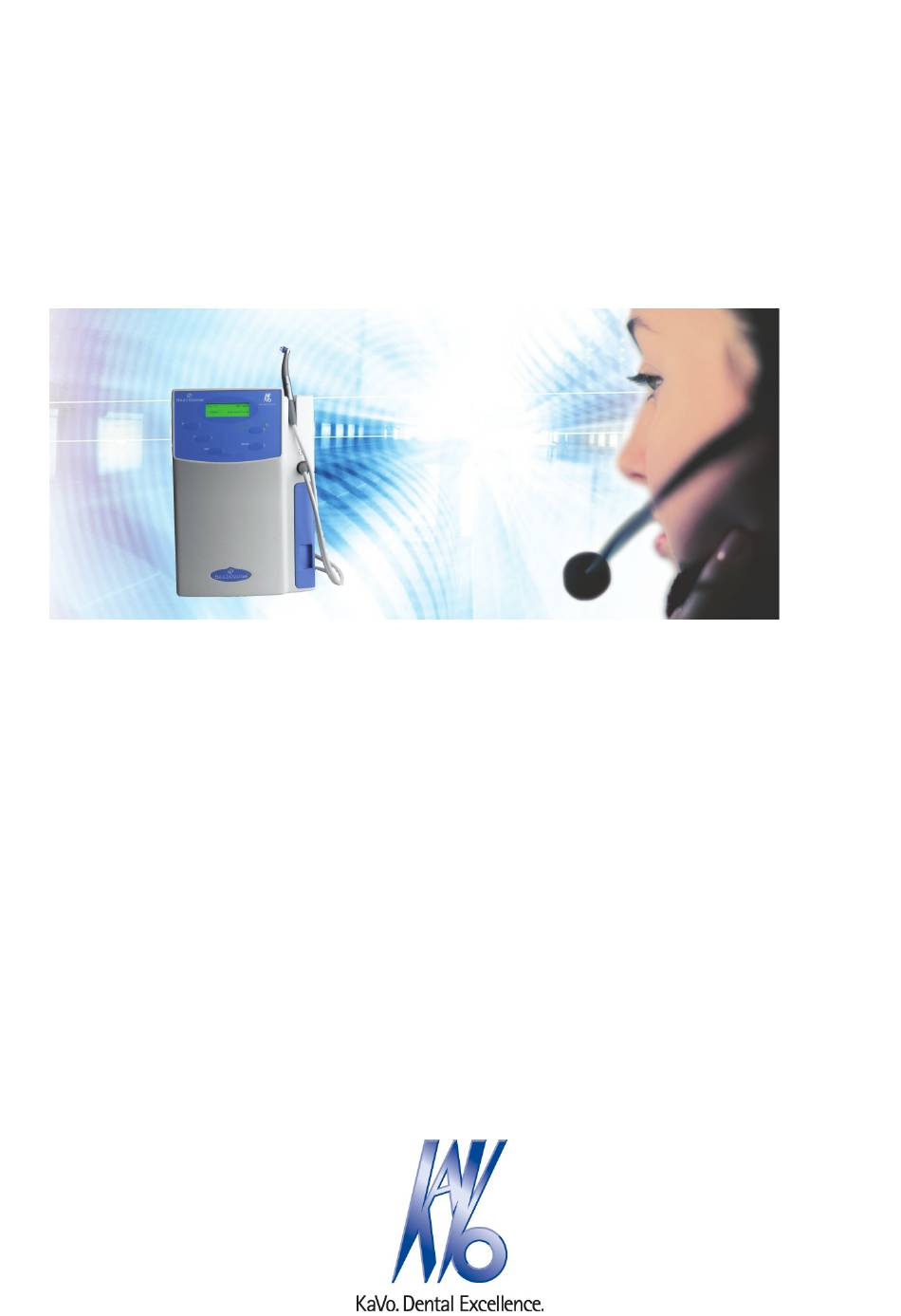

  • Page 1 Instructions for use HealOzone 2130 C Always be on the safe side.
