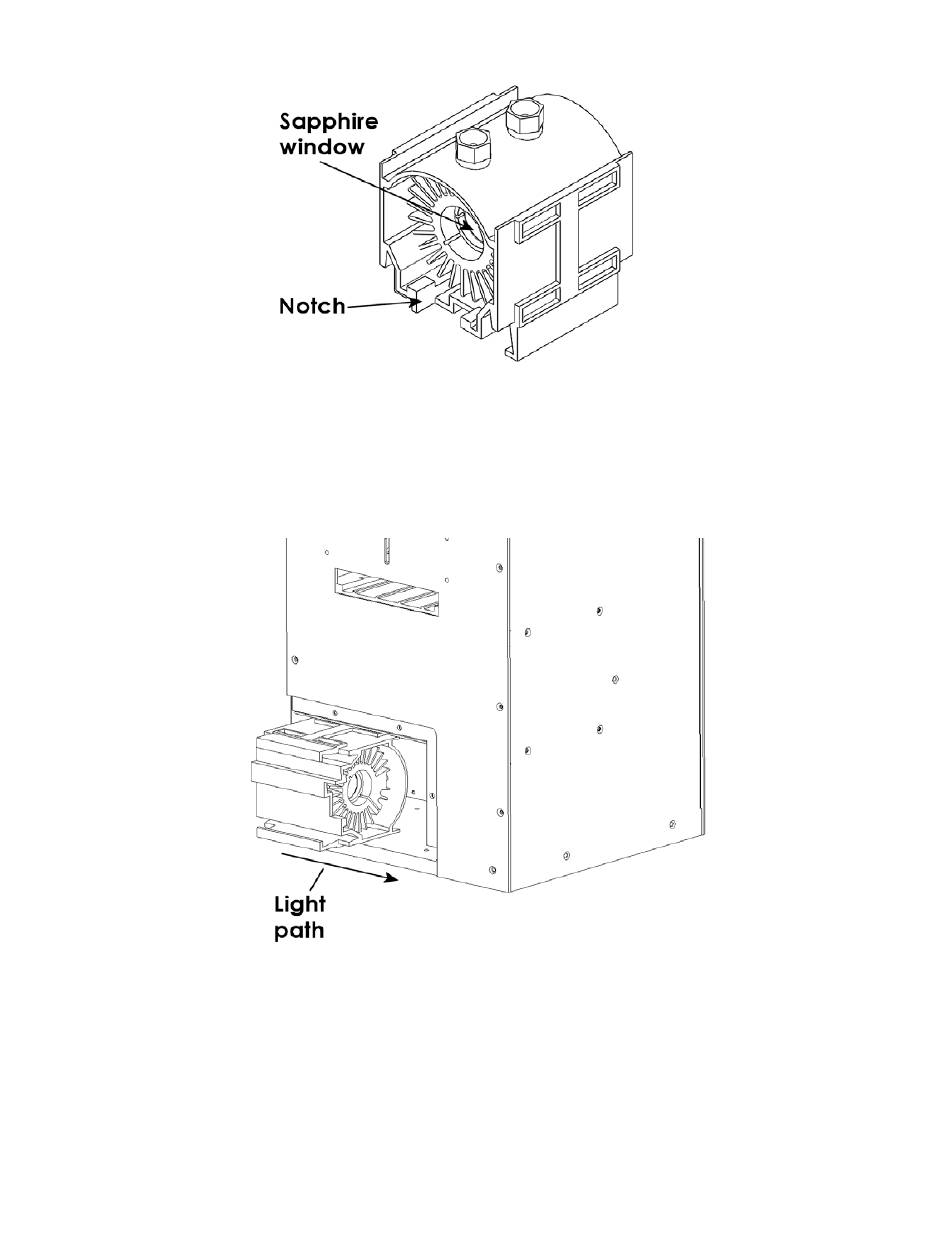

Figure 5-6. Position of the bulb/heat sink assembly in the blue housing.

5.1.4 Reinstalling the Lamp/Housing Assembly to the System

1. Grasp the top and bottom handles of the blue plastic housing assembly and carefully
reinsert the assembly into the cabinet (Figure 5-7) with the bulb window facing away
from the lamp fan.
8. Reaffix the black cover panel and screw it in place with the four knurled screws.
9. Screw in the five screws at the lower left corner of the left side panel where the lamp
access door is located.

Figure 5-7. Returning the light bulb assembly to the system.

LAMBDA DG-4 & DG-5 OPERATION MANUAL – REV. 3.05C (20150414)
55
