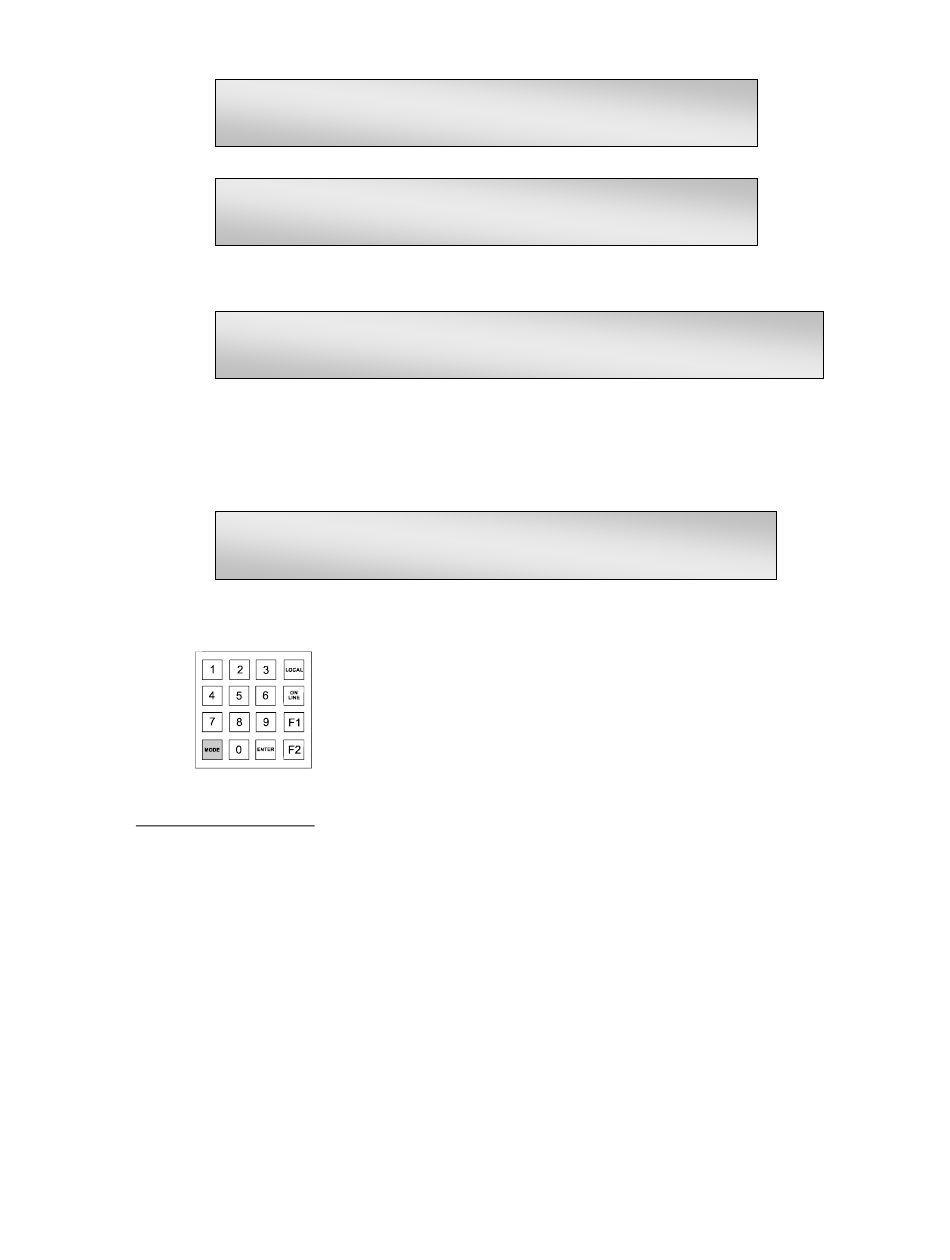

0=EXIT, 1=NEXT PAGE. 4= MOVE ON SYNC.
PULSE, 5 FOR MOVE ON STROBE PULSE
0=EXIT, 1=NEXT PAGE. PRESS 6 FOR MOVE ON
SYNC, INHIBITED BY THE STROBE LINE
Press 6 to view the MOVE ON SYNC, INHIBITED BY THE STROBE LINE menu.
NEXT FILTER ON SYNC, INHIBITED BY STROBE,
IS OFF. PRESS 1 TO TURN ON, 0 TO KEEP IT OFF
Press 1 to activate MOVE ON SYNC, INHIBITED BY STROBE and return to the MAIN
MENU or press 0 to abort the mode selection routine and retain the current mode setting.
The status of the operational mode will be indicated in the lower line of the MAIN MENU
display
10 = FILTER NUMBER,
INPUT = MANUAL

3.7.7 Edit a Filter Definition Mode

[MODE/7]

3.7.7.1 General Information

The optical pathway for light from the xenon lamp in the Lambda DG-4/5 is determined by
the angle at which the mirrors on the Input and Output galvanometers are positioned. The
Input Galvanometer directs the collimated light beam through one of the four FILTER
POSITIONS (shown below) and, thus, through whatever interference filter is installed there.
The angle of a Galvanometer is not expressed in degrees, here, but in an arbitrary unit whose
value ranges from 0 to 4095. The Input Galvanometer Value that defines the optimal light
path for each of the FILTER POSITIONS in your Lambda DG-4/5 has been determined at
the factory, and is provided on a separate Optical Alignment Data Sheet (see the example
shown below).
LAMBDA DG-4 & DG-5 OPERATION MANUAL – REV. 3.05C (20150414)
TURBO-BLANKING-
MOVE ON SYNC/STROBE
23
OFF
