0=EXIT, 1=NEXT PAGE. 4= MOVE ON SYNC.
PULSE, 5 FOR MOVE ON STROBE PULSE
0=EXIT, 1=NEXT PAGE. PRESS 6 FOR MOVE ON
SYNC, INHIBITED BY THE STROBE LINE
0=EXIT, 1=NEXT PAGE. 7 = EDIT A FILTER
DEFINITION, 8 = SETUP THE RING BUFFER
Pressing 1 again at this point will not produce further screens.
The above menus are of informational value, only. Once the MODE button has been pressed
any one of the seven operational modes presented (# 2 through 8) can be selected by pressing
the corresponding numeric key. For example, to set the MOVE ON SYNC PULSE mode,
simply press the MODE key, followed by the 4 key to directly access that mode's menu.

3.7.3 Move on Command Mode

[1 through 15]

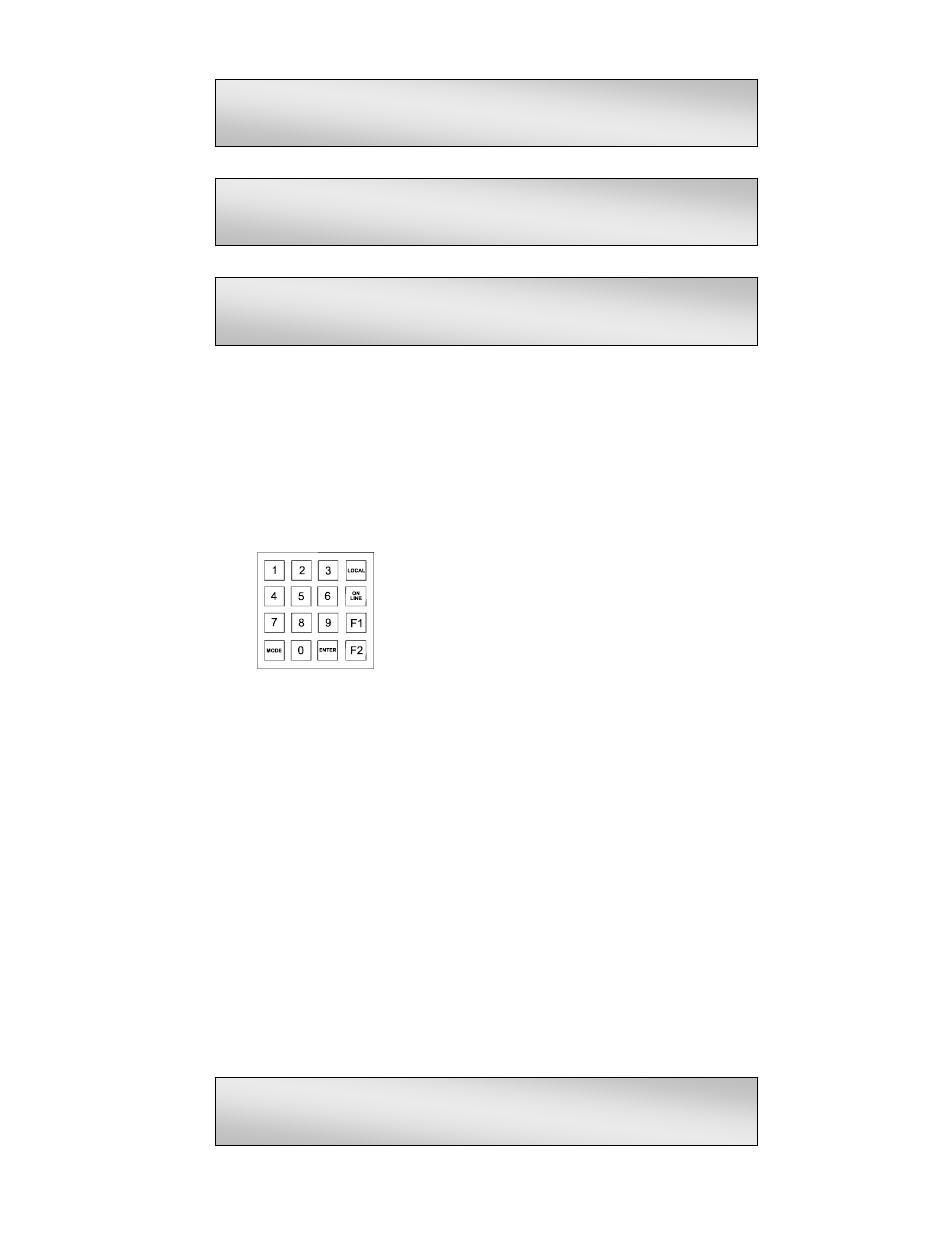

Selecting a new filter: The numeric keys.
MOVE ON COMMAND mode and under LOCAL control ("manual mode") when it starts up,
unless remote commands are waiting on an interfaced device connected to an input port. The
default FILTER NUMBER will be 0, yielding no light output. Selection of a new FILTER
NUMBER is made using the keypad, and will immediately yield light through the FILTER
POSITION and at the ATTENUATION level previously programmed for that FILTER
NUMBER value (see the section on SETUP modes). Under LOCAL control, the filter is
selected by entering a value in the range of 0 to 15. If a single digit value is desired, the user
may either press 0 and then the correct numeric key or just the single correct numeric key
followed by ENTER. If the value is a 2-digit number, press the correct 2 keys (1 and then the
second key) but do not press ENTER. Pressing ENTER without first pressing a numeric key
will select 0. Consequently, if you press a 2-digit number correctly and then press ENTER
you will briefly select the filter you desired and then filter 0 (closing the "shutter"). The
following examples demonstrate the two methods of entering a single digit FILTER
NUMBER (8 in this case).
Method 1: The main menu would look like this if the initial FILTER NUMBER = 10
10 = FILTER NUMBER,
INPUT = MANUAL
By default, the Lambda DG-4/5 will be in the
LAMBDA DG-4 & DG-5 OPERATION MANUAL – REV. 3.05C (20150414)
TURBO-BLANKING- OFF
MOVE ON COMMAND
