14
computer interface, you do not need to switch on the LAMP before turning on the MAIN
switch. The following message will be briefly displayed on the front panel when the MAIN
switch is turned on:
SUTTER FAST FILTER CONTROLLER PROGRAM
COPYRIGHT SUTTER INSTRUMENT CORP. 2006
After a few seconds the MAIN MENU will be displayed:
OFF= FILTER NUMBER,
INPUT = MANUAL
At this point, the Controller subsystem is ready for operation.
When the unit is first turned on, the FILTER NUMBER display will read "OFF". This
indicates that the filter selecting mirrors have been positioned to prevent lamp output from
the device. The status of the TURBO-BLANKING feature (discussed below) is also shown;
OFF is the default setting for that feature when the controller is first powered up.
The second line of the display indicates if the unit is under local control and that the unit will
execute all commands as they are received.
The unit selects the PARALLEL MODE as the default remote interface at power on. If the
unit is under remote control at power on, the appropriate remote interface mode will be
automatically set and the display may change immediately to reflect any waiting computer
commands.

3.4 Top Panel Controls

3.4.1 Keypad

There are 16 keys on the Lambda DG-4/5 keypad. The numerical keys 0 to 9 and six function
keys. Keys are read while depressed but the appropriate action will occur only when the key
is released. If a key is pressed while a move is in progress but released after the move is over,
the key will read normally. Keys pressed and released while a move is in progress are ignored.

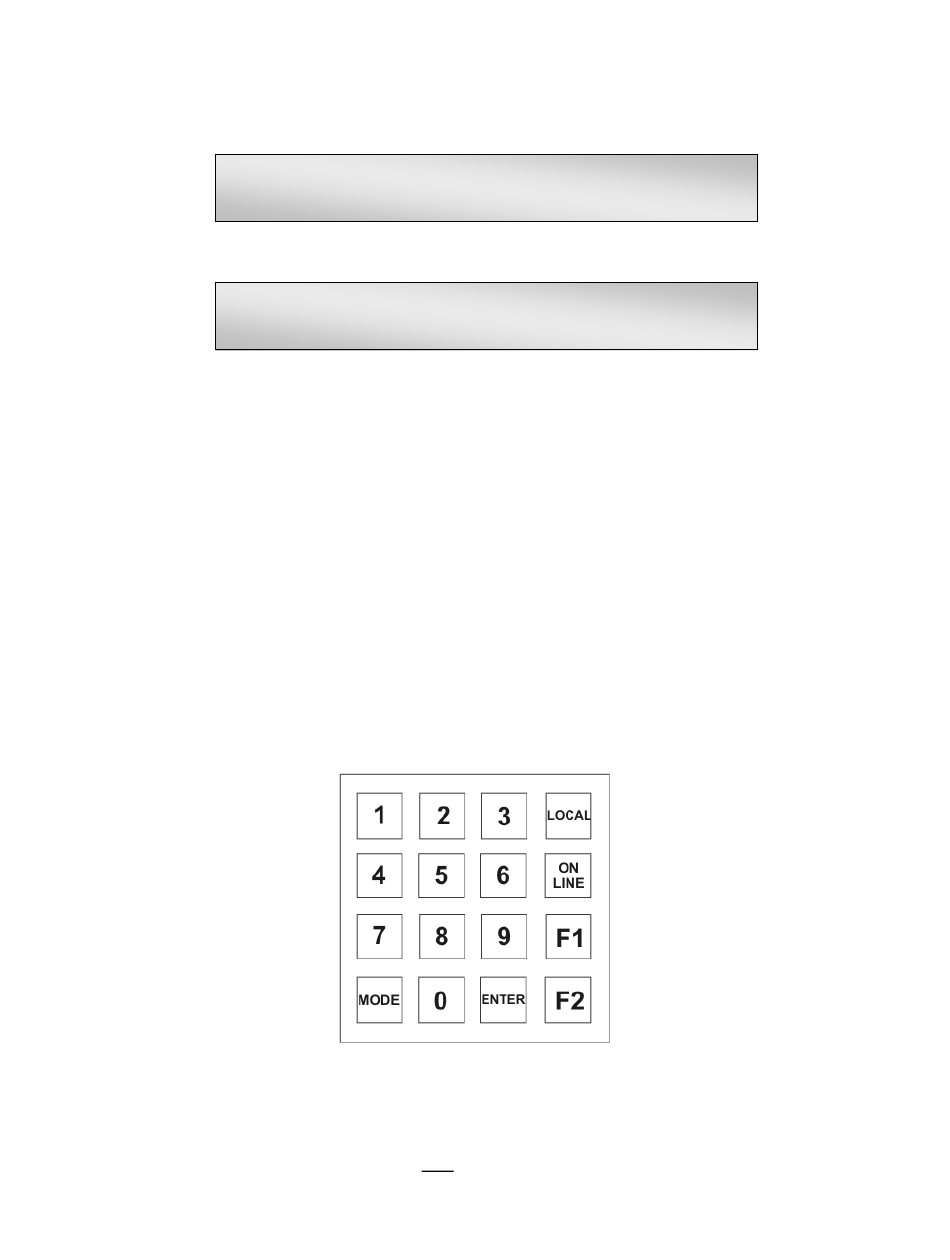

Figure 3-1. Keypad (top panel).

LAMBDA DG-4 & DG-5 OPERATION MANUAL – REV. 3.05C (20150414)
TURBO-BLANKING- OFF
MOVE ON COMMAND
