Condumax II User's Manual
3.6

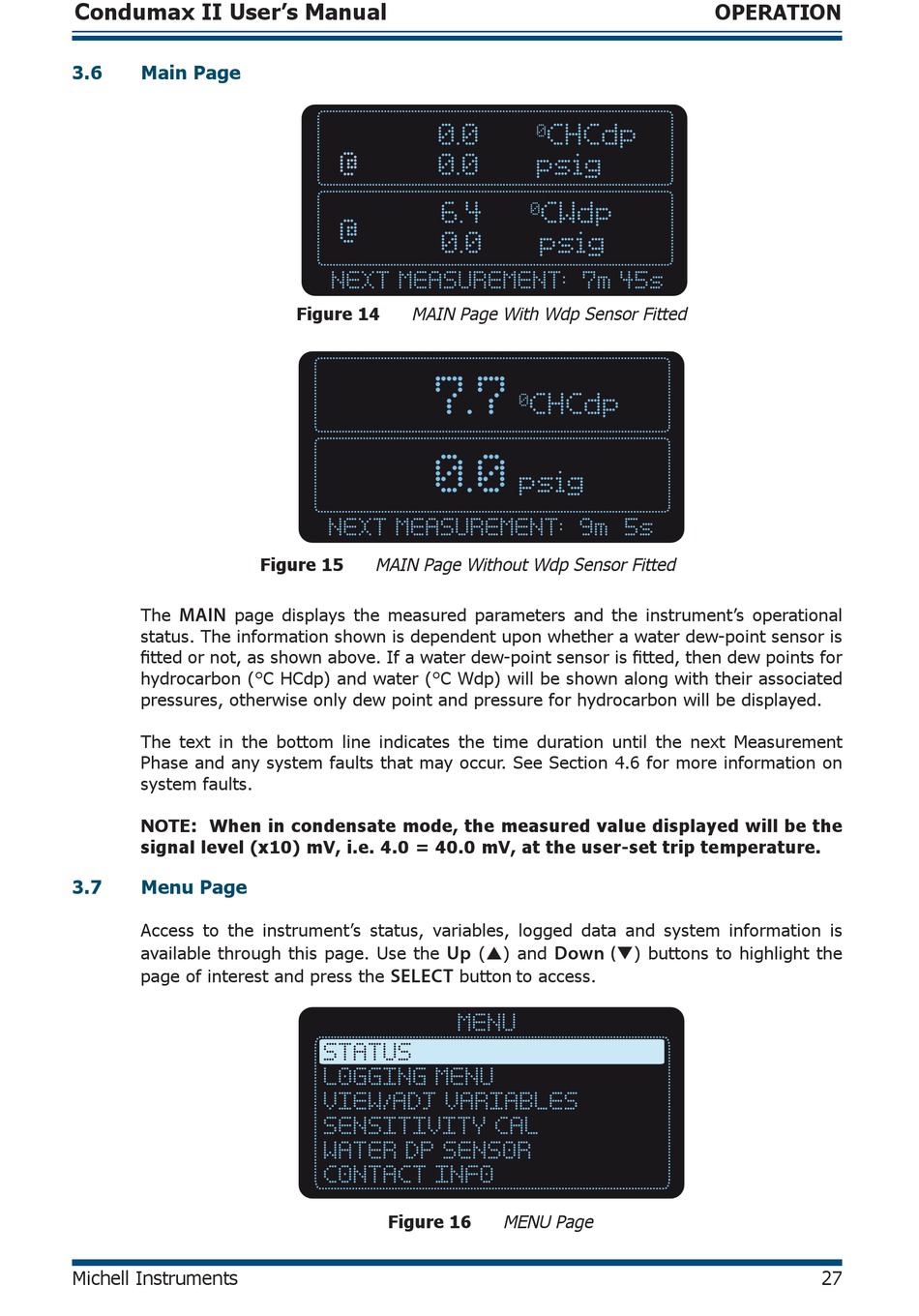

Main Page

The page displays the measured parameters and the instrument's operational
MAIN
status. The information shown is dependent upon whether a water dew-point sensor is
fi tted or not, as shown above. If a water dew-point sensor is fi tted, then dew points for
hydrocarbon (°C HCdp) and water (°C Wdp) will be shown along with their associated
pressures, otherwise only dew point and pressure for hydrocarbon will be displayed.
The text in the bottom line indicates the time duration until the next Measurement
Phase and any system faults that may occur. See Section 4.6 for more information on
system faults.
NOTE: When in condensate mode, the measured value displayed will be the
signal level (x10) mV, i.e. 4.0 = 40.0 mV, at the user-set trip temperature.
3.7

Menu Page

Access to the instrument's status, variables, logged data and system information is
available through this page. Use the
page of interest and press the
Michell Instruments
@
@
NEXT MEASUREMENT: 7m 45s
MAIN Page With Wdp Sensor Fitted
Figure 14
NEXT MEASUREMENT: 9m 5s
Figure 15 MAIN Page Without Wdp Sensor Fitted
SELECT
STATUS
LOGGING MENU
VIEW/ADJ VARIABLES
SENSITIVITY CAL
WATER DP SENSOR
CONTACT INFO
Figure 16
0.0 0 CHCdp
0.0 psig
6.4 CWdp
0
0.0 psig
7.7
CHCdp
0
0.0
psig
() and
Up Down (
button to access.
MENU
MENU Page
OPERATION
) buttons to highlight the
27
