Condumax II User's Manual
2

INSTALLATION

2.1

Electrical Safety

!
2.1.1

Equipment Ratings and Installation Details

The following mandatory statements refer to the Ex certifi ed Condumax Analyzer only
(not including the sampling system).
This equipment must be supplied with a voltage between the range of 90 to 260 V AC,
47/63 Hz. Maximum power rating is 125 W.
The power is connected via PL1 on the mains connector PCB.
All input and output connectors are 2-part PCB mounted type, rated at 300 V 10 A.
The detachable, screw terminal half of each connector is designed to accept 0.5 to
2.5mm
[24 -12 AWG] stranded or solid conductors.
2
Michell Instruments
During the installation of this product ensure that all
applicable national and local electrical safety regulations
Isolate the power prior to installation.
Always ensure that power is switched off prior to accessing
the product for any purpose other than normal operation or
prior to disconnecting any cables.

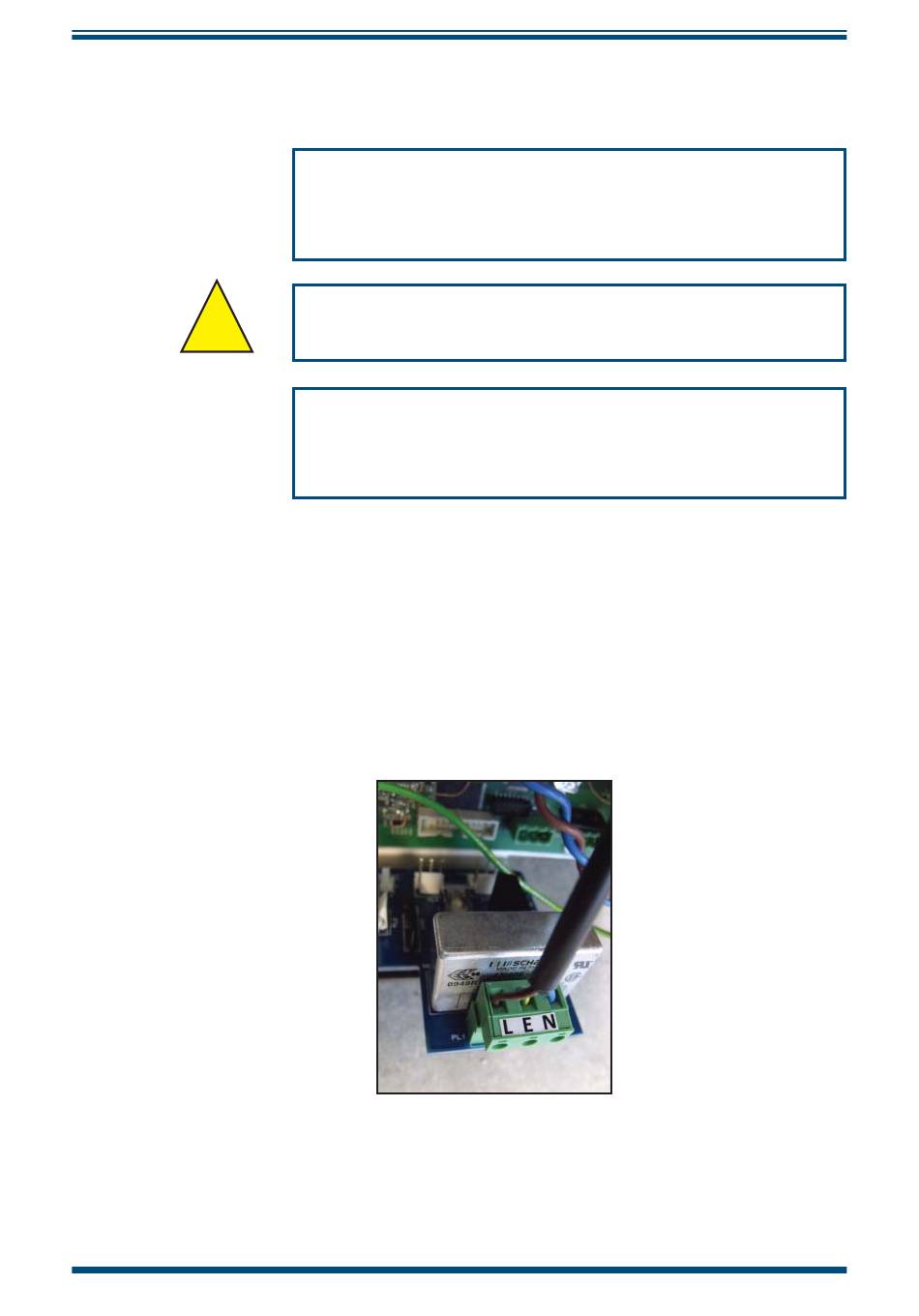

Figure 1
Power Connection Connector
WARNING:
are observed.
WARNING:
WARNING:
INSTALLATION
5
