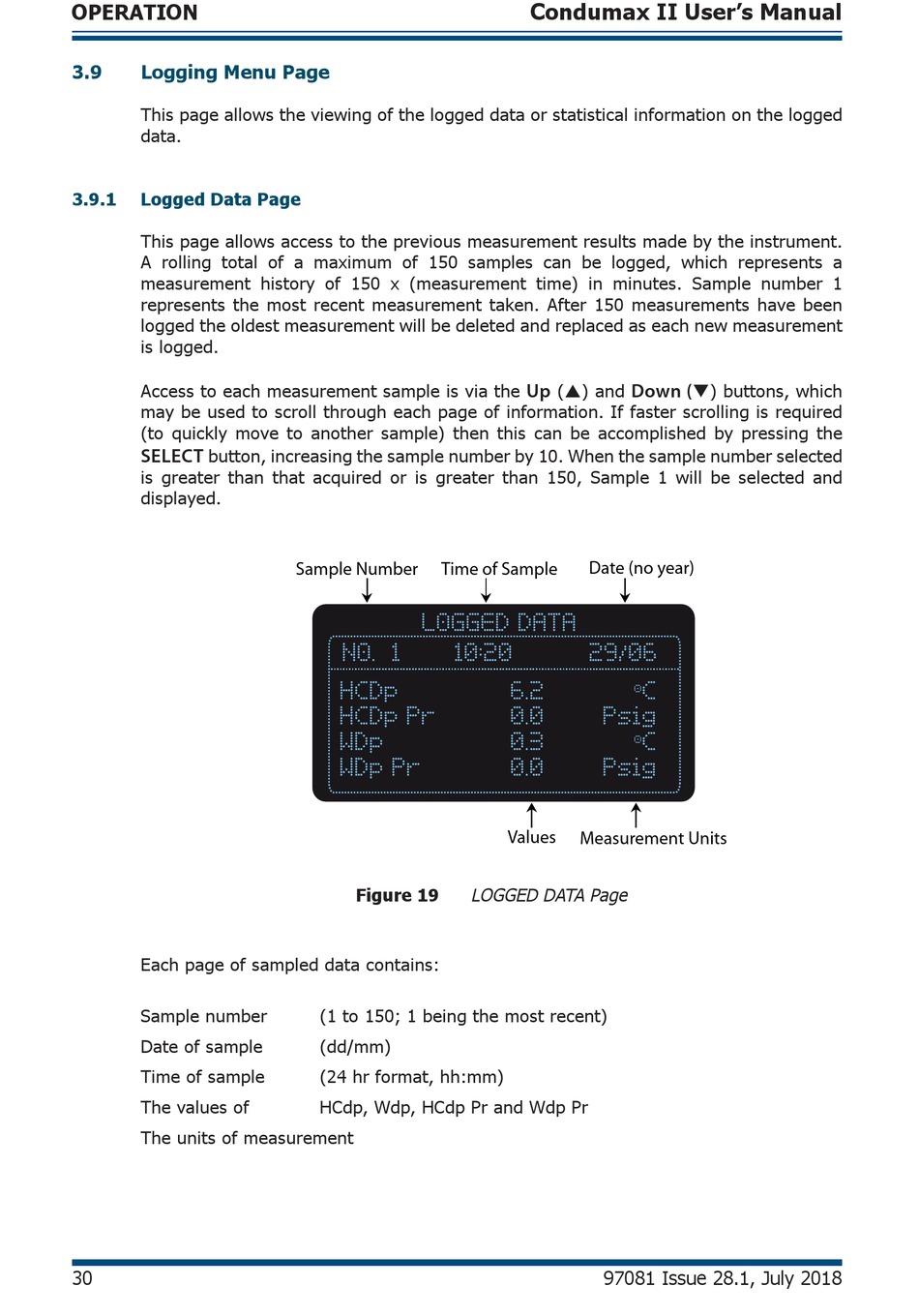

Logging Menu Page; Logged Data Page; Figure 19 Logged Data Page - Michell Instruments Condumax II User Manual

OPERATION
3.9

Logging Menu Page

This page allows the viewing of the logged data or statistical information on the logged
data.
3.9.1

Logged Data Page

This page allows access to the previous measurement results made by the instrument.
A rolling total of a maximum of 150 samples can be logged, which represents a
measurement history of 150 x (measurement time) in minutes. Sample number 1
represents the most recent measurement taken. After 150 measurements have been
logged the oldest measurement will be deleted and replaced as each new measurement
is logged.
Access to each measurement sample is via the
may be used to scroll through each page of information. If faster scrolling is required
(to quickly move to another sample) then this can be accomplished by pressing the
button, increasing the sample number by 10. When the sample number selected
SELECT
is greater than that acquired or is greater than 150, Sample 1 will be selected and
displayed.
Each page of sampled data contains:
Sample number
Date of sample
Time of sample
The values of
The units of measurement
30
Sample Number Time of Sample

LOGGED DATA
NO. 1 10:20
HCDp
HCDp Pr
WDp
WDp Pr
Figure 19
(1 to 150; 1 being the most recent)
(dd/mm)
(24 hr format, hh:mm)
HCdp, Wdp, HCdp Pr and Wdp Pr
Condumax II User's Manual
() and
Up Down (
Date (no year)
 
29/06
6.2 C
o
0.0 Psig
0.3 C
o
0.0 Psig
Values
Measurement Units
LOGGED DATA Page
97081 Issue 28.1, July 2018
) buttons, which
