INSTALLATION
Any power connection cable should be 3 core over sleeved, with minimum 0.5mm
insulation and rated at 300 V. Cables should have Live (L), Neutral (N) and Earth
[Ground] (E) conductors. Ensure suitably rated power supply cables and glands are
used to ensure that electrical safety is maintained. Connect each of the Live (L), Neutral
(N) and Earth [Ground] (E) conductors to the similarly marked terminals (L, N, E) on the
Power In connector shown in Figure 1. Ensure the power supply can deliver suffi cient
power consumption requirement.
Any power supply terminals and voltages must be suitably separated from the other I/O
requirements of this product.
Before applying power, perform a continuity test to ensure that the power supply cable
and product are effectively connected to the protective Earth.
The Protective Earth terminal is mounted internally and the Earth wire connected to it
should never be disconnected. The product enclosure is supplied with an external earth
stud at the lower right hand side. At installation, connect this earth stud to plant earth
by a minimum 4mm
nickel plated.
Fuse: A replacement fuse can be obtained by contacting Michell Instruments' technical
support. Fuse rating = 5 x 20mm 2.5 A anti-surge to IEC 60127-2.
This product is designed to operate, as a minimum, between a temperature range of -40
to +60°C, in maximum 80% relative humidity for temperatures up to +31°C decreasing
linearly to 50% RH at +50°C. Supply voltages of ±10% and transient over voltages
up to Overvoltage Category II. Pollution Degree 2. Altitudes up to 2000m. Outdoor
mounting is permitted using suitably rated glands equivalent to NEMA 4 / IP66. See
Appendix A, Technical Specifi cation for full operating parameters.
Do not remove or exchange any of the cables or electrical components supplied with
this product. Doing so will invalidate all warranties.
There are no additional or special electrical safety requirements other than those
referred to in this manual.
6
earthing bonding. M6 stud and 2 off M6 nuts and washers, all
2

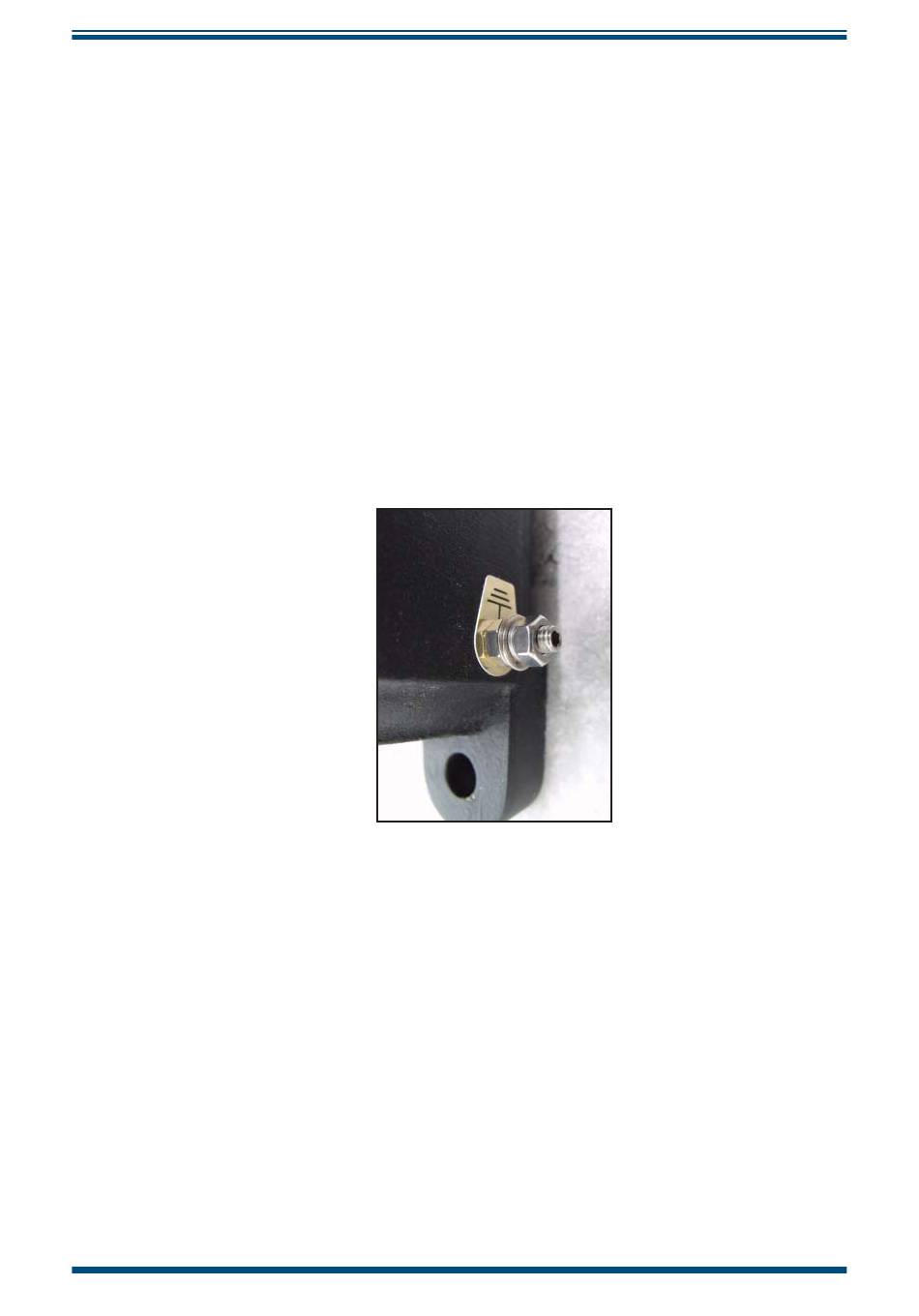

Earthing Stud And Nut Washer Assembly
Figure 2
Condumax II User's Manual
97081 Issue 28.1, July 2018
