Summary of Contents for Michell Instruments Condumax II

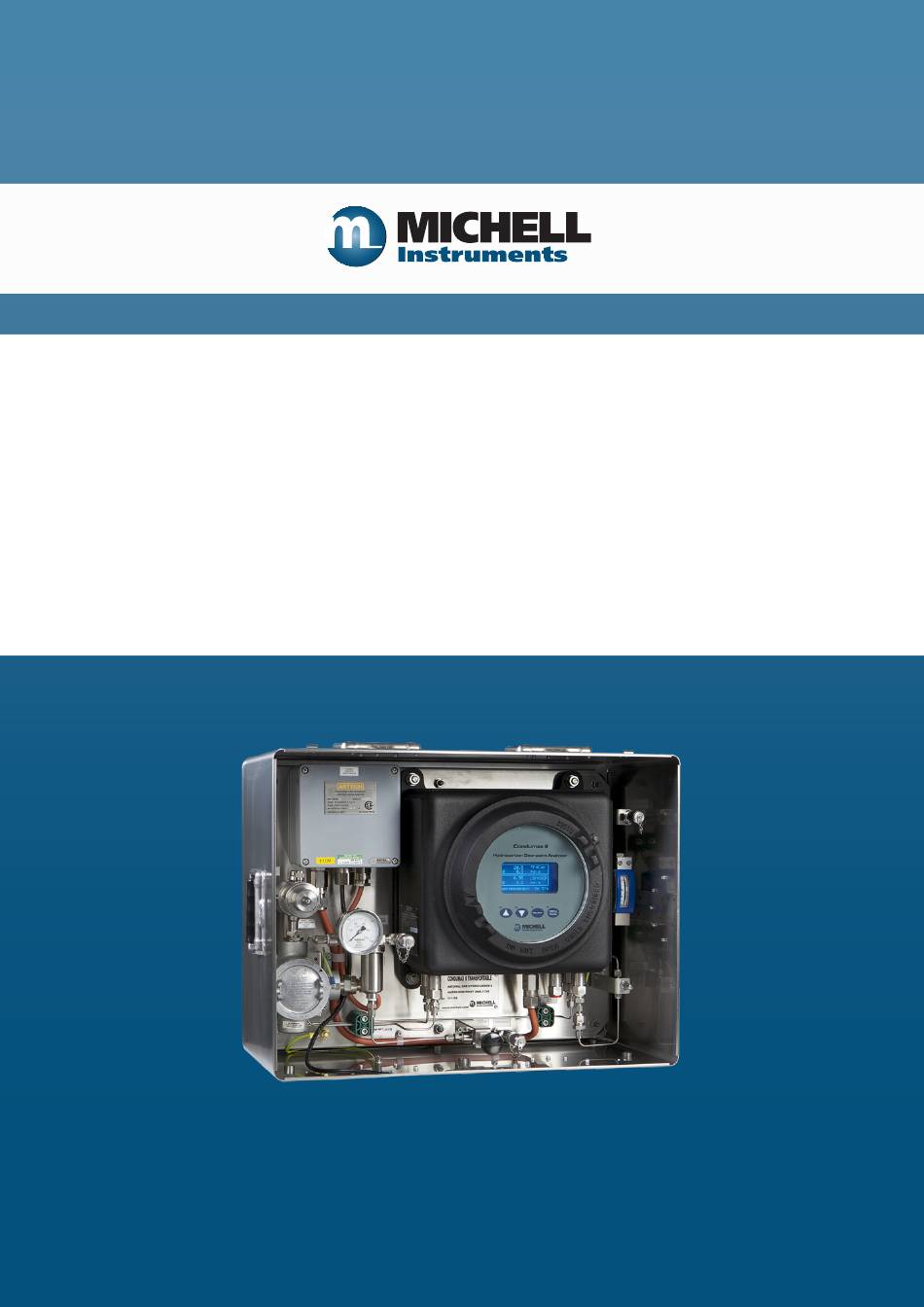

- Page 1 Condumax II Hydrocarbon & Water Dew-Point Analyzer Transportable Sampling System User’s Manual 97438 Issue 3 April 2019...
- Page 2 Please fill out the form(s) below for each instrument that has been purchased. Use this information when contacting Michell Instruments for service purposes. Instrument Code Serial Number Invoice Date Location of Instrument Tag No Instrument Code Serial Number Invoice Date...
- Page 3 © 2018 Michell Instruments This document is the property of Michell Instruments Ltd. and may not be copied or otherwise reproduced, communicated in any way to third parties, nor stored in any Data Processing System without the express written authorization of Michell Instruments Ltd.
-
Page 4: Table Of Contents
Appendix B Hazardous Area Certification ..............16 Product Standards ............... 16 Product Certification ..............16 Global Certificates/Approvals for Condumax II Analyser ....16 Special Conditions of Use ............. 17 Maintenance and Installation ............17 Appendix C Quality, Recycling & Warranty Information ........... 19 Appendix D Analyzer Return Document &... -
Page 5: Safety
Michell Instruments’ worldwide offices contact information. Calibration The recommended calibration interval for the Condumax II Transportable is one year, unless it is to be used in a mission-critical application or in a dirty or contaminated environment in which case the calibration interval should be reduced accordingly. -
Page 6: Abbreviations
Condumax II Transportable Sampling System User’s Manual Abbreviations The following abbreviations are used in this manual: alternating current pressure unit (atmosphere) barg pressure unit (=100 kP or 0.987 atm) (gauge) °C degrees Celsius °F degrees Fahrenheit European Union HCdp hydrocarbon dew point... -
Page 7: Introduction
Sampling System User’s Manual INTRODUCTION The Condumax II Transportable Hydrocarbon Dew-Point Analyzer Sampling System should be used in conjunction with the Condumax II Hydrocarbon Dew-Point Analyzer User’s Manual. The sampling system is in a custom designed, heavy duty, 316 stainless steel carry case. -
Page 8: Figure 1 Flow Schematic
The water dew point is measured at full pipeline pressure, to determine the highest water dew point for the gas sample being analyzed. The complete Condumax II Hydrocarbon Dew-Point Analyzer Sampling System can be located close to the gas sample take-off point in a potentially explosive environment - suitable for IEC Zone 1 or 2 hazardous area, NEC Class 1, Division 1, Groups B, C, D. -
Page 9: Figure 2 Components
Condumax II Transportable INTRODUCTION Sampling System User’s Manual The gas handling components are as follows: Coalescing Filter (F1) Provides protection of the moisture sensor within the Condumax II instrument. Pressure Gauge (PG1) Provides indication of sample gas inlet pressure. Pressure Regulator (PR1) Allows the user to manually set the sample gas analysis pressure for hydrocarbon dew-point measurement. -
Page 10: Installation
Condumax II Transportable INSTALLATION Sampling System User’s Manual INSTALLATION The Sampling System should be transported in the horizontal position. Before operation follow the procedure below: Remove the lid of the case by undoing the 4 latch clips. Bring the sampling system into the vertical position, as indicated on the label on the side of the case. - Page 11 Condumax II Transportable INSTALLATION Sampling System User’s Manual Terminals are marked as follows: Terminal No. Output (As table: <column 1> number <column 2> text) 1 Modbus RS485 digital comms (Gnd) 2 Modbus RS485 digital comms (A) 3 Modbus RS485 digital comms (B) 4 Cable screen 5 Water Dew Point measurement current (–mA2)
-
Page 12: Orientation For Transportation/Storage And Operation
Condumax II Transportable OPERATION Sampling System User’s Manual Orientation for Transportation/Storage and Operation The Condumax II Transportable must NOT be transported in the upright/vertical orientation as the shock absorbent design is only effective in the horizontal position. Horizontal Orientation for Transportation/Storage... -
Page 13: Operation
(electrical) connections only have been disconnected. Before commencement of the start-up procedure ensure that the power connections to the Condumax II are fully isolated and, if necessary, observe the stipulated de-energization period of 45 minutes. -
Page 14: Sample Flow Start Up Procedure
OPERATION Sampling System User’s Manual Sample Flow Start Up Procedure Unscrew and remove the Condumax II flameproof enclosure cover after first loosening the hex grub screw. The user interface/display assembly uses two ¼-turn bayonet style fasteners, (finger operated), to secure it - turn clockwise to lock, counter- clockwise to release. -
Page 15: Figure 8 Pr1 Adjustment Point
The HCdp Pressure Regulator (PR1) is used to set the HCdp gas analysis pressure. Pressure is indicated on the main display of the Condumax II. It is normal practice for an analysis pressure of 27 barg (391 psig) to be set for... -
Page 16: Sample Flow Shut Down Procedure
Isolate the Sampling System from the power supply. If moving, transporting or storing the Condumax II, remove the sample hoses and refit the caps to the quick connect couplings. Note the orientation requirements in Section 2.1. -
Page 17: Pressure Regulator Temperature Control
Condumax II Transportable OPERATION Sampling System User’s Manual Pressure Regulator Temperature Control This operation will expose electrical parts operating at high voltage. Therefore, power must be isolated from the supply for the Sampling System before making adjustments. DANGER Electric Shock Risk The heated pressure regulator contains an adjustment for the temperature control set-point (factory-set to approximately +24ºC (+75°F)). -
Page 18: Maintenance
Maintenance of the Condumax II Transportable Hydrocarbon Dew-Point Analyzer Sampling System should be carried out with reference to the Condumax II Hydrocarbon Dew-point Analyzer User’s Manual. Routine maintenance of the system is confined to filter element replacements. - Page 19 Condumax II Transportable APPENDIX A Sampling System User’s Manual Appendix A Technical Specifications Michell Instruments...
-
Page 20: Appendix A Technical Specifications
Condumax II Transportable APPENDIX A Sampling System User’s Manual Appendix A Technical Specifications General Specifications Case 316 stainless steel Case Dimensions 640 x 490 x 330mm (25 x 19.3 x 13") Minimess quick connect, 316 stainless steel braided Gas Connections... - Page 21 Condumax II Transportable APPENDIX B Sampling System User’s Manual Appendix B Hazardous Area Certification Michell Instruments...
-
Page 22: Appendix B Hazardous Area Certification
Appendix B Hazardous Area Certification The Condumax II is certified compliant to the ATEX Directive and IECEx for use within Zone 1 and Zone 2 Hazardous Areas. The Condumax II is certified compliant to North American Standards (USA and Canada) for use within Class I, Division 1, Groups B, C and D. -
Page 23: Special Conditions Of Use
Maintenance and servicing of the product must only be carried out by suitably trained personnel or returned to an approved Michell Instruments’ Service Center. Michell Instruments... - Page 24 Condumax II Transportable APPENDIX D Sampling System User’s Manual Appendix C Quality, Recycling & Warranty Information 97438 Issue 3, April 2019...
-
Page 25: Appendix C Quality, Recycling & Warranty Information
Sampling System User’s Manual Appendix C Quality, Recycling & Warranty Information Michell Instruments is dedicated to complying to all relevant legislation and directives. Full information can be found on our website at: www.michell.com/compliance This page contains information on the following directives: •... - Page 26 Condumax II Transportable APPENDIX E Sampling System User’s Manual Appendix D Analyzer Return Document & Decontamination Declaration 97438 Issue 3, April 2019...
-
Page 27: Appendix D Analyzer Return Document & Decontamination Declaration
Has the equipment been cleaned and decontaminated? NOT NECESSARY Michell Instruments will not accept instruments that have been exposed to toxins, radio-activity or bio-hazardous materials. For most applications involving solvents, acidic, basic, flammable or toxic gases a simple purge with dry gas (dew point <-30°C) over 24 hours should be sufficient to decontaminate the unit prior to return. - Page 28 http://www.michell.com...
