Condumax II User's Manual

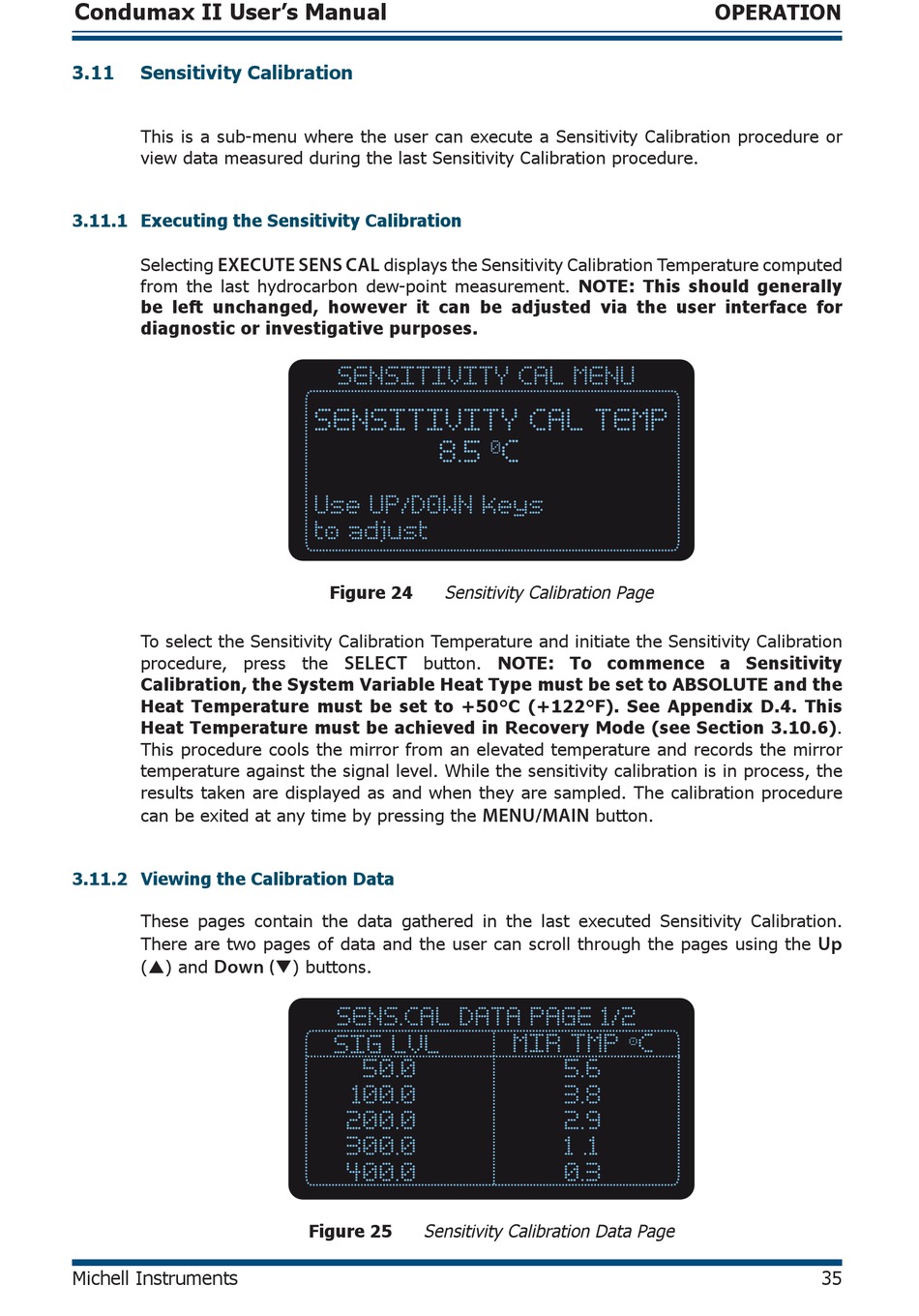

3.11

Sensitivity Calibration

This is a sub-menu where the user can execute a Sensitivity Calibration procedure or
view data measured during the last Sensitivity Calibration procedure.

3.11.1 Executing the Sensitivity Calibration

Selecting
EXECUTE SENS CAL
from the last hydrocarbon dew-point measurement. NOTE: This should generally
be left unchanged, however it can be adjusted via the user interface for
diagnostic or investigative purposes.
To select the Sensitivity Calibration Temperature and initiate the Sensitivity Calibration
procedure, press the
Calibration, the System Variable Heat Type must be set to ABSOLUTE and the
Heat Temperature must be set to +50°C (+122°F). See Appendix D.4. This
Heat Temperature must be achieved in Recovery Mode (see Section 3.10.6).
This procedure cools the mirror from an elevated temperature and records the mirror
temperature against the signal level. While the sensitivity calibration is in process, the
results taken are displayed as and when they are sampled. The calibration procedure
can be exited at any time by pressing the

3.11.2 Viewing the Calibration Data

These pages contain the data gathered in the last executed Sensitivity Calibration.
There are two pages of data and the user can scroll through the pages using the
() and
Down (
Michell Instruments
displays the Sensitivity Calibration Temperature computed
SENSITIVITY CAL MENU
SENSITIVITY CAL TEMP
8.5
Use UP/DOWN keys
to adjust
Figure 24 Sensitivity Calibration Page
button. NOTE: To commence a Sensitivity
SELECT
) buttons.
SENS.CAL DATA PAGE 1/2
SIG LVL
50.0
100.0
200.0
300.0
400.0
Figure 25 Sensitivity Calibration Data Page
C
0
button.
MENU/MAIN
MIR TMP C
o
5.6
3.8
2.9
1 .1
0.3
OPERATION
Up
35
