Measurement System; Figure 3 Condumax Dimensions - Michell Instruments Condumax II User Manual

INSTALLATION
2.5

Measurement System

Refer to the Installation & Maintenance Information sheet (supplied separately) and the
System Drawings in Appendix A.
The instrument is housed in an aluminum EExd enclosure suitable for wall or panel
mounting. Four mounting points are available with M12 clearance holes on fi xing centres
of X = 270mm (10.62") x Y = 318mm (12.51").
The dimensions of the enclosure are:
Height:
Width:
Depth:
The enclosure provides environmental ingress protection IP66/NEMA 4 and should be
mounted vertically in a location free of any appreciable vibration. It should be placed in
a shaded position to prevent heating effects through sun radiation.
The weight of the analyzer is 25kg (55lbs).
245mm 9.65"
10
355mm (13.9"), 500mm (19.68") including installation clearance
310mm (12.20"), 500mm (19.68") including installation clearance
245mm (9.64")
Water Dew-Point Channel
Flame Arrestor
1/8" NPT Female (ATEX/IECEx/CSA)
Hydrocarbon Dew-Point Channel
Flame Arrestor
1/8" NPT Female (ATEX/IECEx/CSA)

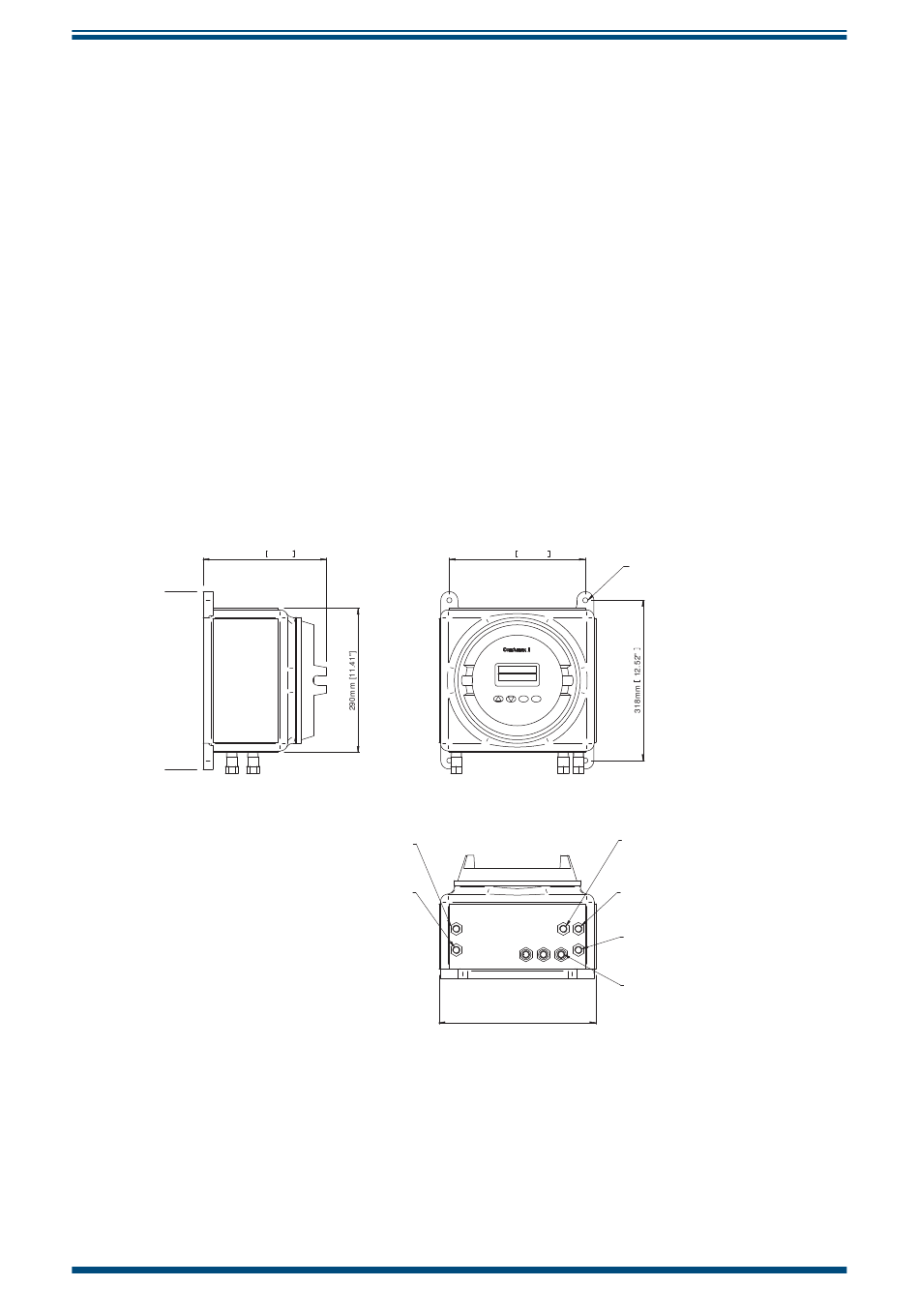

Figure 3
Condumax II User's Manual
270mm 10.63"
4 off M12 (1/2")
Clearance
Enclosure Breather
Flame Arrestor
Do NOT obscure
Hydrocarbon Dew-Point Channel
Flame Arrestor
1/8" NPT Female (ATEX/IECEx/CSA)
Water Dew-Point Channel
Flame Arrestor
1/8" NPT Female (ATEX/IECEx/CSA)
Cable Entry Glands
3 off M20 (ATEX)
3 off M20 -> 1/2" NPT Thread Adaptor (CSA)
310mm [12.20"]
Condumax Dimensions
