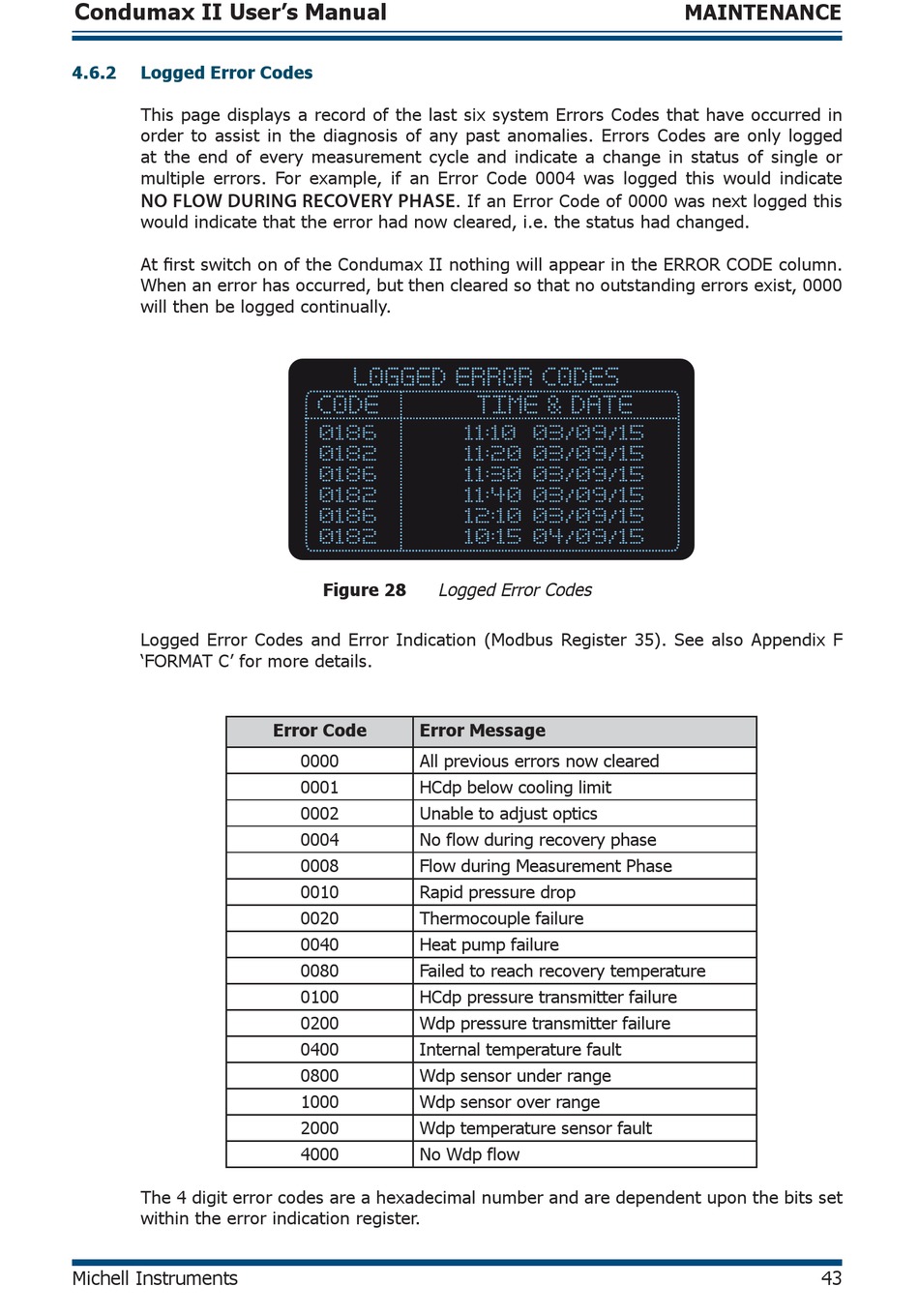

Logged Error Codes

This page displays a record of the last six system Errors Codes that have occurred in
order to assist in the diagnosis of any past anomalies. Errors Codes are only logged
at the end of every measurement cycle and indicate a change in status of single or
multiple errors. For example, if an Error Code 0004 was logged this would indicate
NO FLOW DURING RECOVERY PHASE
would indicate that the error had now cleared, i.e. the status had changed.
At fi rst switch on of the Condumax II nothing will appear in the ERROR CODE column.
When an error has occurred, but then cleared so that no outstanding errors exist, 0000
will then be logged continually.
Logged Error Codes and Error Indication (Modbus Register 35). See also Appendix F
'FORMAT C' for more details.
The 4 digit error codes are a hexadecimal number and are dependent upon the bits set
within the error indication register.
Michell Instruments
LOGGED ERROR CODES
CODE
0186
0182
0186
0182
0186
0182
Logged Error Codes
Figure 28
Error Code Error Message
0000 All previous errors now cleared
0001 HCdp below cooling limit
0002 Unable to adjust optics
0004 No flow during recovery phase
0008 Flow during Measurement Phase
0010 Rapid pressure drop
0020 Thermocouple failure
0040 Heat pump failure
0080 Failed to reach recovery temperature
0100 HCdp pressure transmitter failure
0200 Wdp pressure transmitter failure
0400 Internal temperature fault
0800 Wdp sensor under range
1000 Wdp sensor over range
2000 Wdp temperature sensor fault
4000 No Wdp flow
. If an Error Code of 0000 was next logged this
TIME & DATE
11:10 03/09/15
11:20 03/09/15
11:30 03/09/15
11:40 03/09/15
12:10 03/09/15
10:15 04/09/15
