Application Set-up Examples

6 Application Set-up Examples
The examples in this section are intended as a quick
reference for common applications.
•
Parameter settings are the regional default values
unless otherwise indicated (selected in parameter
0-03 Regional Settings).
•
Parameters associated with the terminals and
their settings are shown next to the drawings.
•
6 6 Where switch settings for analog terminals A53 or
A54 are required, these are also shown.
NOTICE!
When the optional STO feature is used, a jumper wire
may be required between terminal 12 (or 13) and
terminal 37 for the adjustable frequency drive to operate
when using factory default programming values.

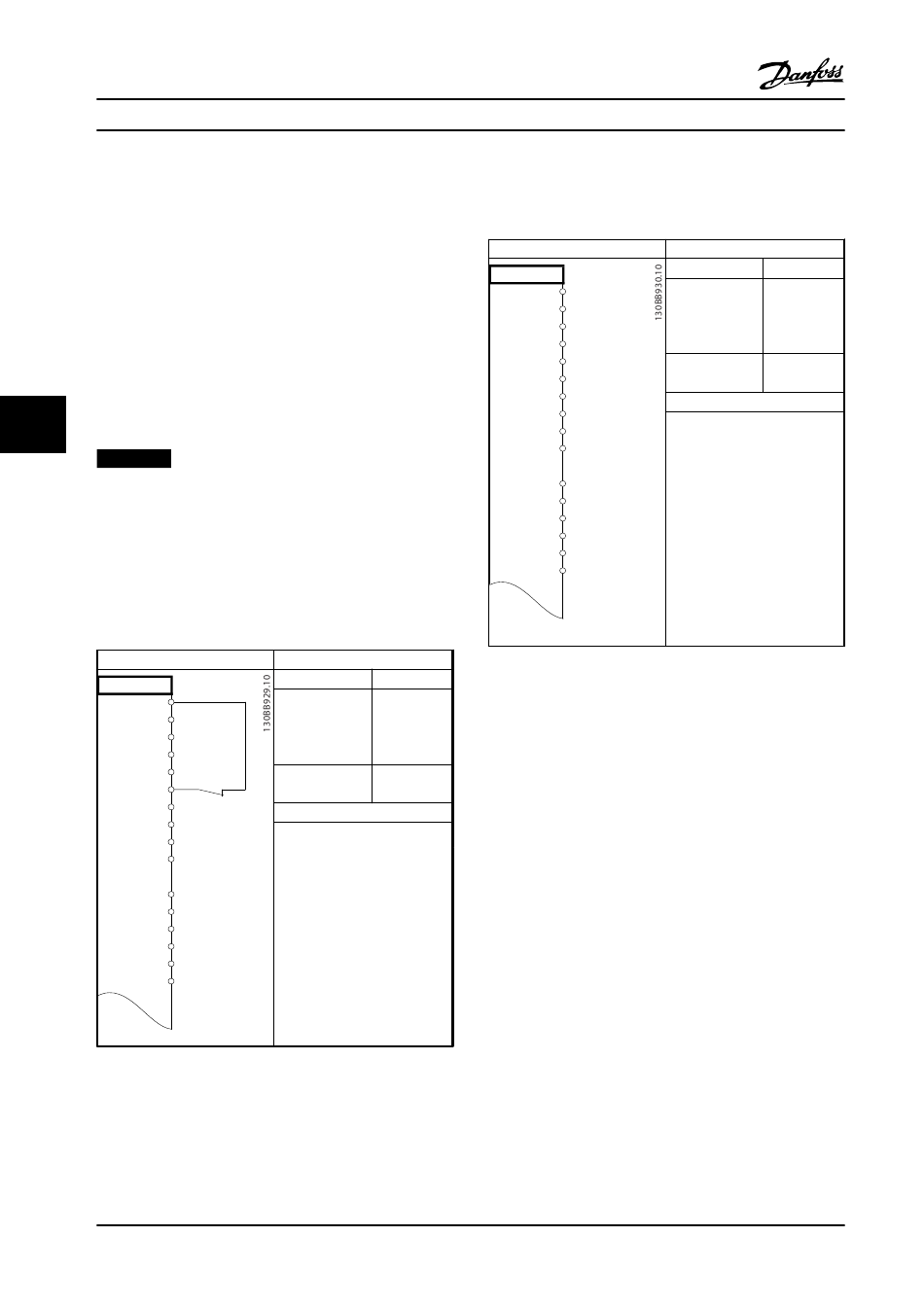

6.1 Application Examples
6.1.1 AMA
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.1 AMA with T27 connected
32
Instruction Manual
Parameters
Function Setting
1-29 Automatic [1] Enable
Motor complete
Adaptation AMA
(AMA)
5-12 Terminal 27 [2]* Coast
Digital Input inverse
* = Default Value
Notes/comments:
Parameter group 1-2* Motor
Data must be set according to
motor
D IN 37 is an option.
Danfoss A/S © Rev. 09/2014 All rights reserved.
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.2 AMA without T27 connected
Parameters
Function Setting
1-29 Automatic [1] Enable
Motor complete
Adaptation AMA
(AMA)
5-12 Terminal 27 [0] No
Digital Input operation
* = Default Value
Notes/comments:
Parameter group 1-2* Motor
Data must be set according to
motor
D IN 37 is an option.
MG33AP22
