Application Set-up Examples

6 Application Set-up Examples
The examples in this section are intended as a quick
reference for common applications.
•
Parameter settings are the regional default values
unless otherwise indicated (selected in
0-03 Regional Settings)
•
Parameters associated with the terminals and
their settings are shown next to the drawings
•
Where switch settings for analog terminals A53 or
A54 are required, these are also shown
6 6
NOTICE
When the optional Safe Torque Off feature is used, a
jumper wire may be required between terminal 12 (or
13) and terminal 37 for the frequency converter to
operate when using factory default programming values.

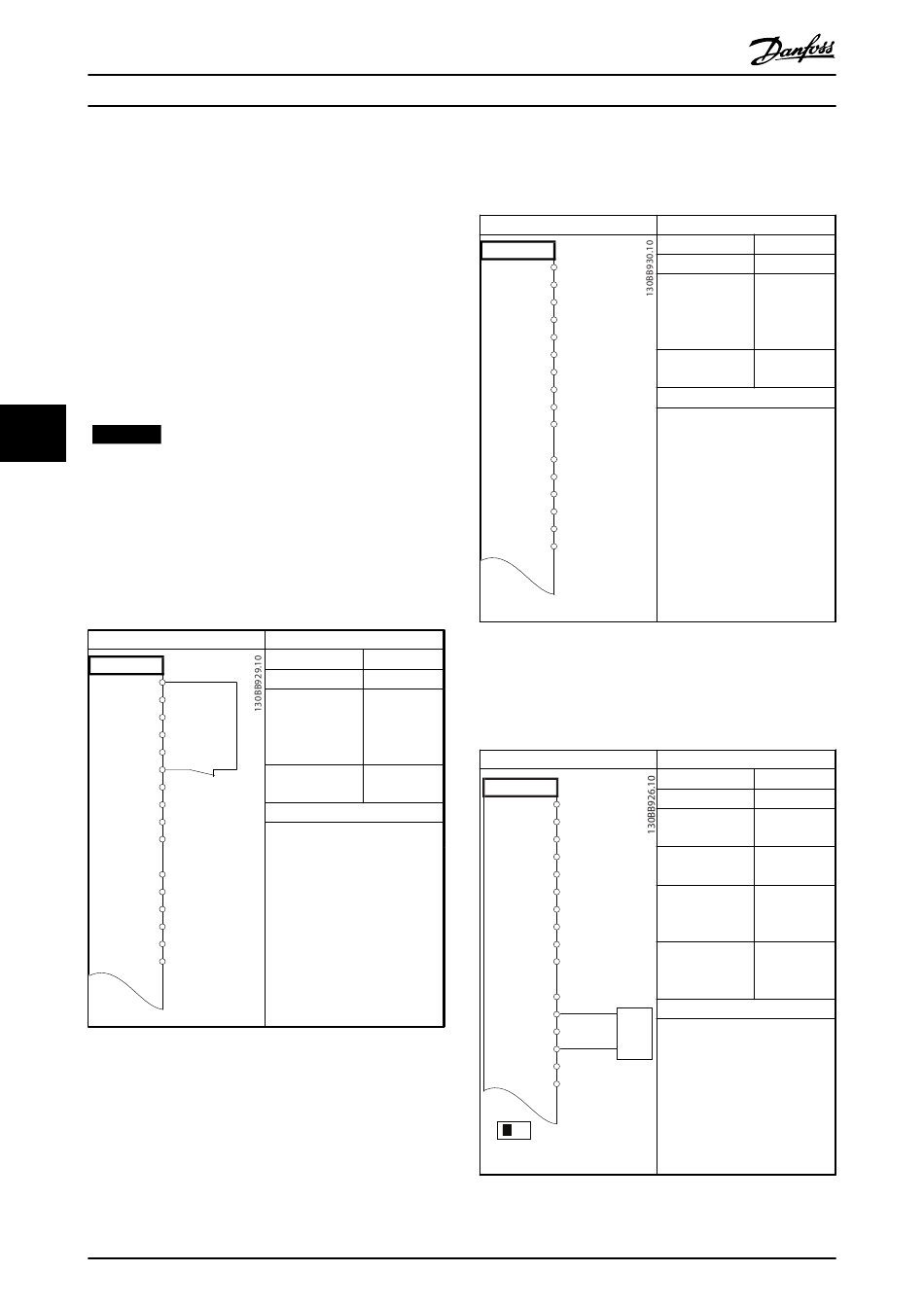

6.1 Application Examples
6.1.1 AMA
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.1 AMA with T27 Connected
28
®
VLT AutomationDrive FC 301/302 Operating Instructions
Parameters
Function Setting
1-29 Automatic
Motor [1] Enable
Adaptation complete
(AMA) AMA
5-12 Terminal 27 [2]* Coast
Digital Input inverse
* = Default Value
Notes/comments:
Parameter group 1-2* must be
set according to motor
D IN 37 is an option.
MG33AN02 - Rev. 2013-09-06
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.2 AMA without T27 Connected
6.1.2 Speed
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
+
A IN
53
A IN
54
COM
55
-
A OUT
42
-10 - +10V
COM
39
U - I
A53
Table 6.3 Analog Speed Reference (Voltage)
Parameters
Function Setting
1-29 Automatic
Motor [1] Enable
Adaptation complete
(AMA) AMA
5-12 Terminal 27 [0] No
Digital Input operation
* = Default Value
Notes/comments:
Parameter group 1-2* must be
set according to motor
D IN 37 is an option.
Parameters
Function Setting
6-10 Terminal 53
Low Voltage 0.07 V*
6-11 Terminal 53 10 V*
High Voltage
6-14 Terminal 53 0 Hz
Low Ref./Feedb.
Value
6-15 Terminal 53 50 Hz
High Ref./Feedb.
Value
* = Default Value
Notes/comments:
D IN 37 is an option.
