Danfoss VLT AutomationDrive FC 301 Instruction Manual page 36

Application Set-up Examples
Speed
Reference
Start ( 18)
Freeze ref ( 27)
Speed up ( 29 )
Speed down ( 32 )
6 6

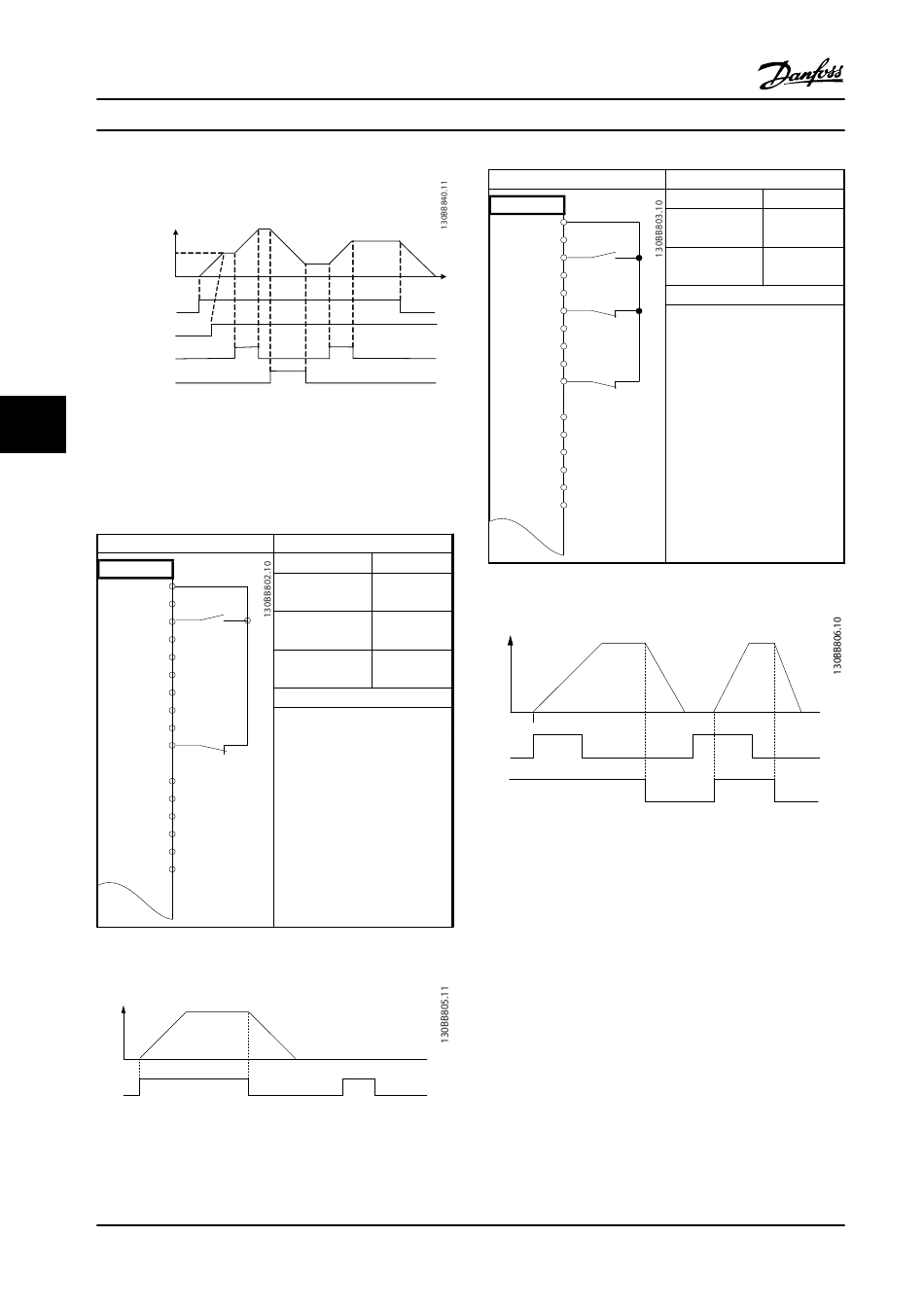

Figure 6.1 Speed Up/Down
6.1.3 Start/Stop
FC
12
+24 V
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.7 Start/Stop Command with Safe Stop Option
Speed
Start (18)
Figure 6.2 Start/Stop Command with Safe Stop
34
Instruction Manual
Parameters
Function Setting
5-10 Terminal 18 [8] Start*
Digital Input
5-12 Terminal 27 [0] No
Digital Input operation
5-19 Terminal 37 [1] Safe Stop
Safe Stop Alarm
* = Default Value
Notes/comments:
If 5-12 Terminal 27 Digital Input
is set to [0] No operation, a
jumper wire to terminal 27 is
not needed.
D IN 37 is an option.
Danfoss A/S © Rev. 09/2014 All rights reserved.
FC
+24 V 12
+24 V 13
D IN 18
19
D IN
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.8 Pulse Start/Stop
Speed
Latched Start (18)
Stop Inverse (27)
Figure 6.3 Latched Start/Stop Inverse
Parameters
Function Setting
5-10 Terminal 18 [9] Latched
Digital Input Start
5-12 Terminal 27 [6] Stop
Digital Input Inverse
* = Default Value
Notes/comments:
If 5-12 Terminal 27 Digital Input
is set to [0] No operation, a
jumper wire to terminal 27 is
not needed.
D IN 37 is an option.
MG33AP22
