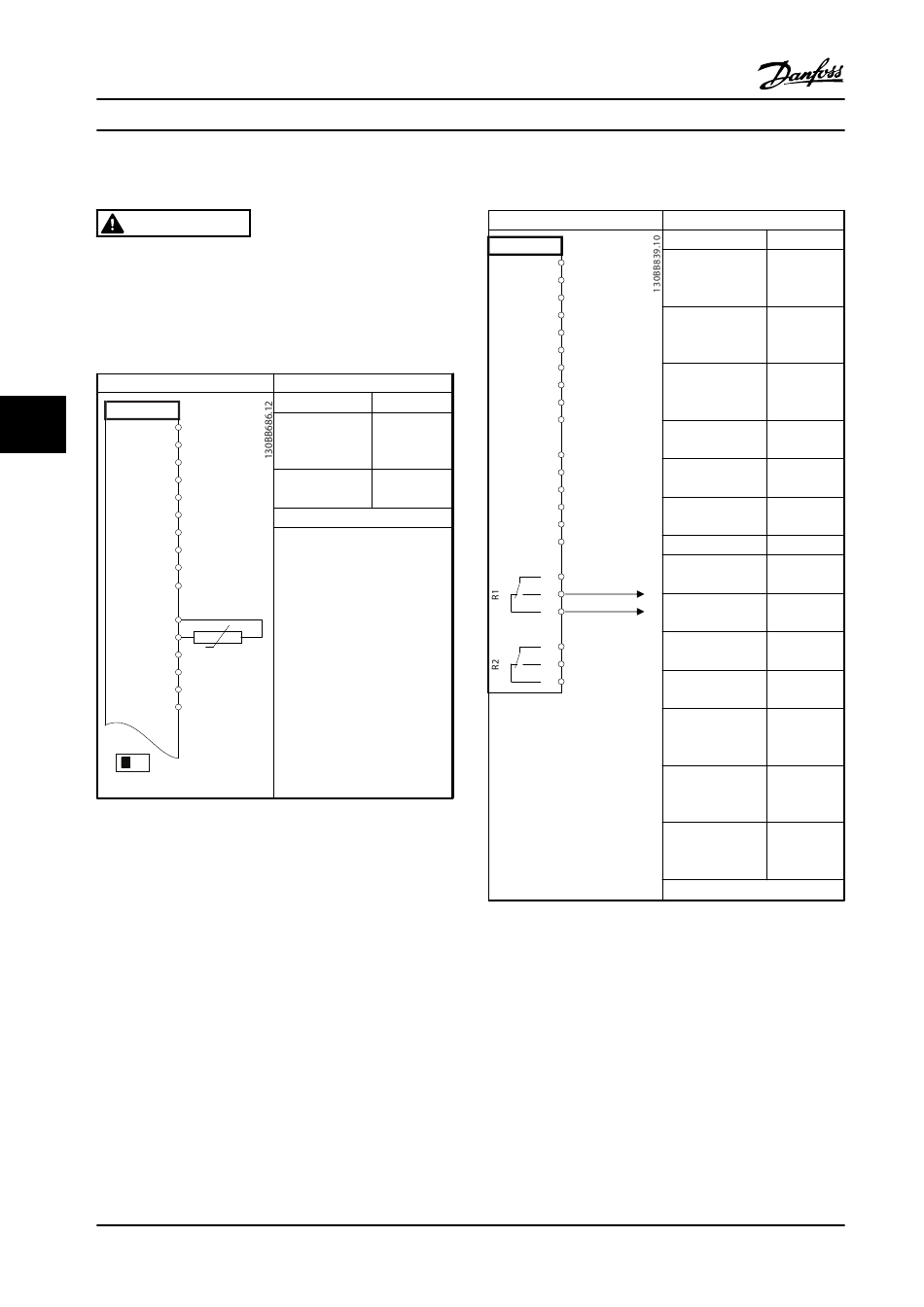

Application Set-up Examples
6.1.6 Motor Thermistor
WARNING
THERMISTOR INSULATION
Risk of personal injury or equipment damage.
•
Use only thermistors with reinforced or double
insulation to meet PELV insulation
requirements.
VLT
6 6
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN 37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 6.12 Motor Thermistor
36
Instruction Manual
Parameters
Function Setting
1-90 Motor [2]
Thermal Thermistor
Protection trip
1-93 Thermistor [1] Analog
Source input 53
* = Default Value
Notes/comments:
If only a warning is desired,
parameter 1-90 Motor Thermal
Protection should be set to
[1] Thermistor warning.
D IN 37 is an option.
Danfoss A/S © Rev. 09/2014 All rights reserved.
6.1.7 SLC
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
06
Parameters
Function Setting
4-30 Motor [1] Warning
Feedback Loss
Function
4-31 Motor 100 RPM
Feedback Speed
Error
4-32 Motor 5 s
Feedback Loss
Timeout
7-00 Speed PID [2] MCB 102
Feedback Source
17-11 Resolution 1024*
(PPR)
13-00 SL [1] On
Controller Mode
13-01 Start Event [19] Warning
13-02 Stop Event [44] Reset
key
13-10 Comparator [21] Warning
Operand no.
13-11 Comparator [1] ≈*
Operator
13-12 Comparator 90
Value
13-51 SL [22]
Controller Event Comparator
0
13-52 SL [32] Set
Controller Action digital out A
low
5-40 Function [80] SL
Relay digital
output A
*=Default Value
