5.5 Checking Motor Rotation

Before running the adjustable frequency drive, check the
motor rotation.
1. Press [Hand On].
2. Press [►] for positive speed reference.
3. Check that the speed displayed is positive.
When 1-06 Clockwise Direction is set to [0] Normal (default
clockwise):
4a. Verify that the motor turns clockwise.
5a. Verify that the LCP direction arrow is
clockwise.
When 1-06 Clockwise Direction is set to [1] Inverse (counter-
clockwise):
4b. Verify that the motor turns counter-clockwise.
5b. Verify that the LCP direction arrow is counter-
clockwise.

5.6 Checking Encoder Rotation

NOTICE!
When using an encoder option, refer to the option
manual.
Check encoder rotation only if encoder feedback is used.
Check encoder rotation in default open-loop control.
1. Verify that the encoder connection is according
to Figure 5.5:

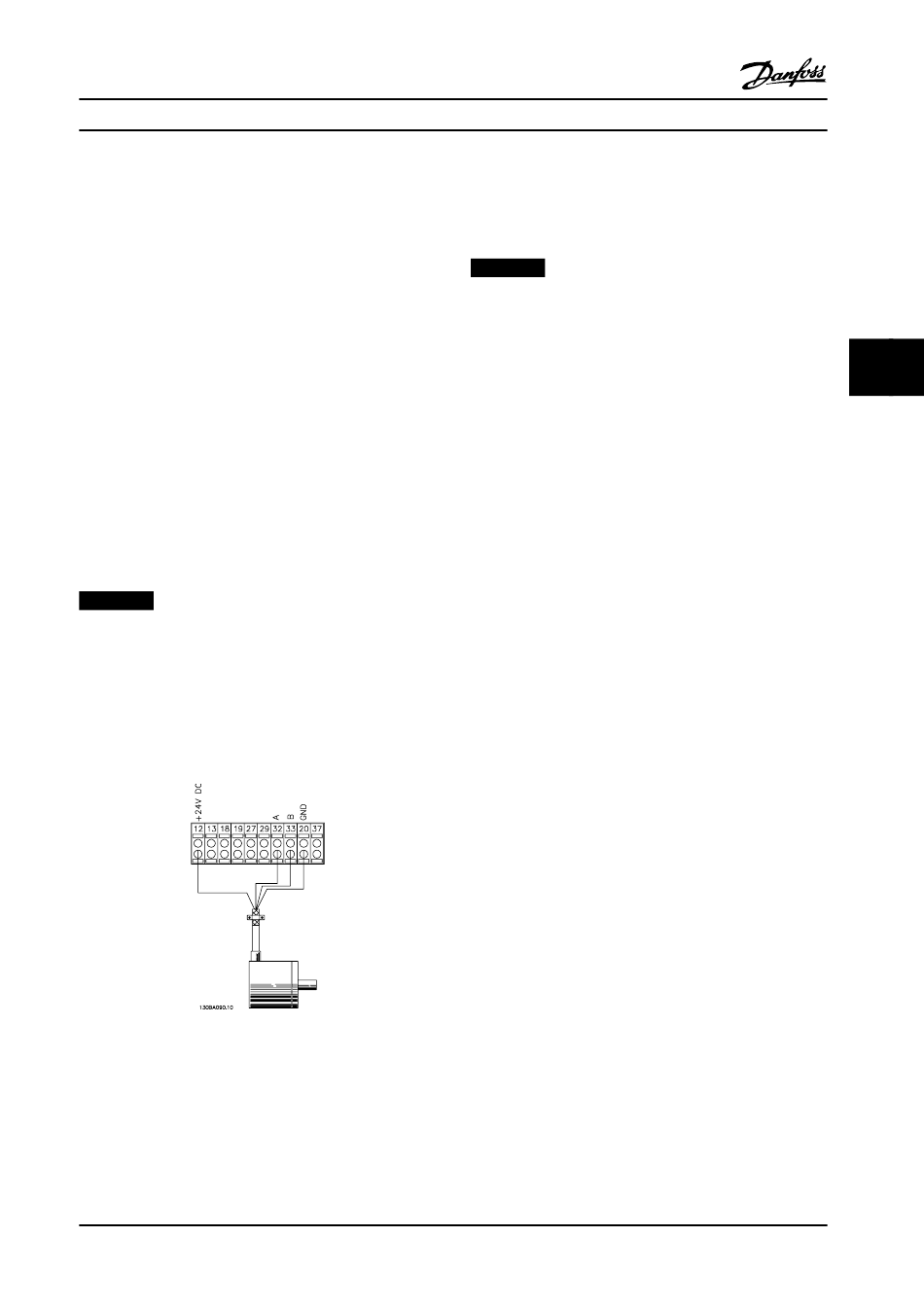

Figure 5.5 Wiring Diagram
2. Enter the speed PID feedback source in
7-00 Speed PID Feedback Source.
3. Press [Hand On].
MG33AP22
Instruction Manual
4.
5.
NOTICE!
If the feedback is negative, the encoder connection is
wrong!

5.7 Local Control Test

1.
2.
3.
4.
In the event of acceleration or deceleration problems, see
chapter 7.5 Troubleshooting. See chapter 7.4 List of Warnings
and Alarms for resetting the adjustable frequency drive
after a trip.

5.8 System Start-up

The procedure in this section requires user-wiring and
application programming to be completed. The following
procedure is recommended after application set-up is
completed.
1.
2.
3.
4.
5.
If warnings or alarms occur, see or chapter 7.4 List of
Warnings and Alarms.
