Application Set-Up Examples

6 Application Set-Up Examples

6.1 Introduction

NOTE!
A jumper wire may be required between terminal 12 (or
13) and terminal 27 for the Adjustable frequency drive to
operate when using factory default programming values.
See 2.4.1.1 Jumper Terminals 12 and 27 for details.
The examples in this section are intended as a quick
reference for common applications.
•
Parameter settings are the regional default values
unless otherwise indicated (selected in
0-03 Regional Settings)
•
Parameters associated with the terminals and
their settings are shown next to the drawings.
•
Where switch settings for analog terminals A53 or
A54 are required, these are also shown.

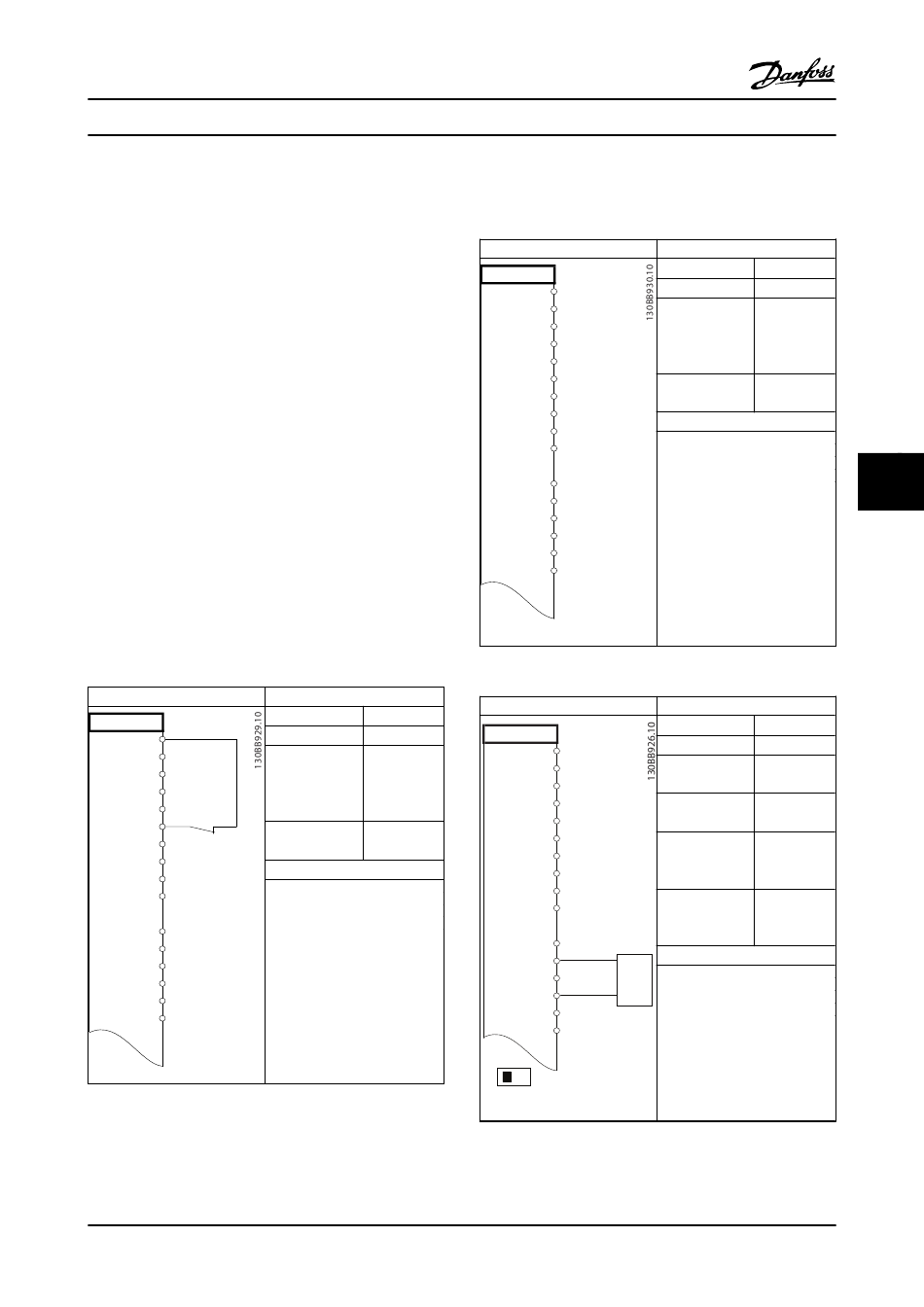

6.2 Application Examples

FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.1 AMA with T27 Connected
VLT ® AutomationDrive Instruction
Manual
Parameters
Function Setting
1-29 Automatic
Motor [1] Enable
Adaptation complete
(AMA) AMA
5-12 Terminal 27 [2]* Coast
Digital Input inverse
* = Default Value
Notes/comments: Parameter
group 1-2* must be set
according to motor
®
MG.33.AI.22 - VLT is a registered Danfoss trademark
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.2 AMA without T27 Connected
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
+
A IN
53
A IN
54
COM
55
-
A OUT
42
-10 - +10V
COM
39
U - I
A53
Table 6.3 Analog Speed Reference (Voltage)
Parameters
Function Setting
1-29 Automatic
Motor [1] Enable
Adaptation complete
(AMA) AMA
5-12 Terminal 27 [0] No
Digital Input operation
* = Default Value
Notes/comments: Parameter
group 1-2* must be set
according to motor
Parameters
Function Setting
6-10 Terminal 53
Low Voltage 0.07V*
6-11 Terminal 53 10V*
High Voltage
6-14 Terminal 53 0 RPM
Low Ref./Feedb.
Value
6-15 Terminal 53 1500 RPM
High Ref./Feedb.
Value
* = Default Value
Notes/comments:
