How to Install
frequency converter and tie it down with other control
wires.
Installation of 24 V external DC supply
•
Torque: 0.5 - 0.6 Nm (5 in-lbs)
•
Screw size: M3
Terminal
number
4 4
35 (-), 36 (+)
Table 4.21 Terminals for 24 V External DC Supply
24 V DC external supply can be used as low-voltage supply
to the control card and any option cards installed. This
enables full operation of the LCP (including parameter
setting) without connection to the mains. A warning of low
voltage is given when 24 V DC has been connected;
however, there is no tripping.
NOTICE
Use 24 V DC PELV supply to ensure correct galvanic
isolation (type PELV) on the control terminals of the
frequency converter.

4.1.17 Access to Control Terminals

All terminals to the control cables are located beneath the
LCP. They are accessed by opening the door of the IP21/
IP54 unit, or by removing the covers of the IP00 unit.
4.1.18 Electrical Installation, Control
Terminals

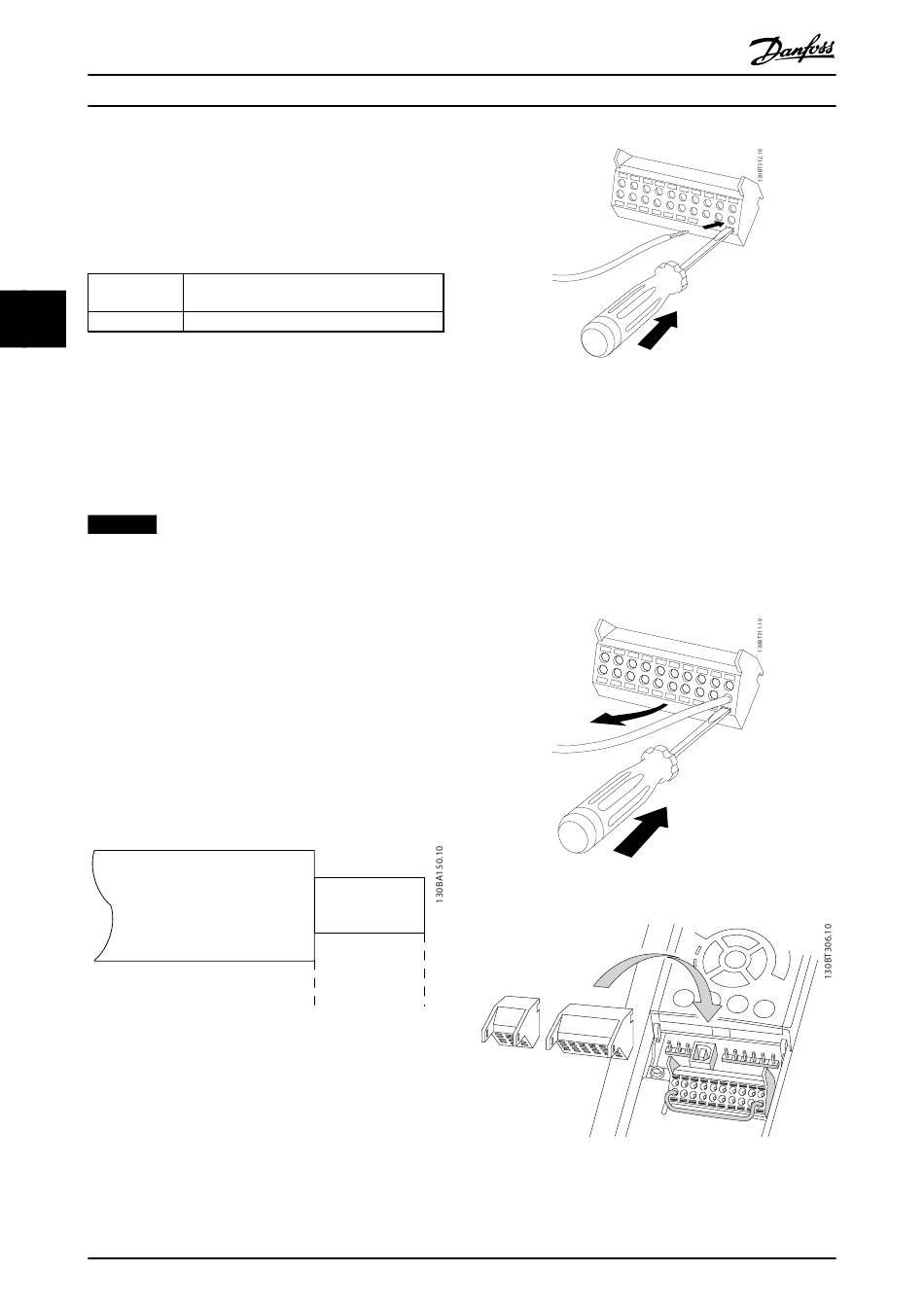

To connect the cable to the terminal:
1. Strip the insulation by about 9–10 mm
Illustration 4.16 Stripping of Insulation
2.
Insert a screwdriver
3. Insert the cable in the adjacent circular hole.
42
Operating Instructions
Function
24 V external DC supply
9 - 10 mm
(0.37 in)
1)
in the square hole.
Danfoss A/S © Rev. 06/2014 All rights reserved.
Illustration 4.17 Inserting Cable
4. Remove the screwdriver. The cable is now
mounted in the terminal.
1) Maximum 0.4x2.5 mm
To remove the cable from the terminal:
1. 1)
Insert a screwdriver
2. Pull out the cable.
1) Max. 0.4x2.5 mm
Illustration 4.18 Removing Cable
Illustration 4.19 Unplugging Control Terminals
in the square hole.
