5 How to operate the frequency converter

The frequency converter can be operated in 3 ways:
1. Graphical Local Control Panel (GLCP), see 6.1.2
2. Numeric Local Control Panel (NLCP), see 6.1.3
3. RS-485 serial communication or USB, both for PC
connection, see 6.1.4
If the frequency converter is fitted with fieldbus option,
refer to relevant documentation.

5.1.1 How to operate graphical LCP (GLCP)

The following instructions are valid for the GLCP (LCP 102).
The GLCP is divided into 4 functional groups:
1. Graphical display with Status lines.
2. Menu keys and indicator lights (LED's) - selecting
mode, changing parameters and switching
between display functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
Graphical display:
The LCD-display is back-lit with a total of 6 alpha-numeric
lines. All data is displayed on the LCP which can show up
to five operating variables while in [Status] mode.
Display lines:
a. Status line: Status messages displaying icons and
graphics.
b. Line 1-2: Operator data lines displaying data and
variables defined or chosen by the user. By
pressing the [Status] key, up to one extra line can
be added.
c. Status line: Status messages displaying text.
The display is divided into 3 sections:
Top section (a)
shows the status when in status mode or up to 2 variables
when not in status mode and in the case of Alarm/
Warning.
MG20Y202
Operating Instructions
1
2
On
3
Warn.
Alarm
4

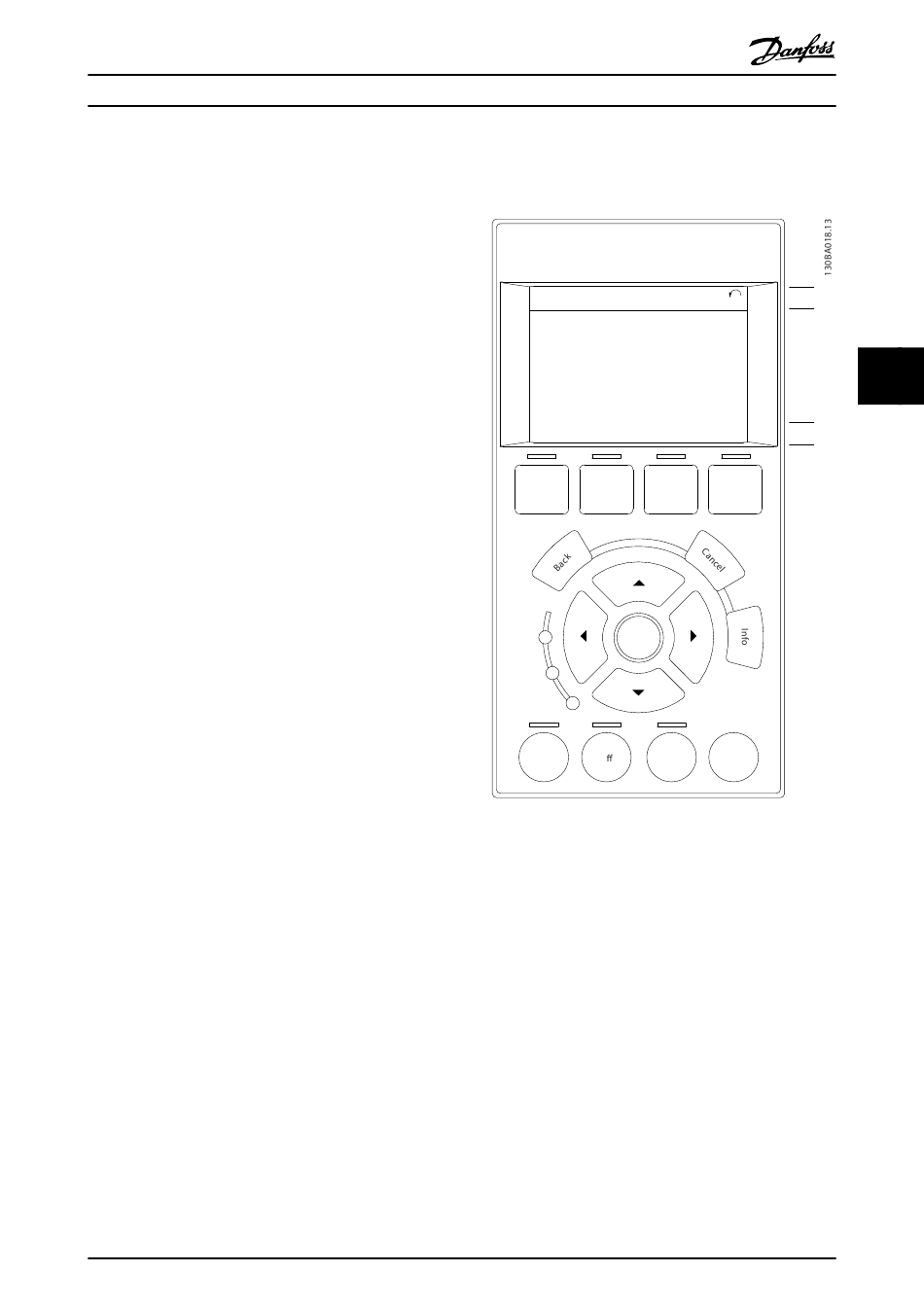

Illustration 5.1 LCP
The number of the Active Set-up (selected as the Active
Set-up in 0-10 Active Set-up) is shown. When programming
in another Set-up than the Active Set-up, the number of
the Set-up being programmed appears to the right in
brackets.
Middle section (b)
shows up to 5 variables with related unit, regardless of
status. In case of alarm/warning, the warning is shown
instead of the variables.
It is possible to toggle between three status read-out
displays by pressing the [Status] key.
Operating variables with different formatting are shown in
each status screen - see below.
Several values or measurements can be linked to each of
the displayed operating variables. The values /
measurements to be displayed can be defined via
Danfoss A/S © Rev. 06/2014 All rights reserved.
Status
1234rpm 10,4A 43,5Hz
43,5Hz
Run OK
Quick Main
Status
Menu Menu
OK
Hand Auto
O
on on
a
1(0)
5
b
c
Alarm
Log
Reset
51
5
