3.2.4 Terminal Locations, F8-F14
The F enclosures are available in 7 different sizes, F8, F9, F10, F11, F12, F13, and F14. The F8, F10, F12, and F14 consist of an
inverter cabinet on the right and rectifier cabinet on the left. The F9, F11 and F13 have an additional options cabinet left of
the rectifier cabinet. The F9 is an F8 with an additional options cabinet. The F11 is an F10 with an additional options
3 3 cabinet. The F13 is an F12 with an additional options cabinet.

3.2.4.1 Inverter and Rectifier, Enclosure Sizes F8 and F9

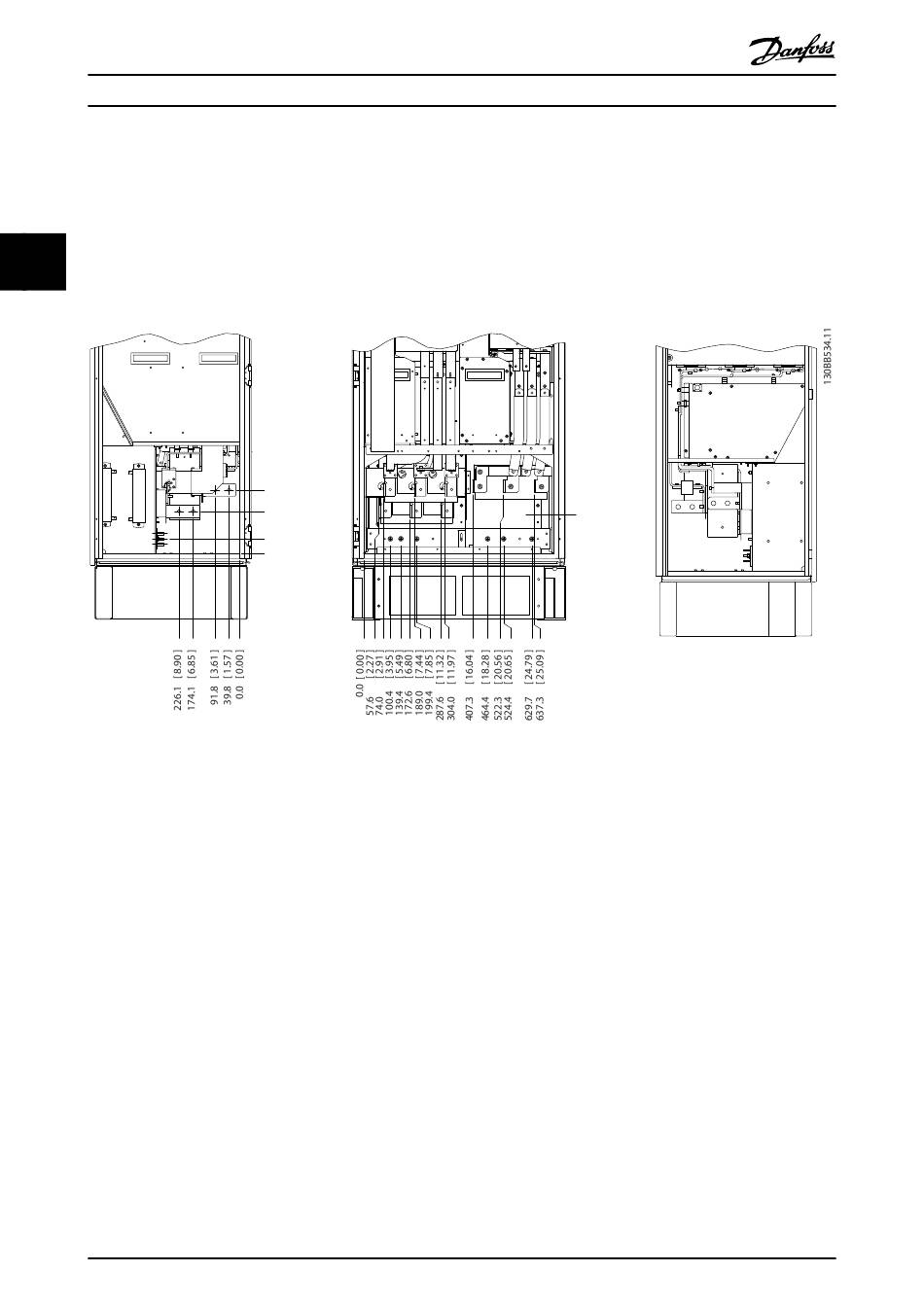

Illustration 3.11 Terminal Locations - Left, Front and Right Views. The gland plate is 42 mm below .0 level.
1) Ground bar
16
1
239.6 [ 9.43 ]
160.0 [ 6.30 ]
56.6 [ 2.23 ]
0.0 [ 0.00 ]
Danfoss A/S © Rev. 06/2014 All rights reserved.
Operating Instructions
2
U/T1 96 V/T2 97
R2/L12 91-1 S2/L22 92-1 T2/L32 93-1
R1/L11 91 S1/L21 92 T1/L31 93
W/T3 98
4
3
MG20Y202
