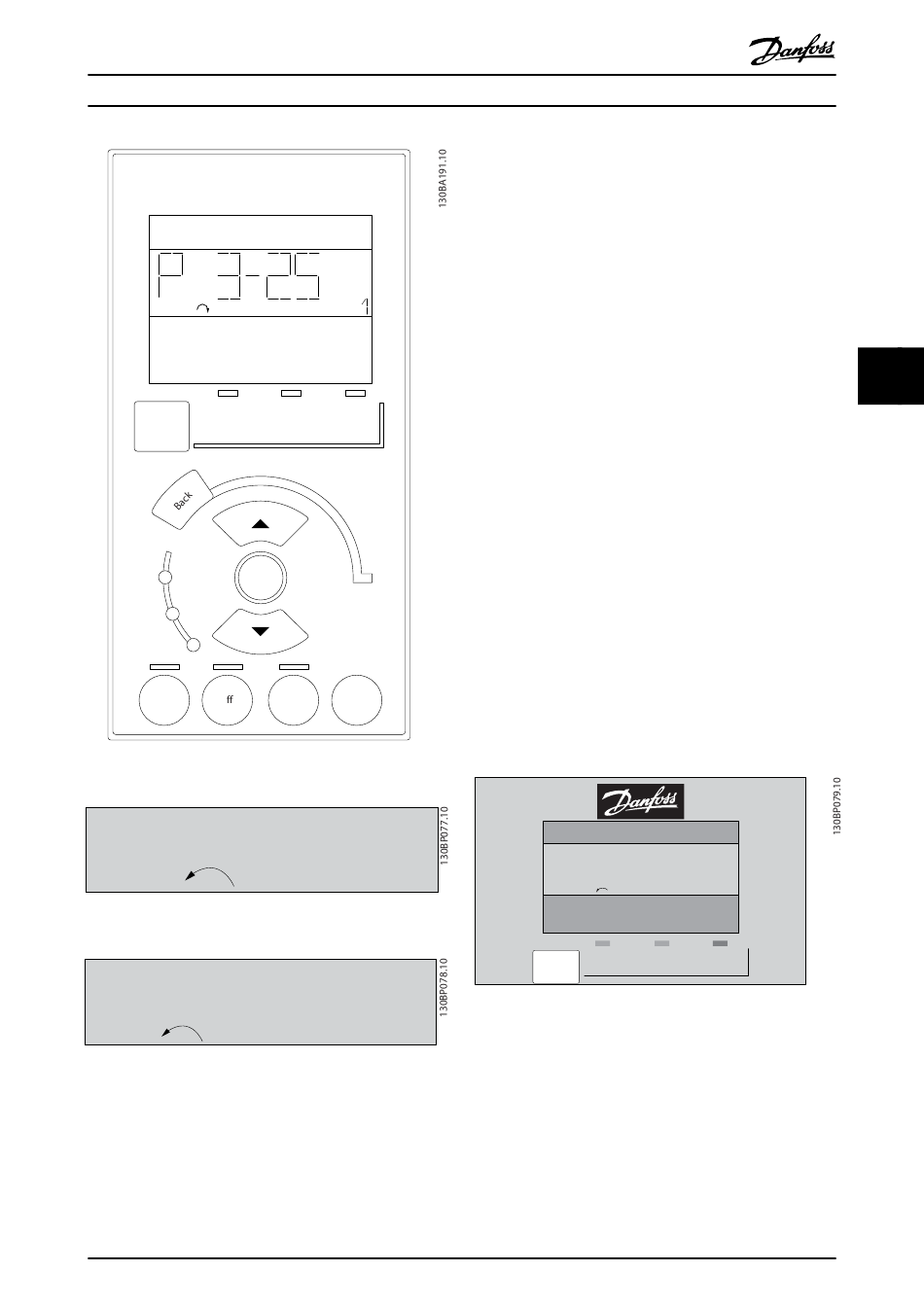

Illustration 5.10 Numerical LCP (NLCP)
22.8
Illustration 5.11 Status display example
A 17
Illustration 5.12 Alarm display example
Indicator lights (LEDs):
•
Green LED/On: Indicates if control section is on.
•
Yellow LED/Wrn.: Indicates a warning.
•
Flashing red LED/Alarm: Indicates an alarm.
MG20Y202
Operating Instructions
Setup
Quick
Main
Setup Menu
Auto
Reset
on
rpm
Setup 1
Setup 1
Danfoss A/S © Rev. 06/2014 All rights reserved.
Menu key
Select one of the following modes:
•
Status
•
Quick Setup
•
Main Menu
Main Menu
is used for programming all parameters.
The parameters can be accessed immediately unless a
password has been created via 0-60 Main Menu Password,
0-61 Access to Main Menu w/o Password, 0-65 Personal Menu
Password or 0-66 Access to Personal Menu w/o Password.
Quick Setup is used to set up the frequency converter
using only the most essential parameters.
The parameter values can be changed using the up/down
arrows when the value is flashing.
Select Main Menu by pressing the [Menu] key a number of
times until the Main Menu LED is lit.
Select the parameter group [xx-__] and press [OK]
Select the parameter [__-xx] and press [OK]
If the parameter is an array parameter select the array
number and press [OK]
Select the wanted data value and press [OK]
Navigation keys
[Back]
for stepping backwards
▲ ▼
[ ] [ ]
keys are used for manoeuvring between parameter groups,
parameters and within parameters
[OK]
is used for choosing a parameter marked by the cursor
and for enabling the change of a parameter.
P 2-03
Status Quick
Menu
Setup
Illustration 5.13 Display example
Operation keys
Keys for local control are found at the bottom of the
control panel.
5
Setup 1
Main
Menu
55
